Pub. 42004-716L2C
Model 12579-003 Monitored Relay Module
Page
7 of 16
f:\standard ioms - current release\42004 instr. manuals\42004-716l2c.doc
05/12
Mode 1: IDC Line Supervision Multiple Switch
In this mode any number of normally-open dry contact closures may be installed on the line. The loop is
monitored for ground faults and open circuits in Mode 1. The end-of-line device is a 20 k
, 5% tolerance
resistor.

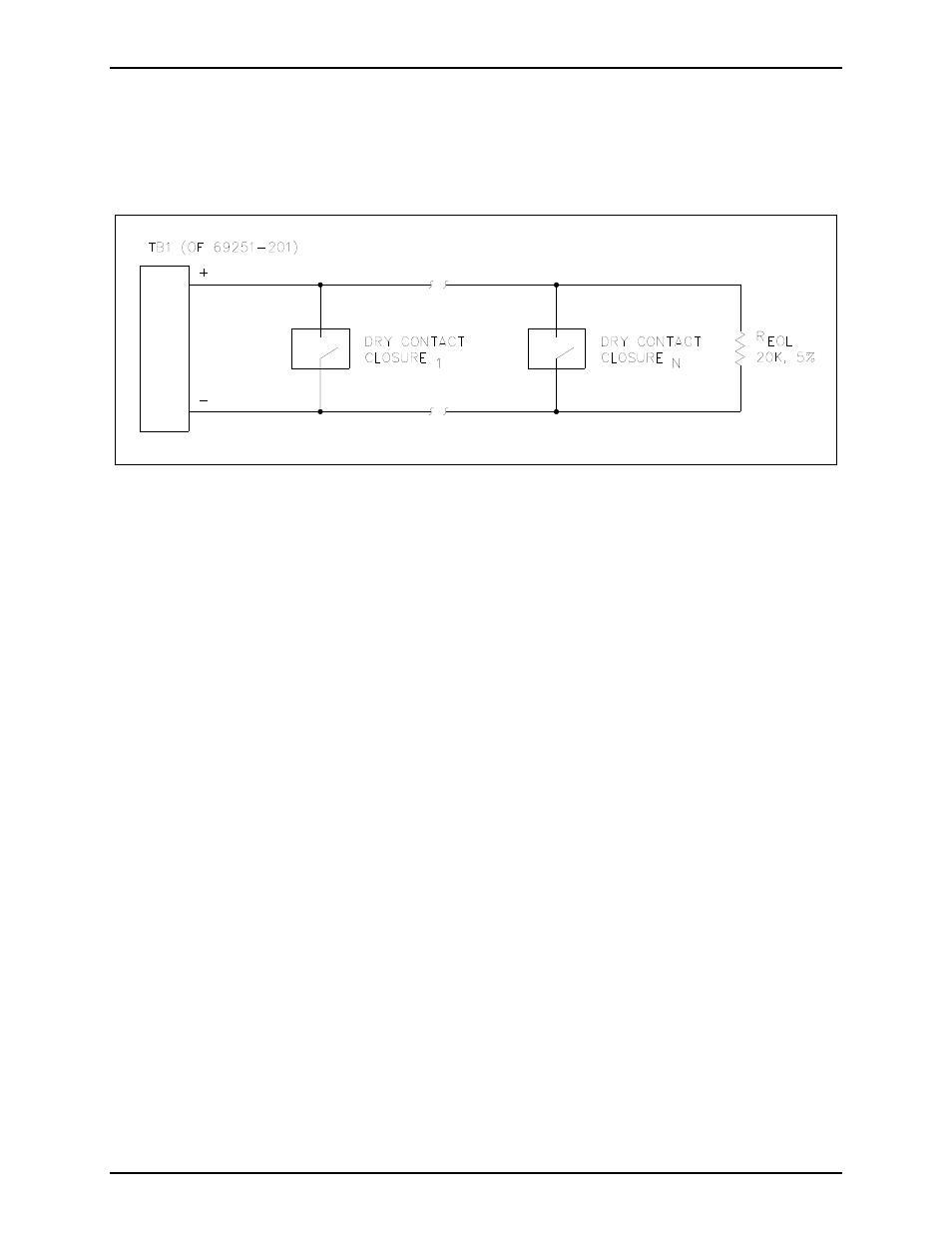

Figure 5. IDC Line Supervision Multiple Switch
N
OTE
: The 20 k
, 5% tolerance resistor is not included with the MRM. The resistor is included in a kit
(12509-004), which must be ordered separately.
