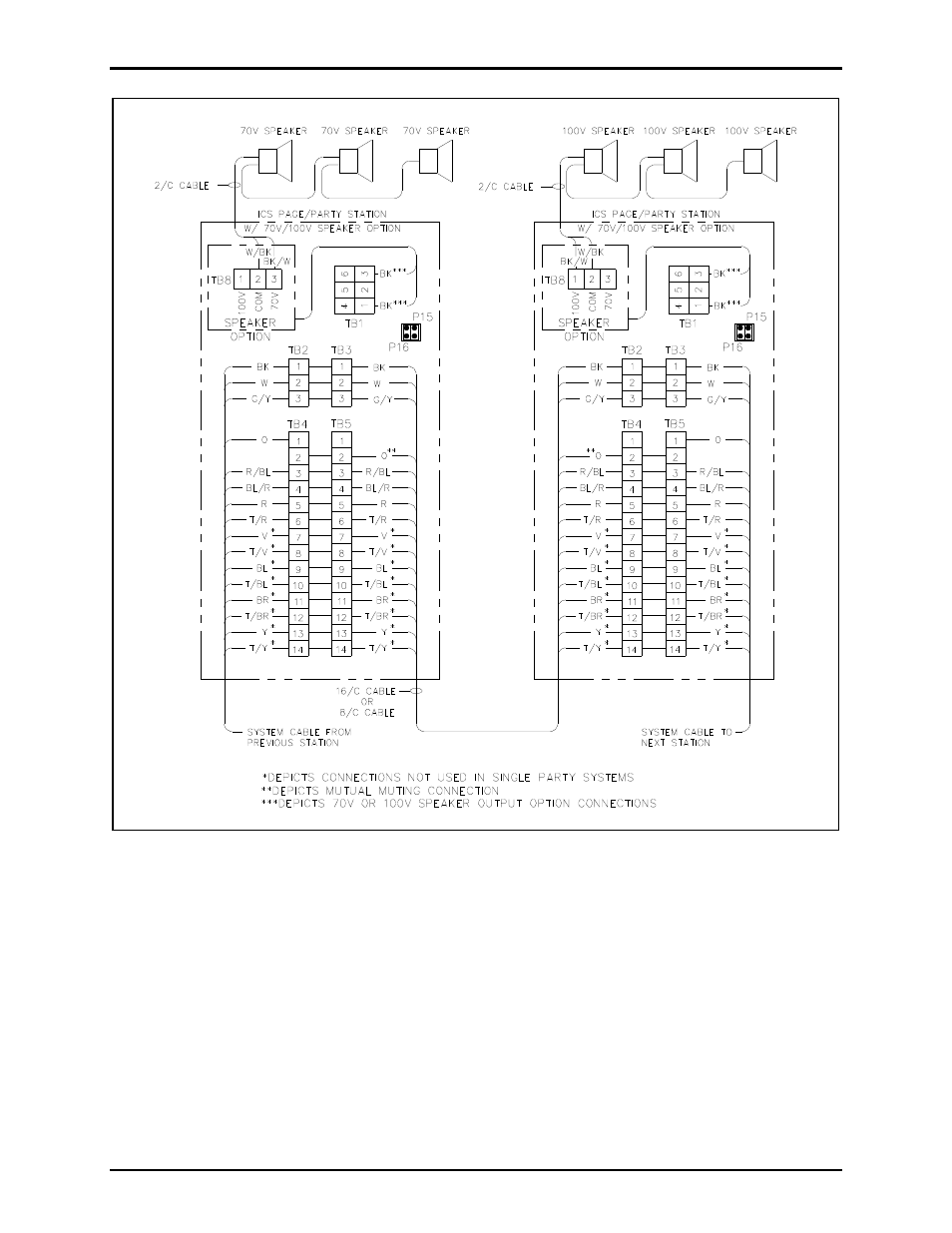

Figure 5. 70V/100V Speaker Connections
Attaching the Front Panel
After all adjustments have been completed, place the front cover in the rear enclosure, being careful not to
pinch any cables. Secure the front cover using the four screws and washers provided. Torque the screws
to 50 in-lbs (5.65 n-m).
