FRAME ASSEMBLY
NOTE:
- THE FOLLOWING MACHINES USE
THIS WEIGHT PLATE ARRANGEMENT:
- RS-1101, SEATED DIP
- RS-1102, BICEPS CURL
- RS-1201, PULLDOWN
- RS-1203, SEATED MID-ROW
- RS-1301, CHEST PRESS
- RS-1601, AB
CIRCUIT WEIGHT STACK #2
OWNER'S MANUAL
ROC-IT WEIGHT CAGE ASSEMBLY PAGE 10

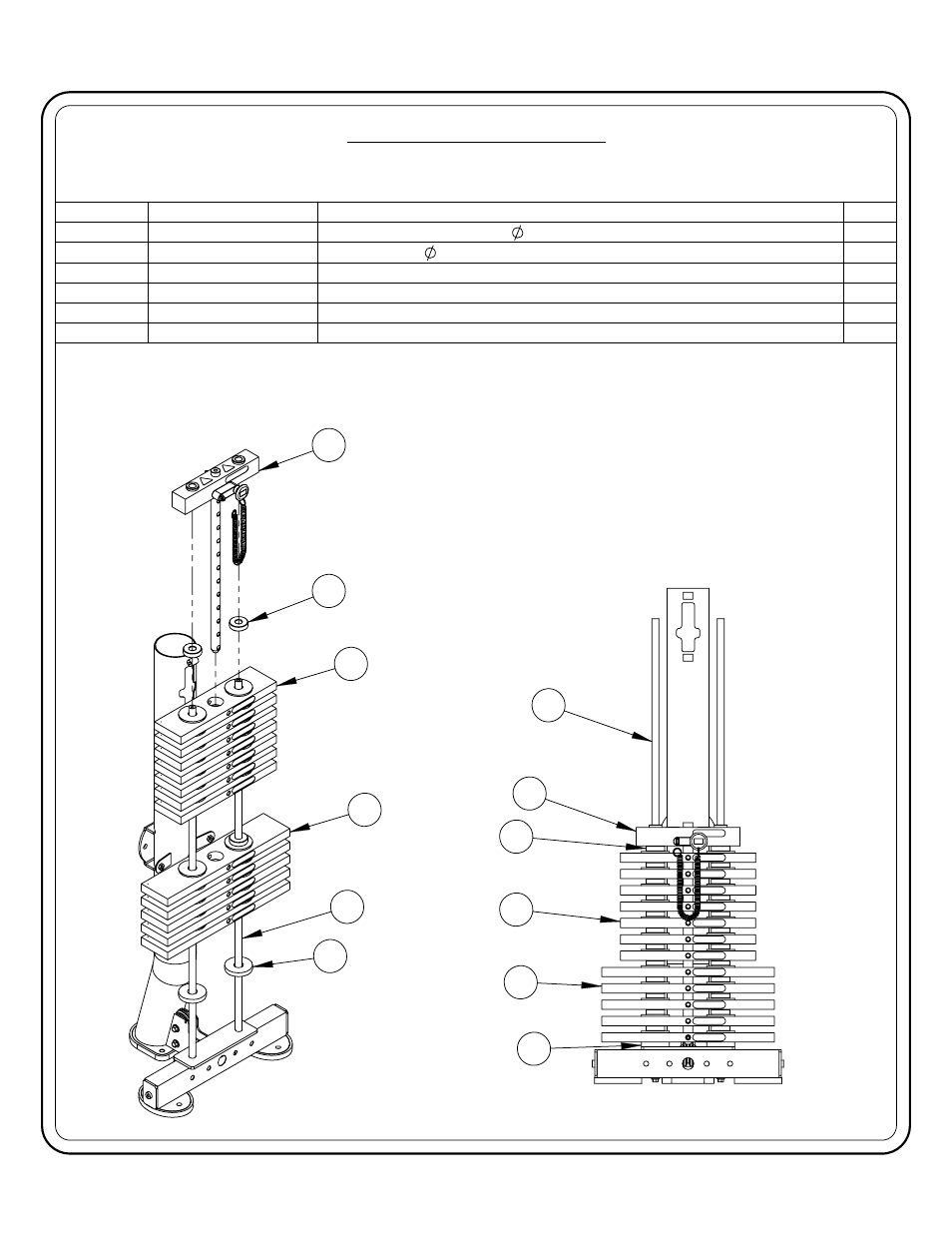

ASSEMBLY FRONT VIEW
16
18
20
21
5
6
6
20
21
18
16
5
ITEM NO. PART NUMBER DESCRIPTION QTY.
5 019-0001006 THICK RUBBER DONUT 3.00" X .50" BLACK 2
6 026-01G0193 GUIDE ROD .750" X 49.078" LG. 2
16 026-01X2873 15 LB TOP WEIGHT PLATE ASSEMBLY 1
18 026-01PL0348 WEIGHT PLATE SPACER .563" THICK 24
20 026-01W0312 15 LB INTERMEDIATE WEIGHT PLATE 7
21 026-01W0315 20 LB INTERMEDIATE WEIGHT PLATE 5
