Hoist Fitness ROC-IT WEIGHT CAGE - Manual (Page 13)

FRAME ASSEMBLY
NOTE:
* PART FOUND IN MACHINE BOX.
- THE FOLLOWING MACHINES USE
THIS WEIGHT PLATE ARRANGEMENT:
- RS-1302, PEC FLY
- RS-1401, LEG EXTENSION
PAGE 12
OWNER'S MANUAL
ROC-IT WEIGHT CAGE ASSEMBLY

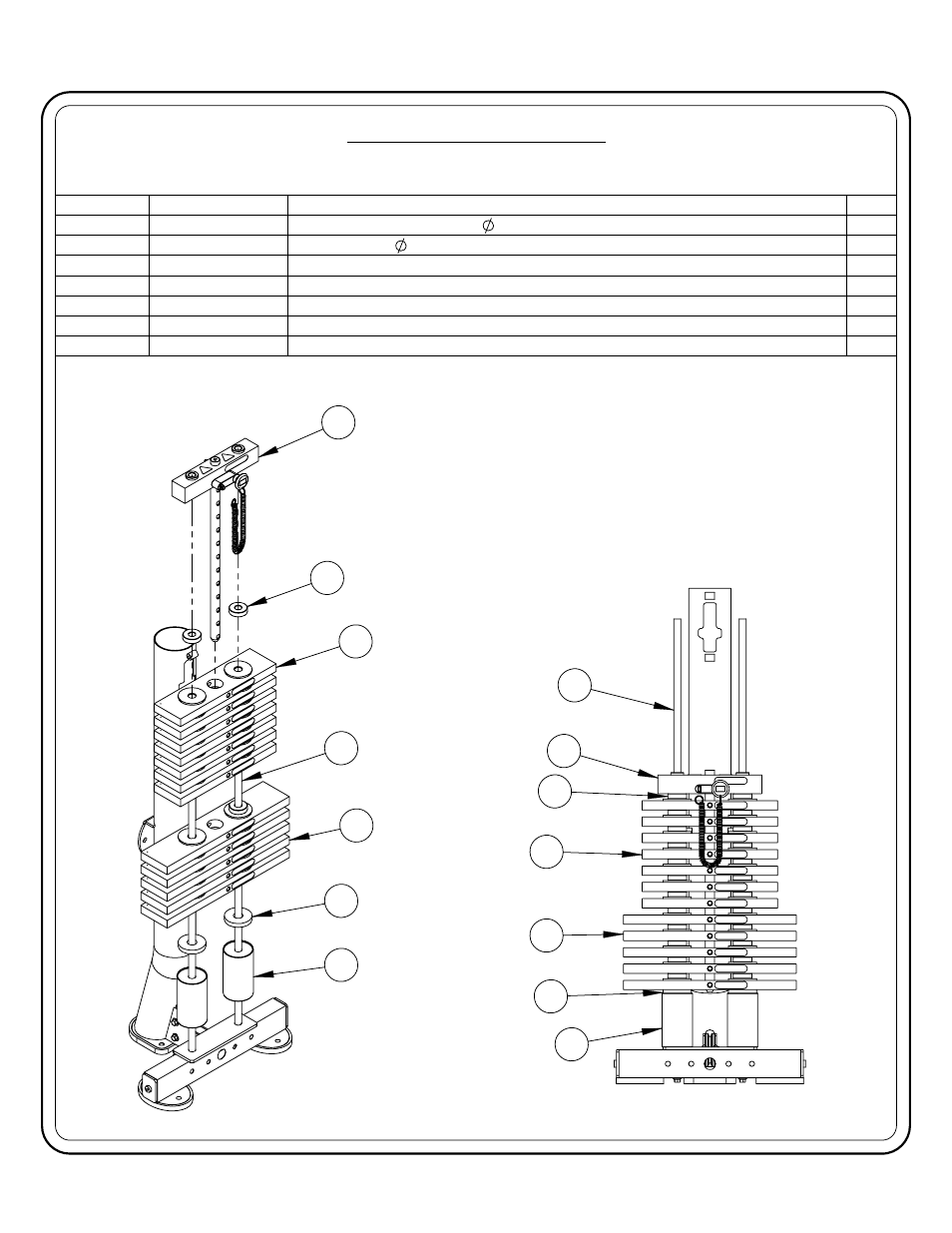

CIRCUIT WEIGHT STACK #2 WITH STAND OFFS
ITEM NO. PART NUMBER DESCRIPTION QTY.
5 019-0001006 THICK RUBBER DONUT 3.00" X .50" BLACK 2
6 026-01G0193 GUIDE ROD .750" X 49.078" LG. 2
8* 026-01PL0369 WEIGHT STAND OFF 2
16 026-01X2873 15 LB TOP WEIGHT PLATE ASSEMBLY 1
18 026-01PL0348 WEIGHT PLATE SPACER .563" THICK 24
20 026-01W0312 15 LB INTERMEDIATE WEIGHT PLATE 7
21 026-01W0315 20 LB INTERMEDIATE WEIGHT PLATE 5
8*
20
21
16
18
5
6
ASSEMBLY FRONT VIEW
8*
5
21
20
16
6
18
