FRAME ASSEMBLY

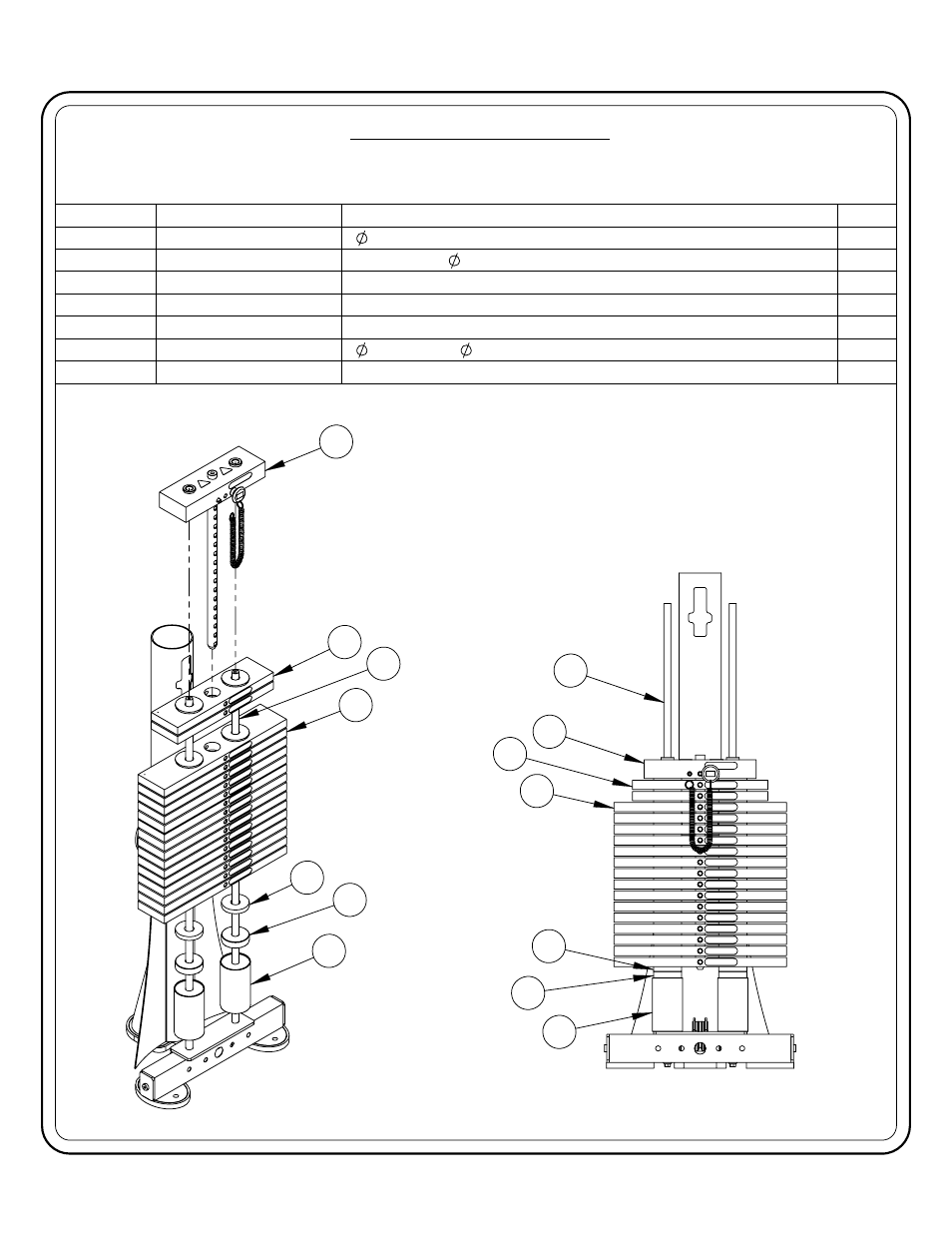

COMPETITION WEIGHT STACK #4 WITH STAND OFFS
OWNER'S MANUAL
PAGE 16 ROC-IT WEIGHT CAGE ASSEMBLY
8*
5
22
21
6
53
ASSEMBLY FRONT VIEW
20
NOTE:
* PART FOUND IN MACHINE BOX.
- THE FOLLOWING MACHINES USE
THIS WEIGHT PLATE ARRANGEMENT:
- RS-1402, LEG CURL
ITEM NO. PART NUMBER DESCRIPTION QTY.
5 019-0001006 3.00" X .50" THICK RUBBER DONUT BLACK 2
6 026-01G0193 GUIDE ROD .750" X 49.078" LG. 2
8* 026-01PL0369 WEIGHT STAND OFF 2
20 026-01W0312 15 LB INTERMEDIATE WEIGHT PLATE 2
21 026-01W0315 20 LB INTERMEDIATE WEIGHT PLATE 15
22 026-01PL2176 3.00" OD X .781" ID X .813" THICK SPACER 2
53 026-01X3141 30 LB TOP WEIGHT PLATE ASSEMBLY W/ 18 HOLE STEM 1
