Hoist Fitness ROC-IT WEIGHT CAGE - Manual (Page 12)

5
22
21
52
6
20
FRAME ASSEMBLY
COMPETITION WEIGHT STACK #2
OWNER'S MANUAL
PAGE 11 ROC-IT WEIGHT CAGE ASSEMBLY

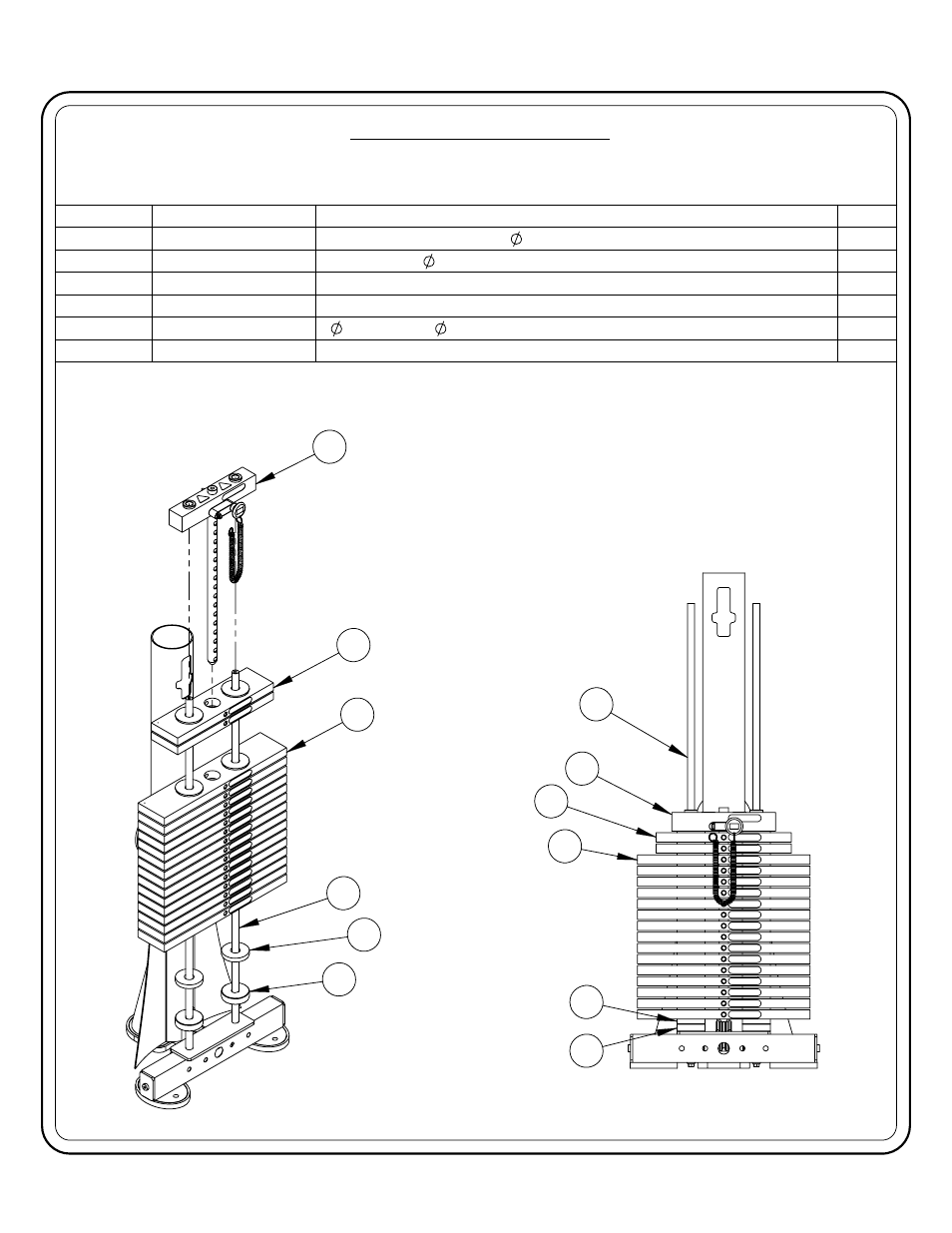

ASSEMBLY FRONT VIEW
ITEM NO. PART NUMBER DESCRIPTION QTY.
5 019-0001006 THICK RUBBER DONUT 3.00" X .50" BLACK 2
6 026-01G0193 GUIDE ROD .750" X 49.078" LG. 2
20 026-01W0312 15 LB INTERMEDIATE WEIGHT PLATE 2
21 026-01W0315 20 LB INTERMEDIATE WEIGHT PLATE 15
22 026-01PL2176 3.00" OD X .781" ID X .813" THICK SPACER 2
52 026-01X3140 15 LB TOP WEIGHT PLATE ASSEMBLY W/ 18 HOLE STEM 1
NOTE:
- THE FOLLOWING MACHINES USE
THIS WEIGHT PLATE ARRANGEMENT:
- RS-1101, SEATED DIP
- RS-1102, BICEPS CURL
- RS-1201, PULLDOWN
- RS-1203, SEATED MID-ROW
- RS-1301, CHEST PRESS
- RS-1601, AB
5
22
6
21
52
20
