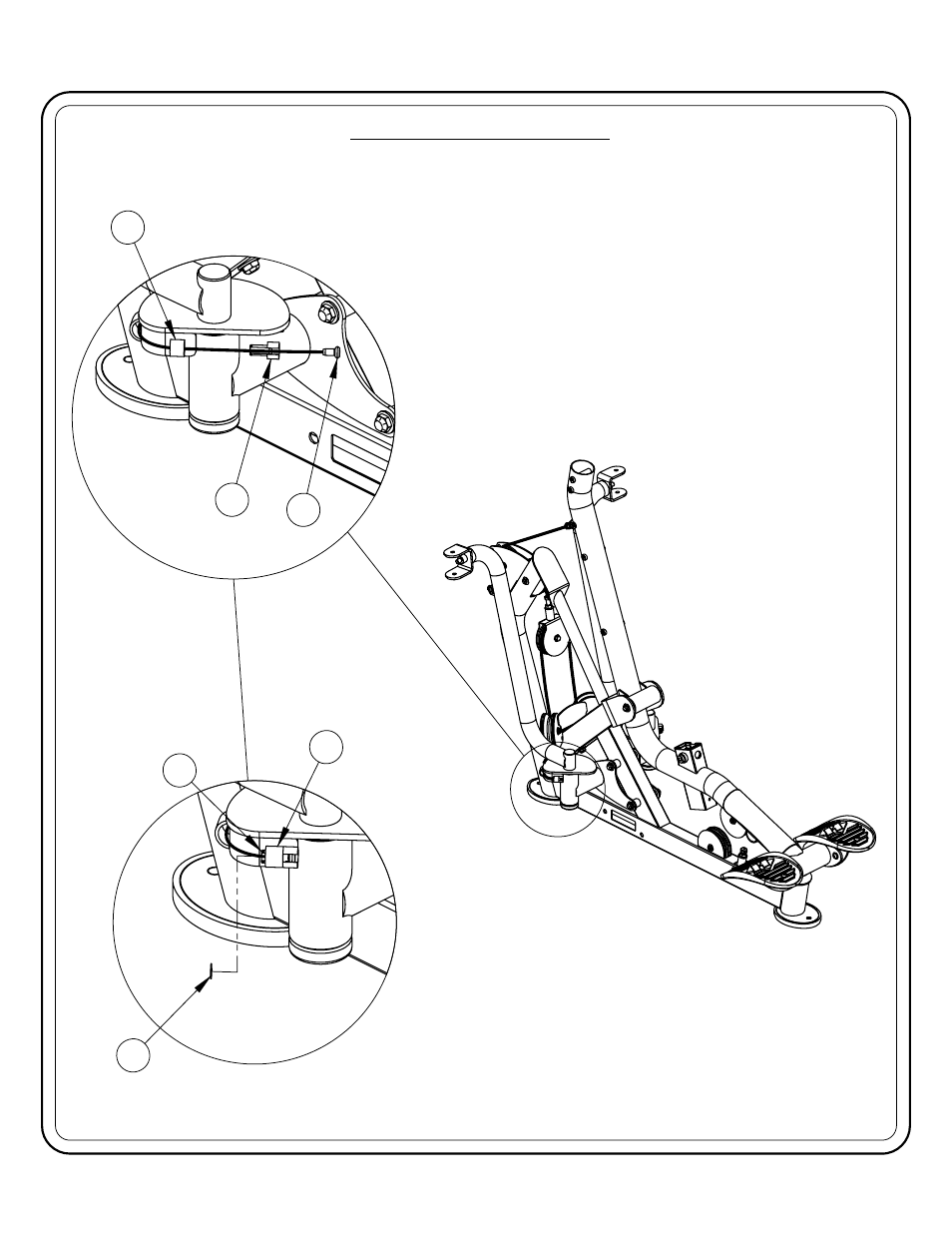

STEP 1
STEP 1:
- FEED CABLE (3) THROUGH ARM
ASSEMBLY (22) AND THROUGH
QUICK RELEASE (40), AS SHOWN.
STEP 2:
- FASTEN QUICK RELEASE THROUGH
ARM ASSEMBLY (22) AND SECURE
WITH CLIP (87).
87
22
40
- SOME PARTS MAY HAVE BEEN REMOVED
- REPEAT ASSEMBLY FOR OPPOSITE SIDE.
FOR CLARITY.
FRAME ASSEMBLY
NOTE:
OWNER'S MANUAL
PAGE 21
RS-1302 ASSEMBLY
