INSTALLATIONS
MI980 User’s Manual
19

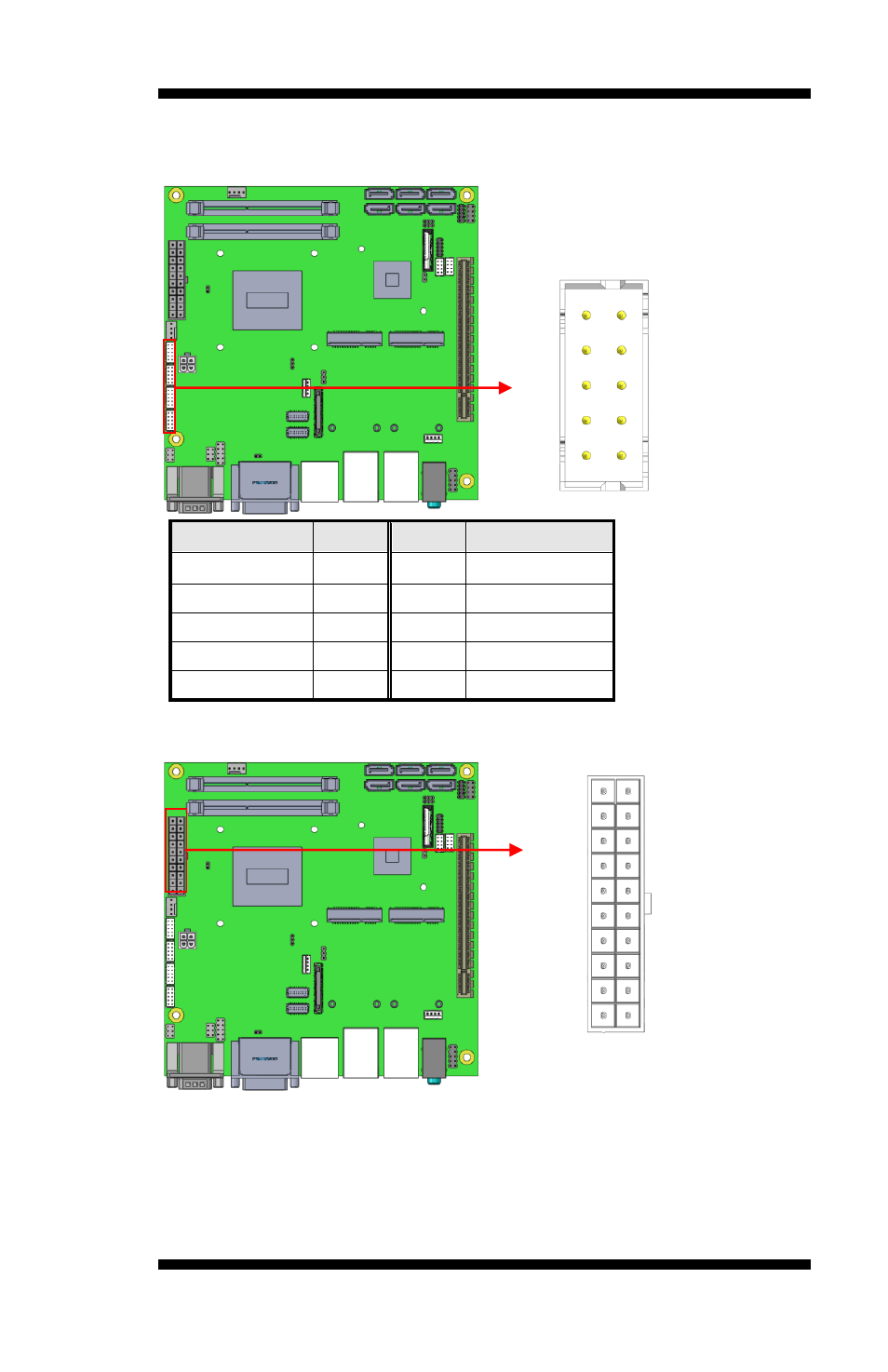

J1, J2, J3, J4: COM6, COM5, COM3, COM4 RS232 Serial Ports
(HIROSE DF11-10DP-2DSA)
Signal Name
Pin #
Pin #
Signal Name
DCD#
1
2
SIN#
SOUT
3
4
DTR#
GND
5
6
DSR#
RTS#
7
8
CTS#
RI#
9
X
KEY
J5: ATX Power Supply Connector
10
2
9
1
20
11
10
1
