INSTALLATIONS
MI980 User’s Manual 23

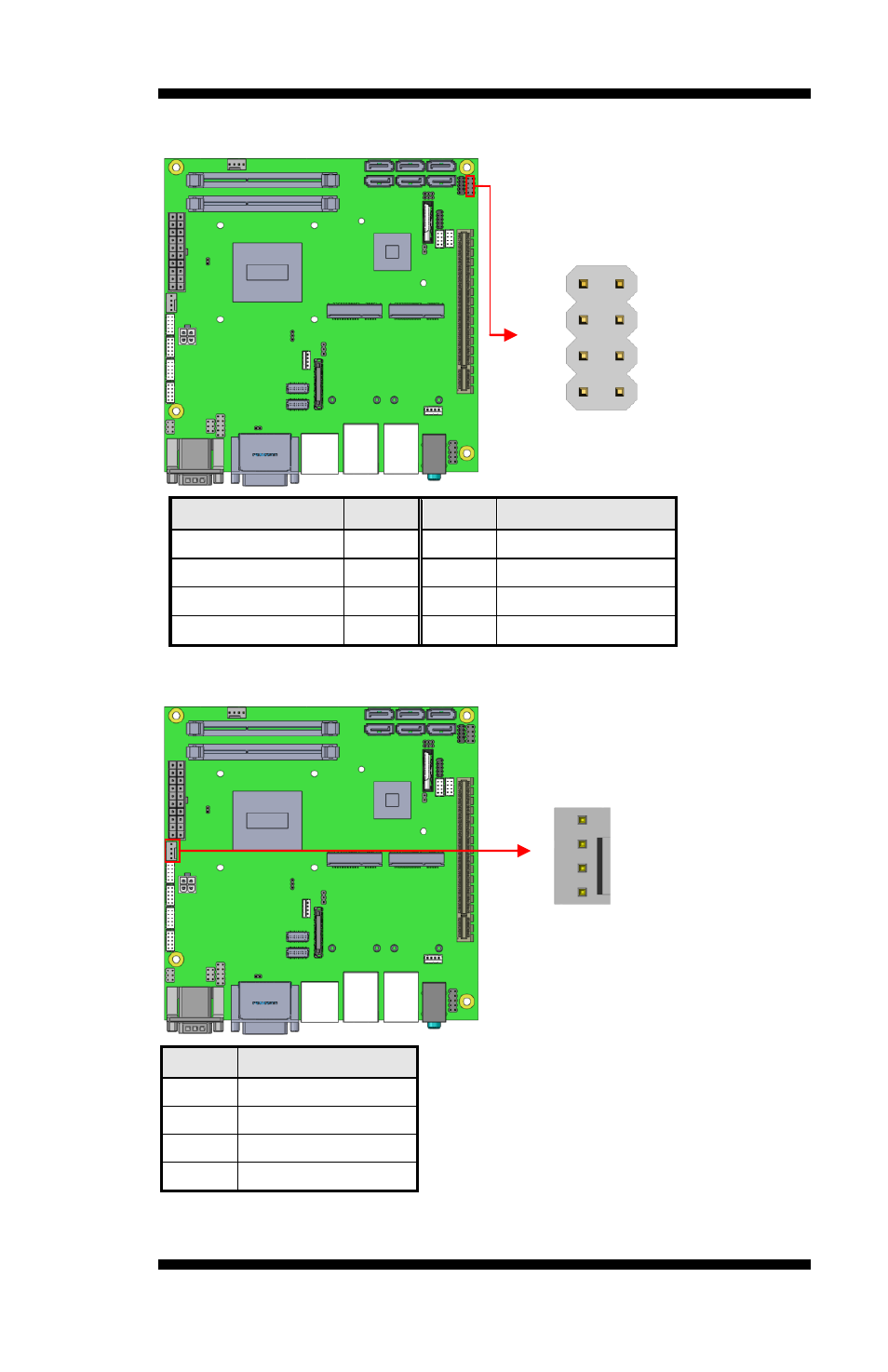

J22: Front Panel
Signal Name Pin # Pin # Signal Name
Power BTN 1 2 Power BTN
HDD LED+ 3 4 HDD LED-
Reset BTN 5 6 Reset BTN
Power LED+ 7 8 Power LED-
CPU_FAN1: CPU Fan Power Connector
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
4 Control
8
2
7
1
4
1
