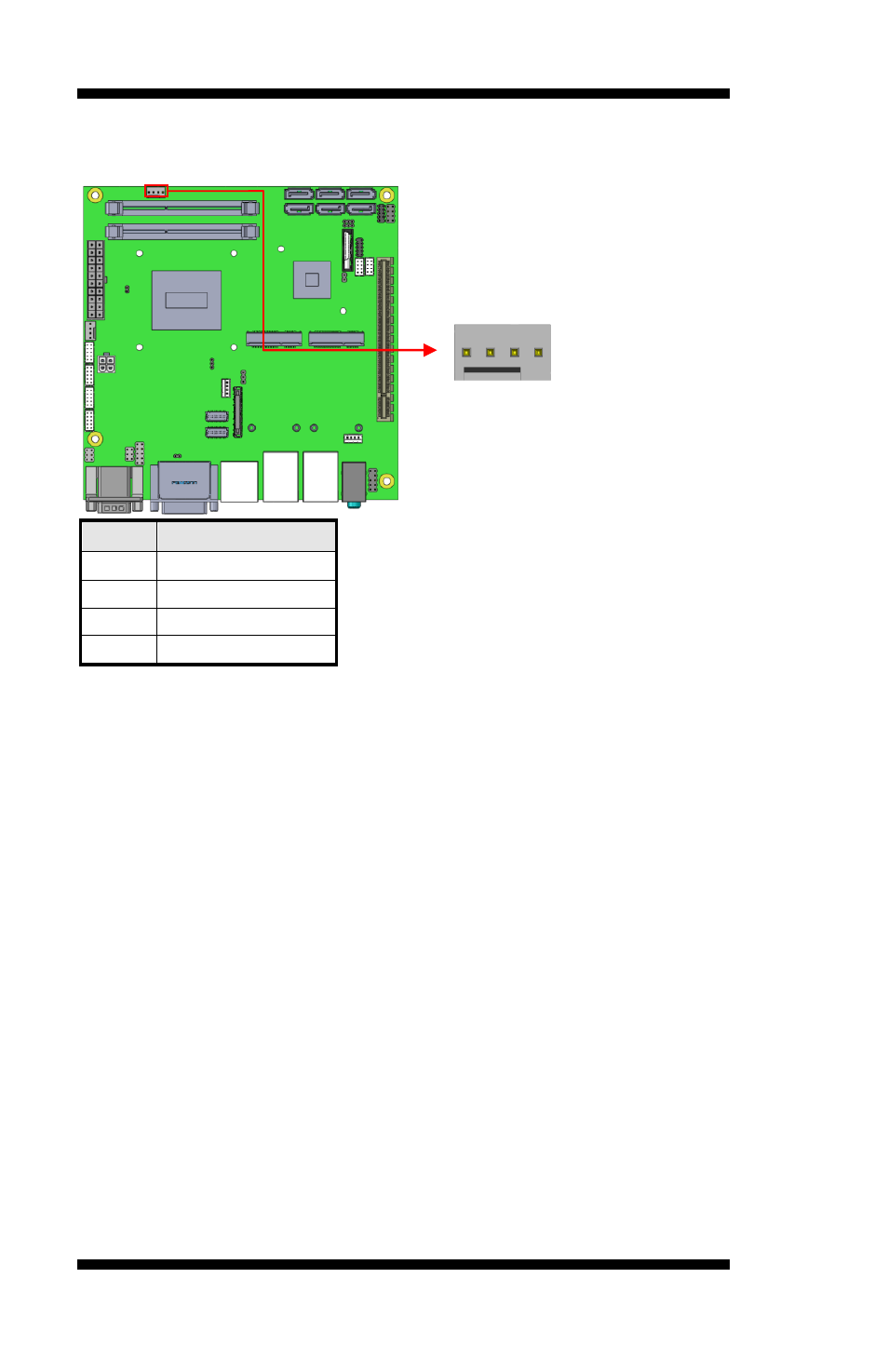

SYS_FAN2: System Fan Power Connector (DC/PWM Auto-Detect)
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
4
Control
J14: Mini PCIE/mSATA (share with CN7) Connector
J15: Mini PCIE Connector
1 4
