INSTALLATIONS

IB898 User’s Manual

9


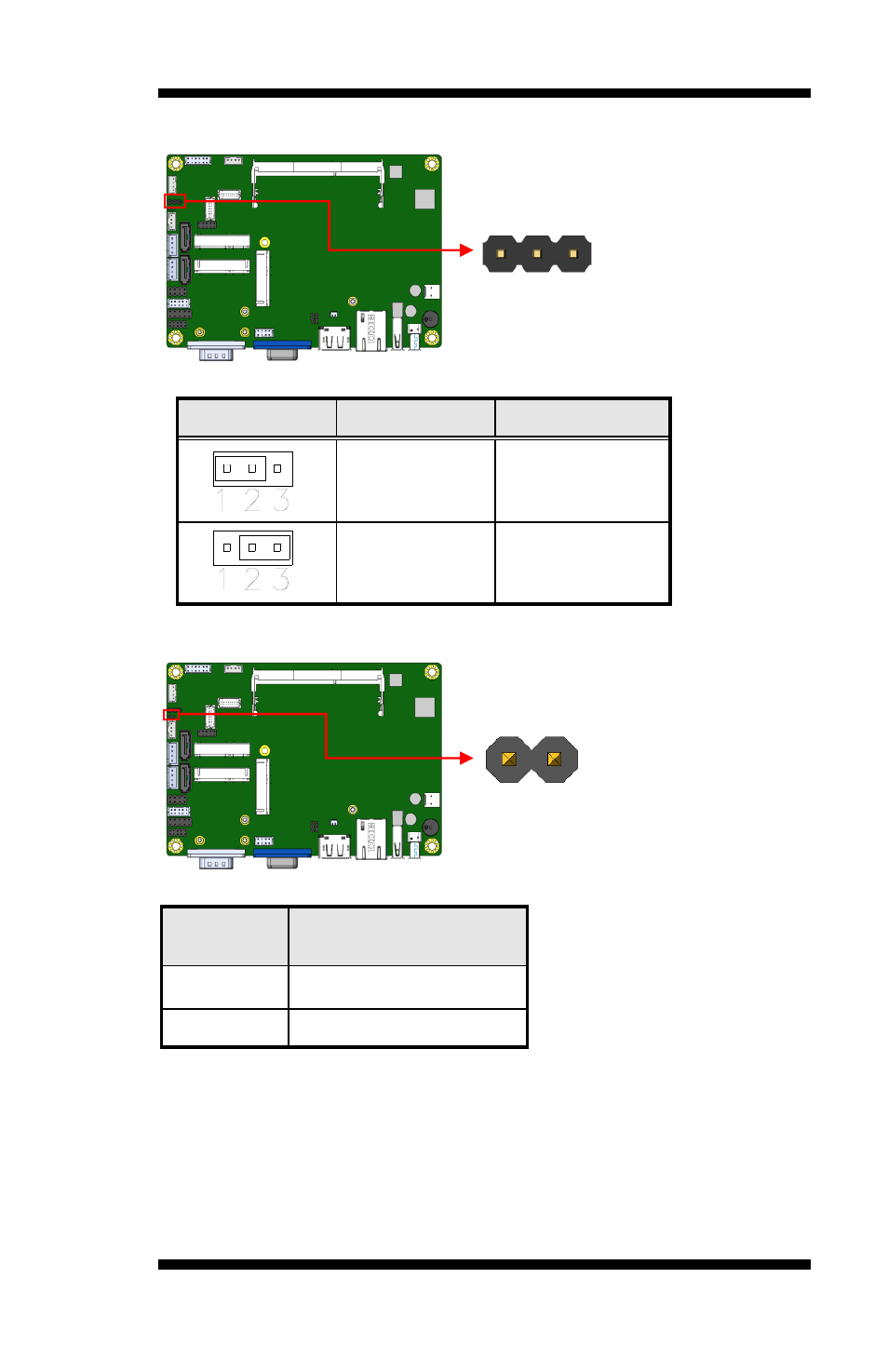

JP1: LVDS Panel Power Selection

JP1

Setting

Panel Voltage

Pin 1-2

Short/Closed

3.3V (default)

Pin 2-3

Short/Closed

5V


JP2: LVDS Panel Brightness Control Selection

JP2

Brightness Control

(PWM mode)

Open

3.3V

Close

5V(Default)


1 3

1 2
