INSTALLATIONS
16
IB898 User’s Manual

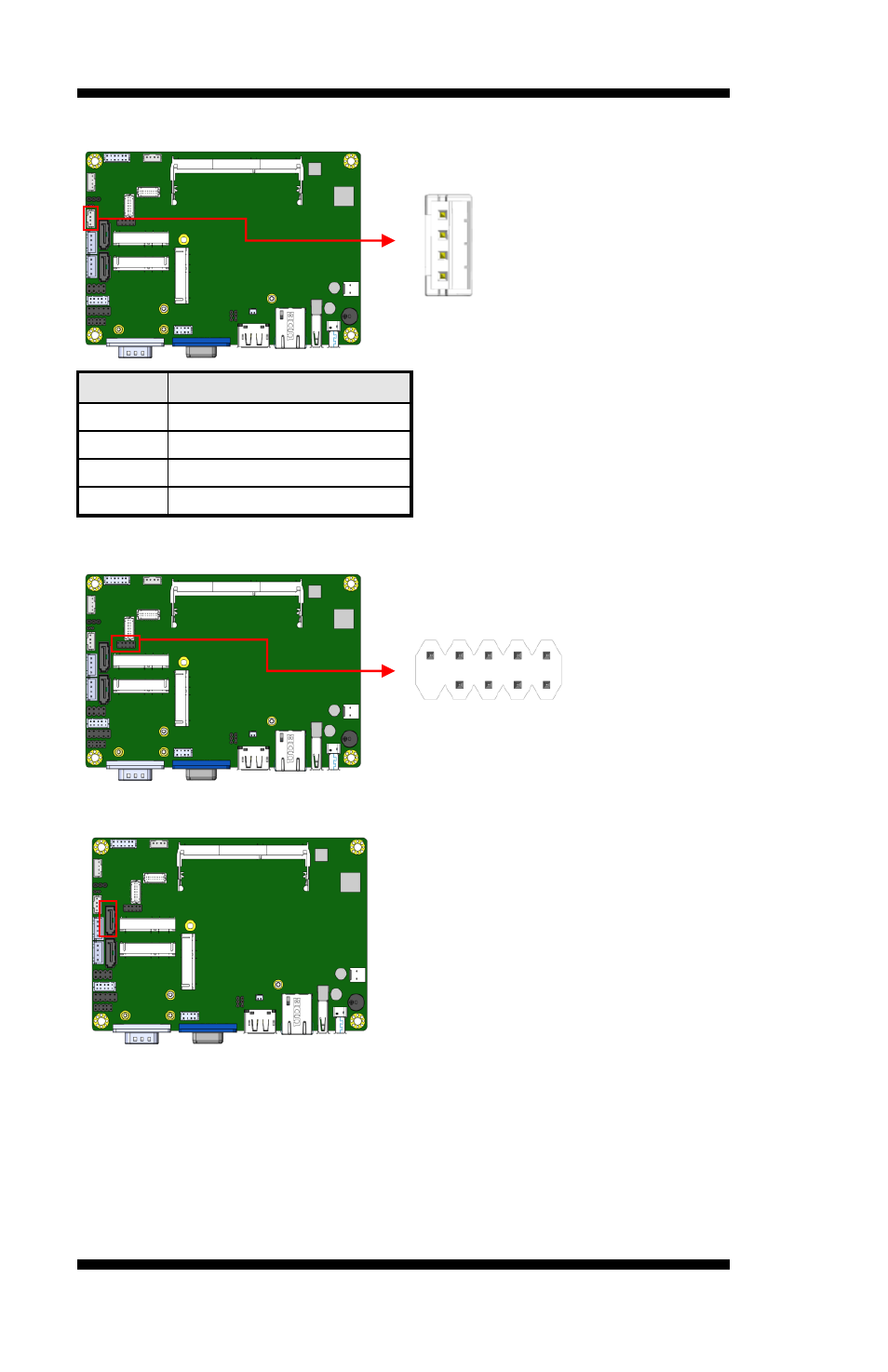

J7: LCD Backlight Connector (JST B4B-PH-K-S )
Pin #
Signal Name
1
+12V(1A)
2
Backlight Enable
3
Brightness Control
4
Ground
J8: SPI Flash Connector (factory use only)
J9: SATAII /share mSATA/ Connectors
4
1
2 10
1 9
