INSTALLATIONS
18
IB898 User’s Manual

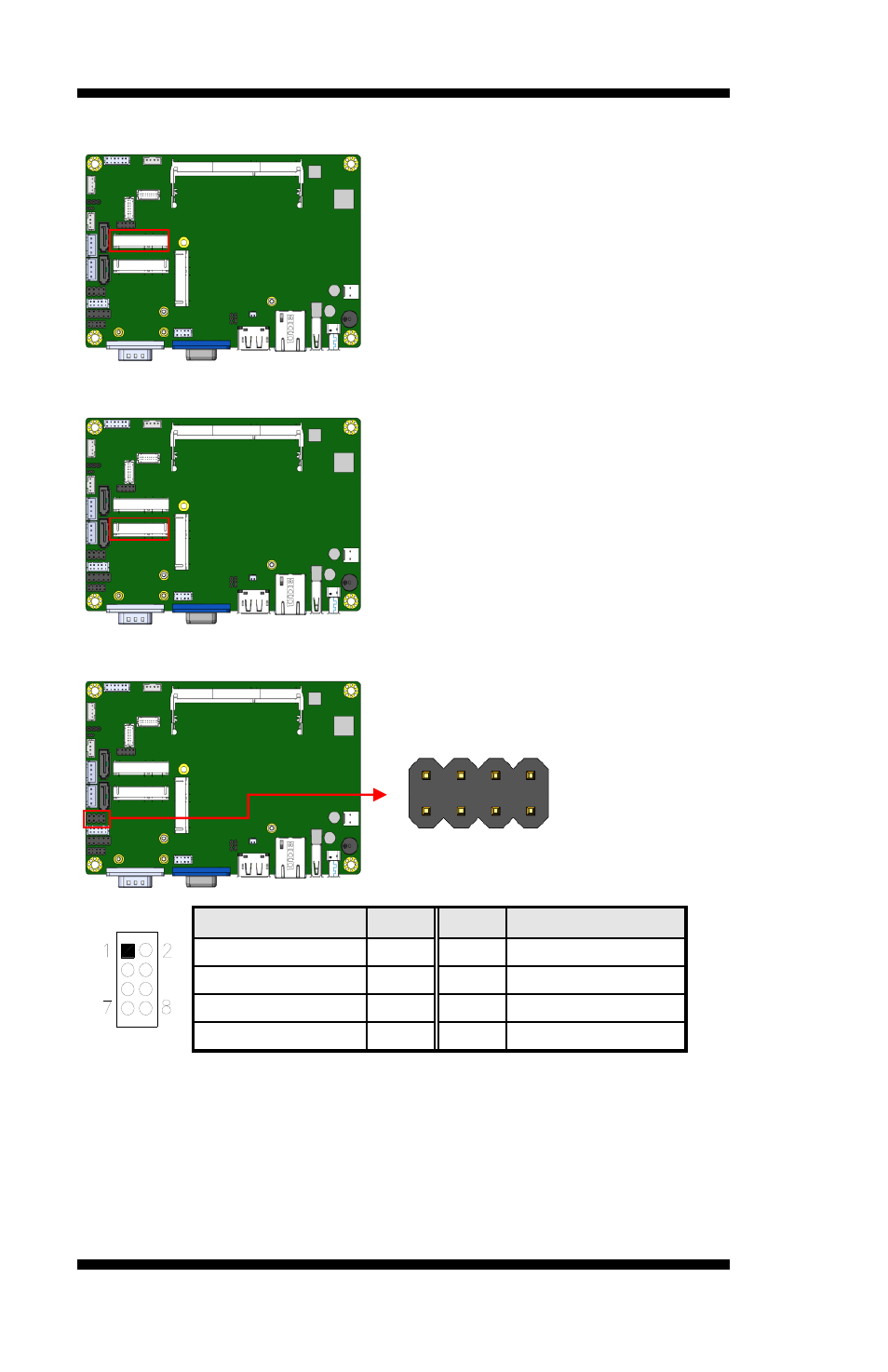

J14: Mini PCIE Connector (share mSATA)
J15: Mini PCIE Connector (Half Size)
J16: Front Panel Function Connector (2.54mm)
Signal Name
Pin # Pin #
Signal Name
Power BTN
1
2
Power BTN
HDD LED+
3
4
HDD LED-
Reset BTN
5
6
Reset BTN
Power LED+
7
8
Power LED-
2 8
1 7
