INSTALLATIONS
IB898 User’s Manual
17

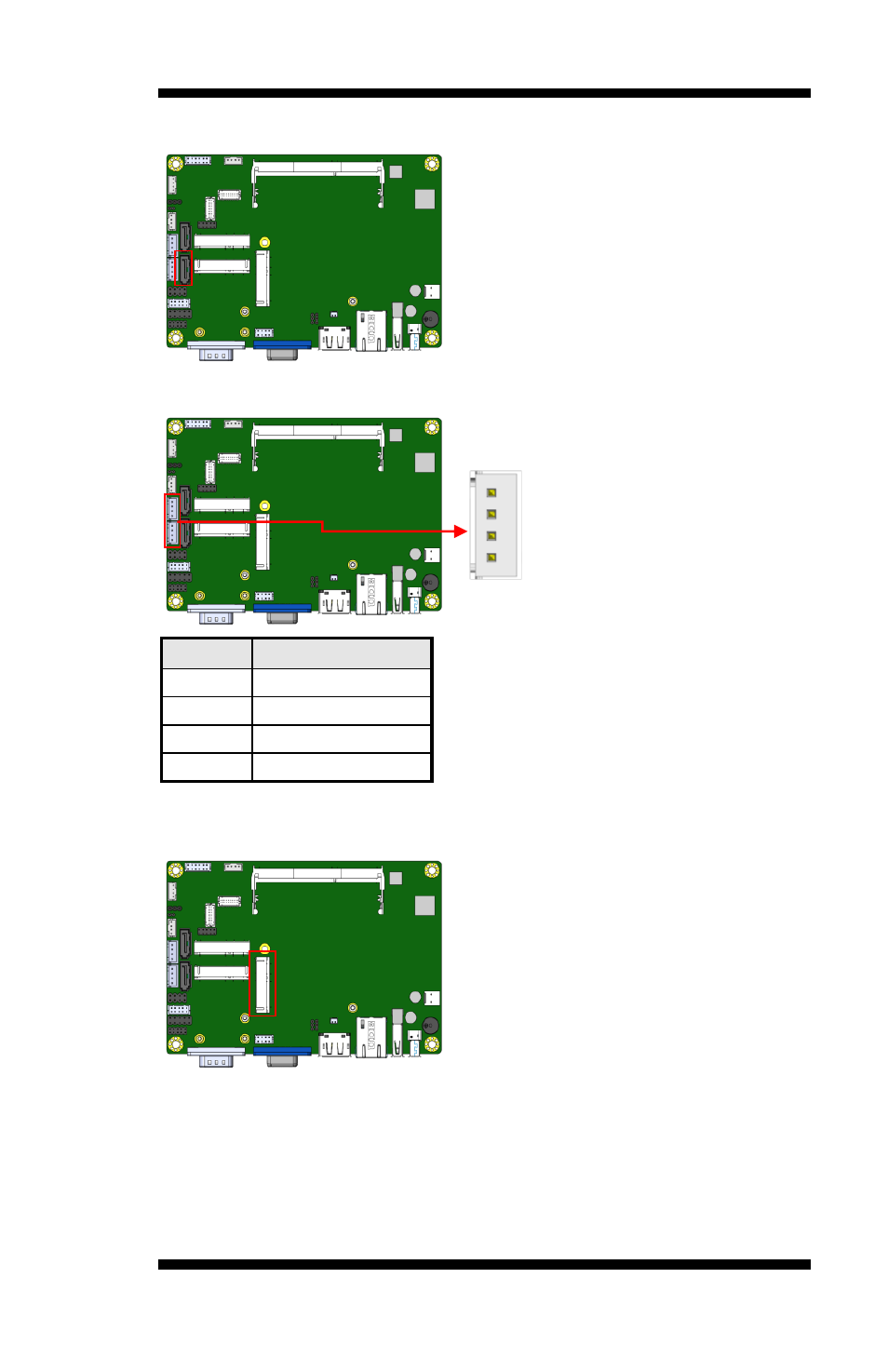

J12: SATAII Connectors
J10, J11: SATA HDD Power Connectors (JST B4B-XH-A)
Pin #
Signal Name
1
+5V(1A)
2
Ground
3
Ground
4
+12V(1A)
** It is recommend to connect with 2.5” storage device only from J10/J11**
J13: Mini PCIE Connector (Full Size)
4
1
