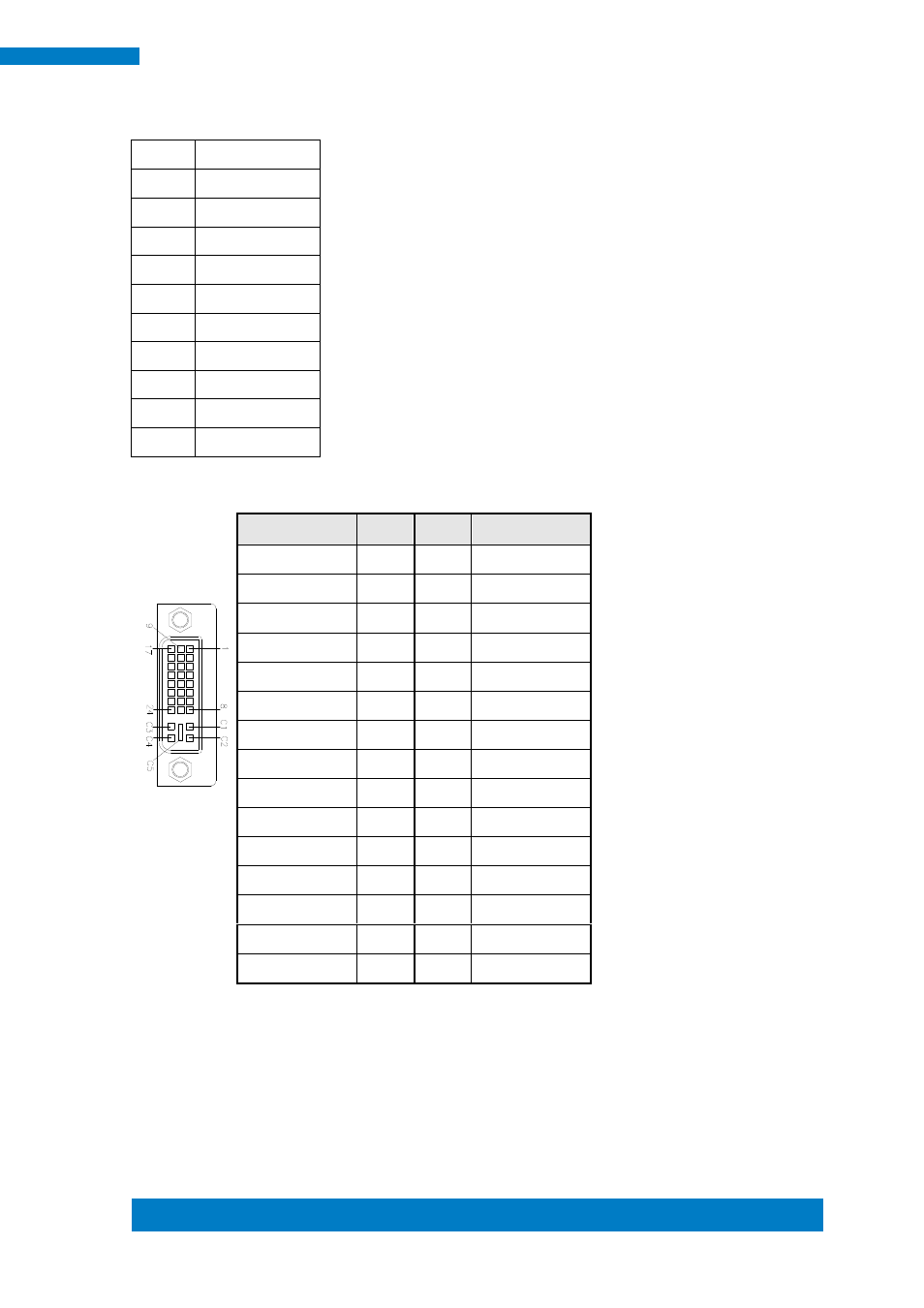

CN7: COM1 Serial Ports
Pin# Signal Name
1 DSR#
2 GND
3 GNS
4 SOUT
5 SIN
6 DCD
7 DTR
8 CTS#
9 RTS#
10 RI#
CN12/CN13: DVI-I Connector
Signal Name Pin # Pin # Signal Name
DATA 2- 1 16 HOT POWER
DATA 2+ 2 17 DATA 0-
Shield 2/4 3 18 DATA 0+
DATA 4- 4 19 SHIELD 0/5
DATA 4+ 5 20 DATA 5-
DDC CLOCK 6 21 DATA 5+
DDC DATA 7 22 SHIELD CLK
N.C 8 23 CLOCK -
DATA 1- 9 24 CLOCK +
DATA 1+ 10 C1 N.C
SHIELD 1/3 11 C2 N.C
DATA 3- 12 C3 N.C
DATA 3+ 13 C4 N.C
DDC POWER 14 C5 A GROUND2
A GROUND 1 15 C6 A GROUND3
