14 SE-92 User Manual

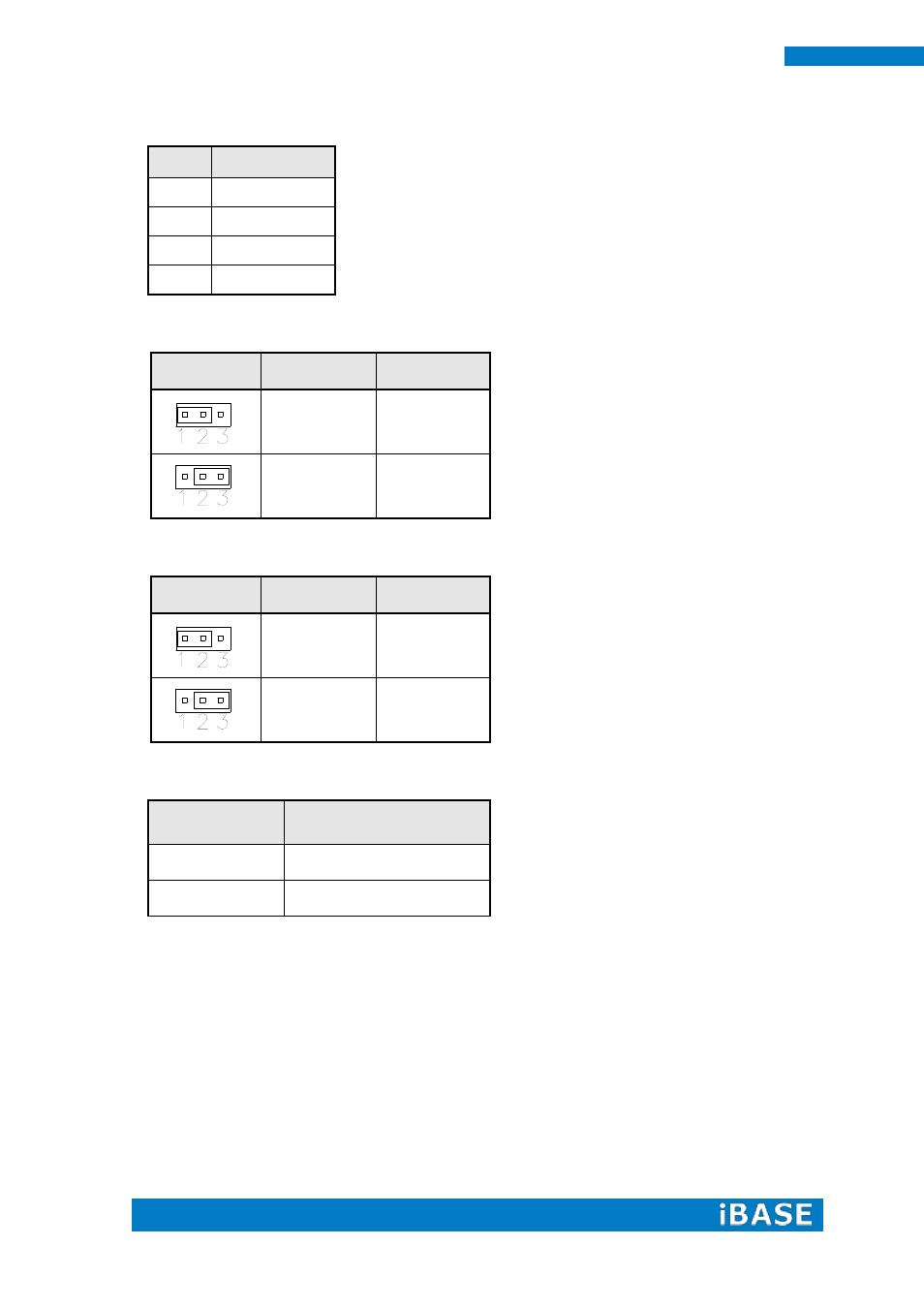

J11: Power Connector
Pin # Signal Name
1 DC-IN
2 GND
3 EARTH GND
4 IGS-IN
J3: Clear ME Contents
J3 Setting Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
J2: Clear CMOS Contents
J2 Setting Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
J1: Flash Descriptor Security Override (Factory use only)
J1
Flash Descriptor
Security Override
Open Disabled (Default)
Close Enabled
