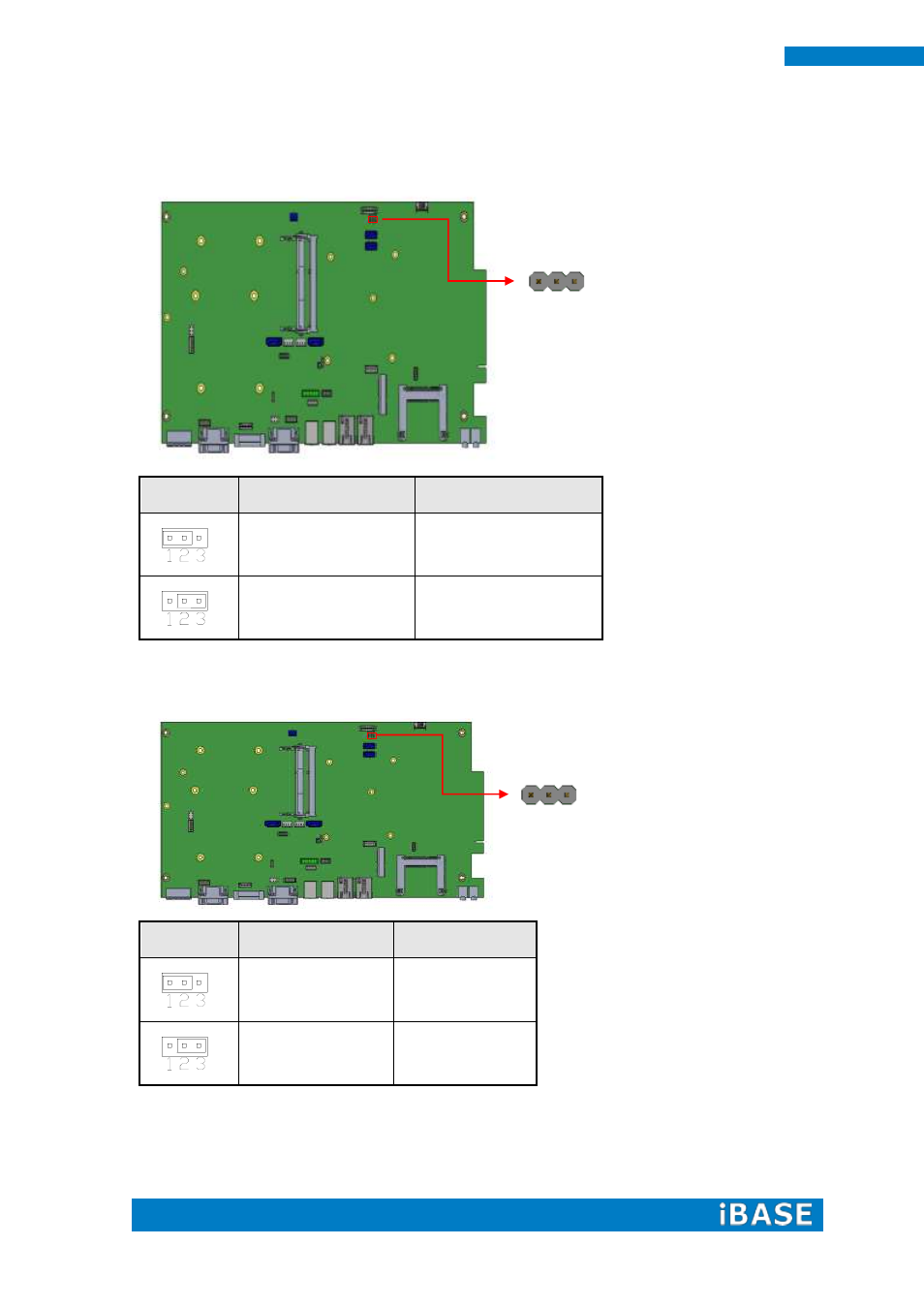

JP1: LCD Panel Power Selection
JP1 Setting LCD Panel Power
Pin 1-2
Short/Closed
+3.3V*
Pin 2-3
Short/Closed
+5V
JP2: LCD BackLight Control Output Level
JP2 Setting Level
Pin 1-2
Short/Closed
+3.3V*
Pin 2-3
Short/Closed
+5V
1 3
1 3
