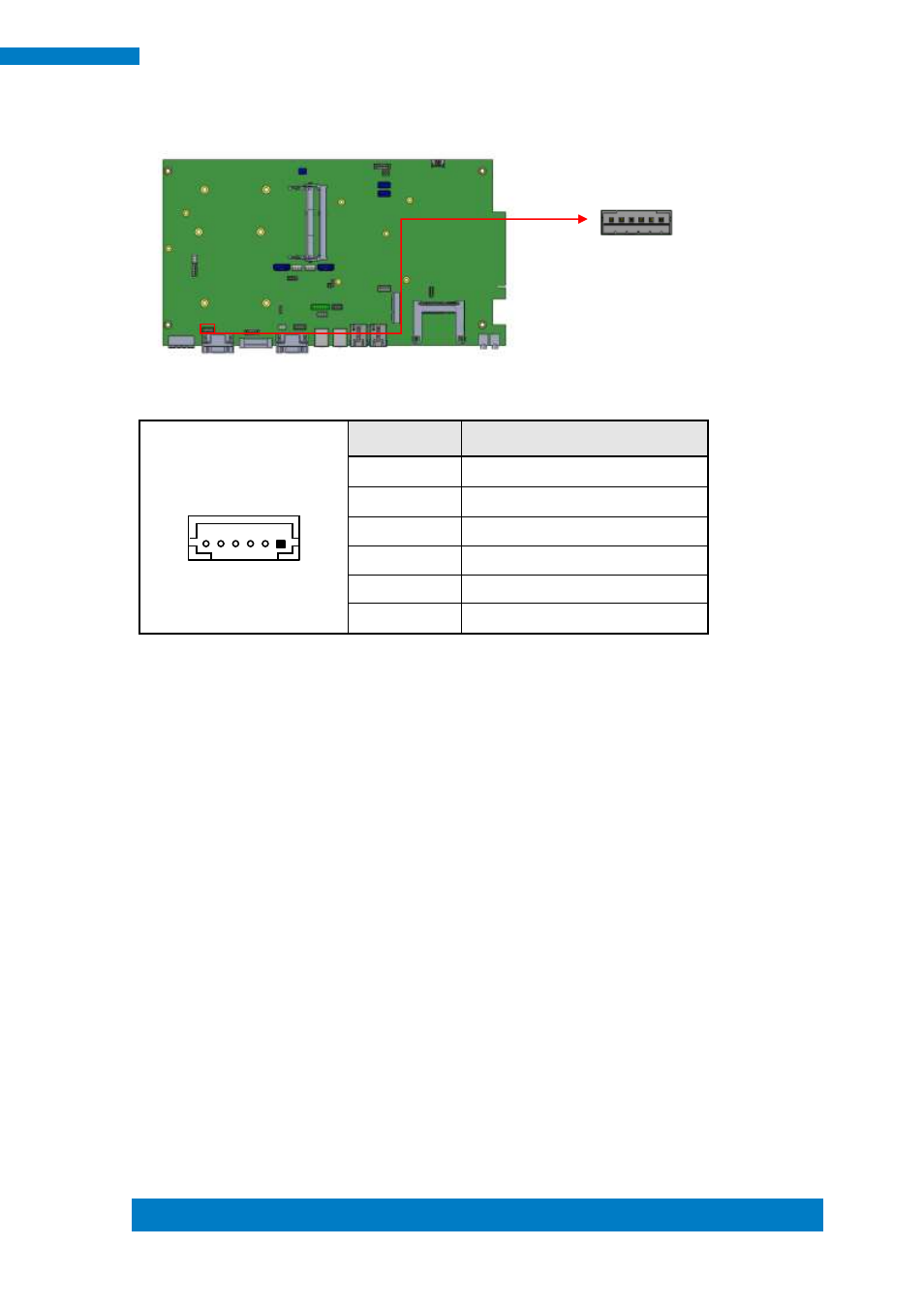

J19: Digital I/O
1X5_2.0mm_Straight_Male (E-CALL_0110-161-060 compatible JST B6B-PH-K-S)
Mating connector: JST PHR-6
6 1
Pin # Signal Name
1 OUT2
2 OUT3
3 IN2
4 IN3
5 +5V/0.5A
6 GND
LED2: POWER LED (Green)
