Nuvo ESSENTIA NV-E6GXS - Manual (Page 16)

Device 1
Connect to NV-I8GM
Concerto EZ Port
Model NV-I8GEZP
www.nuvotechnologies.com NuVo Technologies LLC Hebron, Kentucky USA
Device 2 Device 3
Device 4 Device 5 Device 6
R
SYS ON
EXT. MUTE
SUM1
3033118
C US
CONFORMS TO UL STD.6500 CERTIFIED TO CAN/CSA STD.E60065
NuVo Technologies Cincinnati Ohio USA FUSE:T5 A 120V 60Hz 500W
MODEL NV-I8DM SIX SOURCE EIGHT ZONE AUDIO DISTRIBUTION SYSTEM
www.nuvotechnologies.com
VARIABLE OUTPUT
FIXED OUTPUT
TIP=L RING=R
RS-232
CONNECT TO NV-I8X
USE NV-SLC1 CABLE
CONNECT TO NV-I8EZP1
USE NV-NC1 CABLE
USE CNLY WITH 250V FUSE
SUM2
OUTPUT POWER
20W/6OHM X2
ZONE 7&8
SYSTEM NETWORK DIGITAL LINK
PROGRAM
12

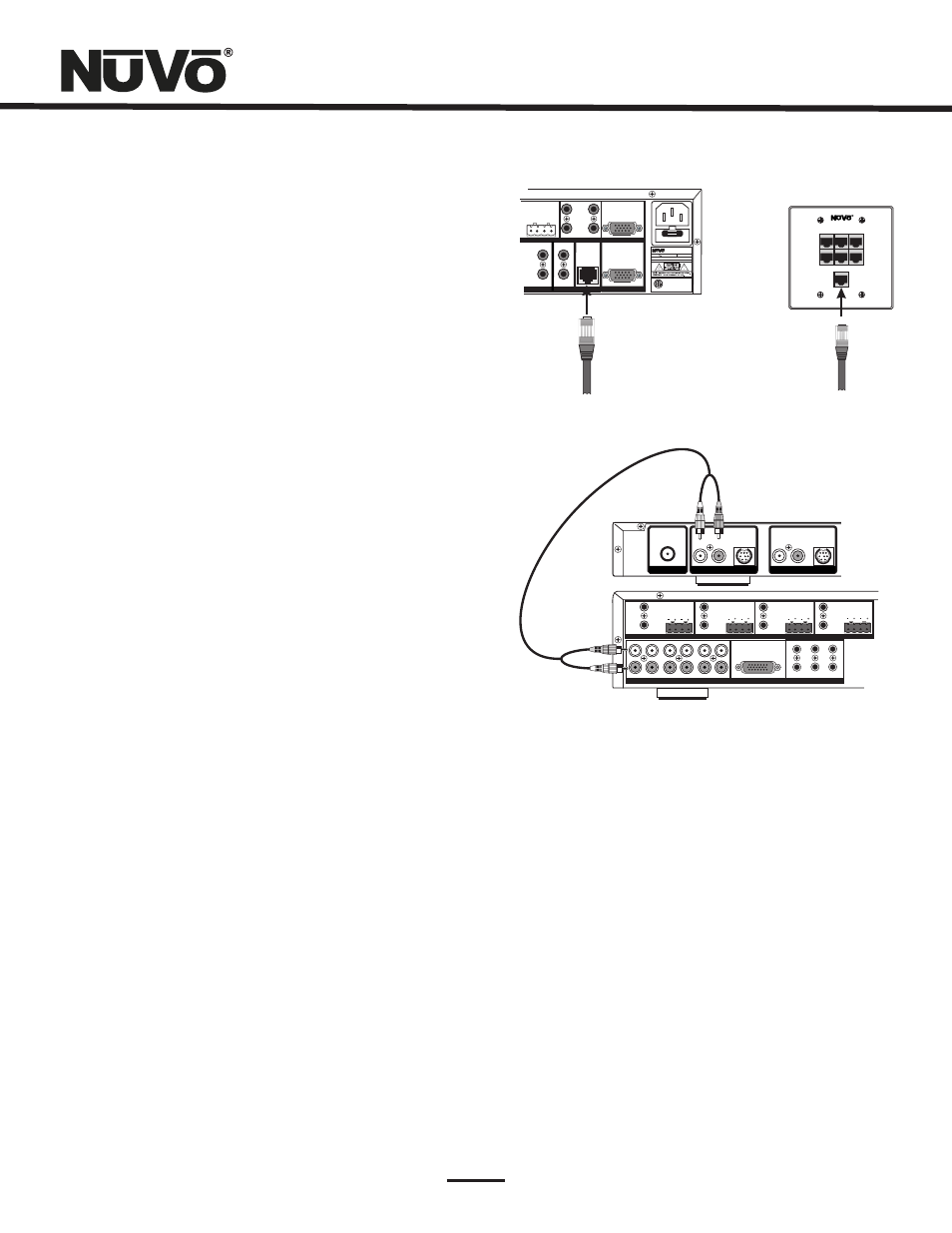

V. Connecting the EZ Port to the Grand Concerto Amplifier
(Fig. 4)
When the EZ Port is installed, the only part visible should be
the faceplate and seven RJ45 ports. The supplied pre-
terminated network cable should then be plugged into the
port labeled “Connect to NV-I8GM” and into the “Network”
connection on the back of the Grand Concerto Amplifier. Any
CAT5 cable terminated using 568A or 568B network wiring
will suffice should you need a longer connection.
Remember, it is important to terminate the cable the same
way on both ends.
Fig. 4
VI. Attaching Audio Source Equipment (Fig. 5)
Each piece of audio equipment is connected to the Grand
Concerto amplifier with standard stereo RCA cables. Attach
an RCA cable to the corresponding audio output on the
source equipment and to the desired source input on the
back of the Grand Concerto amplifier. The numbered input
for each source is important in the configuration of the
system. This will be covered in detail in the Grand Concerto
Configurator portion of this manual.
Fig. 5
Setting up the NuVo Sources for use with NuVoNet
IX. Grand Concerto Configurator Software
.
A feature of the Grand Concerto System is its ability to
automatically communicate with the T2 Tuners, Music Port
and, and the NuVoDocks for iPod. The communication
happens through the EZ Port connection hub, across a
communication protocol called NuVoNet. Although software
programming is not necessary for this function, configuring
the installation through the Configurator Software prior to
installation has distinct advantages and is highly
recommended, see
,
pg 11.
T2 Tuners (Fig. 6)
When each model of the T2 Tuners are plugged in for the
first time, the initial display,
will appear. When the button is touched, the
Tuner will prompt a regional tuning selection.It will then go
to
and Stand Alone is automatically
highlighted at initial startup.
Unitialized State Detected
(Press OK) OK
Tuner A, Standalone, Source 1, Source 2, Source 3, Source 4,
Source 5, Source 6.
Use the arrows to scroll to the appropriate source number.
When the selection is made, the T2 will go to the same
selection for Tuner B. When each output selection is
complete, the Grand Concerto System NuVoNet will
recognize that source.
Please note that the Source selections will not be selectable
until the appropriate audio connections are made between the
T2 and the Grand Concerto amplifier.
ANTENNA
IN
USE NV-T2FAA
ANTENNA
L
AUDIO
R
TUNER A
SIRIUS L
AUDIO
R
TUNER B
SIRIUS
SOURCE LINK
L
R
L
R
L
R
SOURCE INPUTS
TIP=L RING=R
ZONE 2
VARIABLE OUTPUT
FIXED OUTPUT
TIP=L RING=R
VARIABLE OUTPUT
FIXED OUTPUT
TIP=L RING=R
VARIABLE OUTPUT
FIXED OUTPUT
TIP=L RING=R
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3
4
CONNECT TO NV-I8X
USE NV-SLC1 CABLE
5 6
ZONE 1
VARIABLE OUTPUT
FIXED OUTPUT
SPEAKER 40W/6 OHMS X 2
LEFT RIGHT
ZONE 3 ZONE 4
SOURCE STATUS
SPEAKER 40W/6 OHMS X 2
LEFT
RIGHT
SPEAKER
40W/6 OHMS X 2
LEFT RIGHT
SPEAKER 40W/6 OHMS X 2
LEFT
RIGHT
