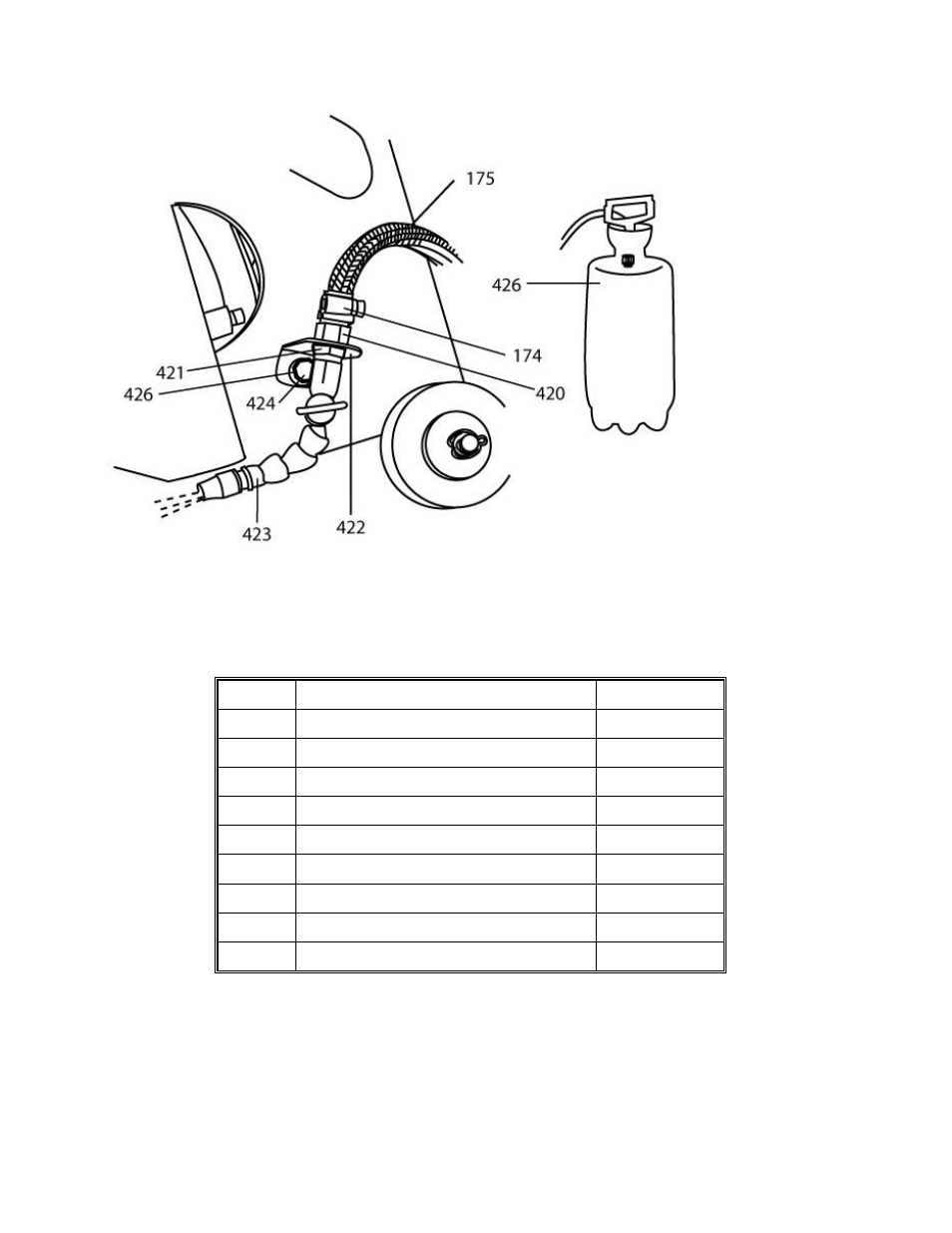

DRAWING 7 – CGM MANUAL BLADE LUBRICATION SYSTEM
TABLE 7 – CGM MANUAL BLADE LUBRICATION SYSTEM
Item N° Description Part Number
174 Hose Clamp, 2B 2 x 17 05-5500-174
175 Pneumatic Hose, 8 x 17 05-5500-175
420 Hose Barb 05-5500-420
421 Fitting, Male to Male 05-5500-421
422 Bracket, Manual Lubrication system 05-5500-422
423 Flexible Nozzles with Shut-off Valve 05-5500-423
424 Hex Head Cap Screw 05-5500-424
425 Washer 05-5500-425
450 Pressurized Tank Assembly 05-5500-426
