43

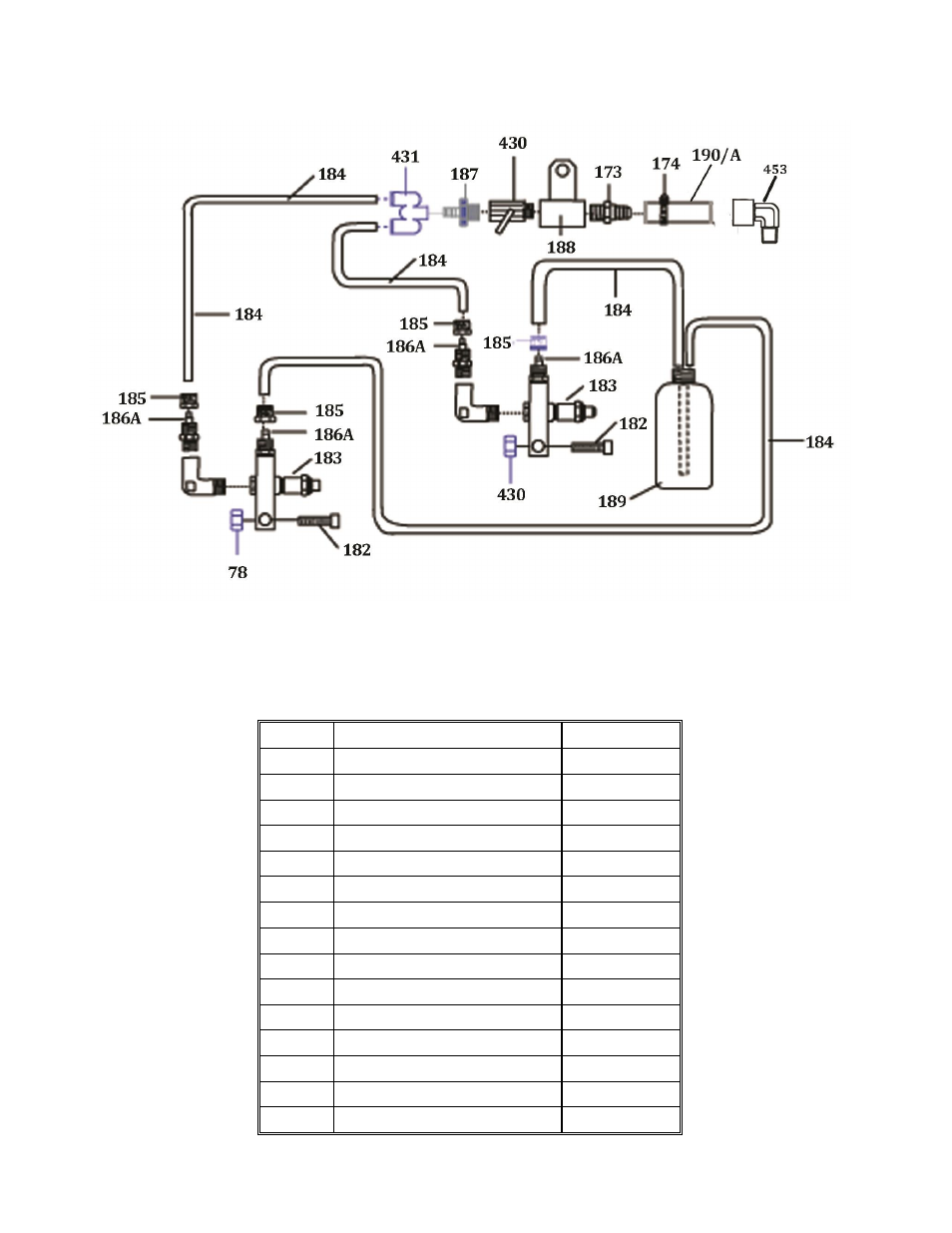

DRAWING 9 – OPTIONAL CGM AUTOMATIC BLADE LUBRICATION SYSTEM
TABLE 9 – OPTIONAL CGM AUTOMATIC BLADE LUBRICATION SYSTEM
Item N° Description Part Number
173 Hose Barb 05-5500-173
174 Hose Clamp, 2B 14-24 05-5500-174
182 Socket Head Cap Screw, M8 x 700 05-5500-182
183 Lubricator Nozzle 05-5500-183
184 Plast ic Tubing, Ǿ6mm 05-5500-184
185 Tubing Nut, Ǿ 05-5500-185
186A 1/8" plastic Hose Connection 05-5500-186A
187 Reducer, 1/4" to 1/8" 05-5500-187
188 1/4" Nipple with Welded Tail 05-5500-188
189 Plastic Bottle, Synthetic Coolant 05-5500-189
190/A Hose, Ideal 20 8 x 17 (18cm) 05-5500-190/A
430 1/4" Ball Valve 05-5500-430
431 Dual Hose Connection 05-5500-431
453 Male NPT Elbow 05-5500-453
78 Hex Nut, M8 05-5500-443
