Software Reference 988992 ChartView , CV-9

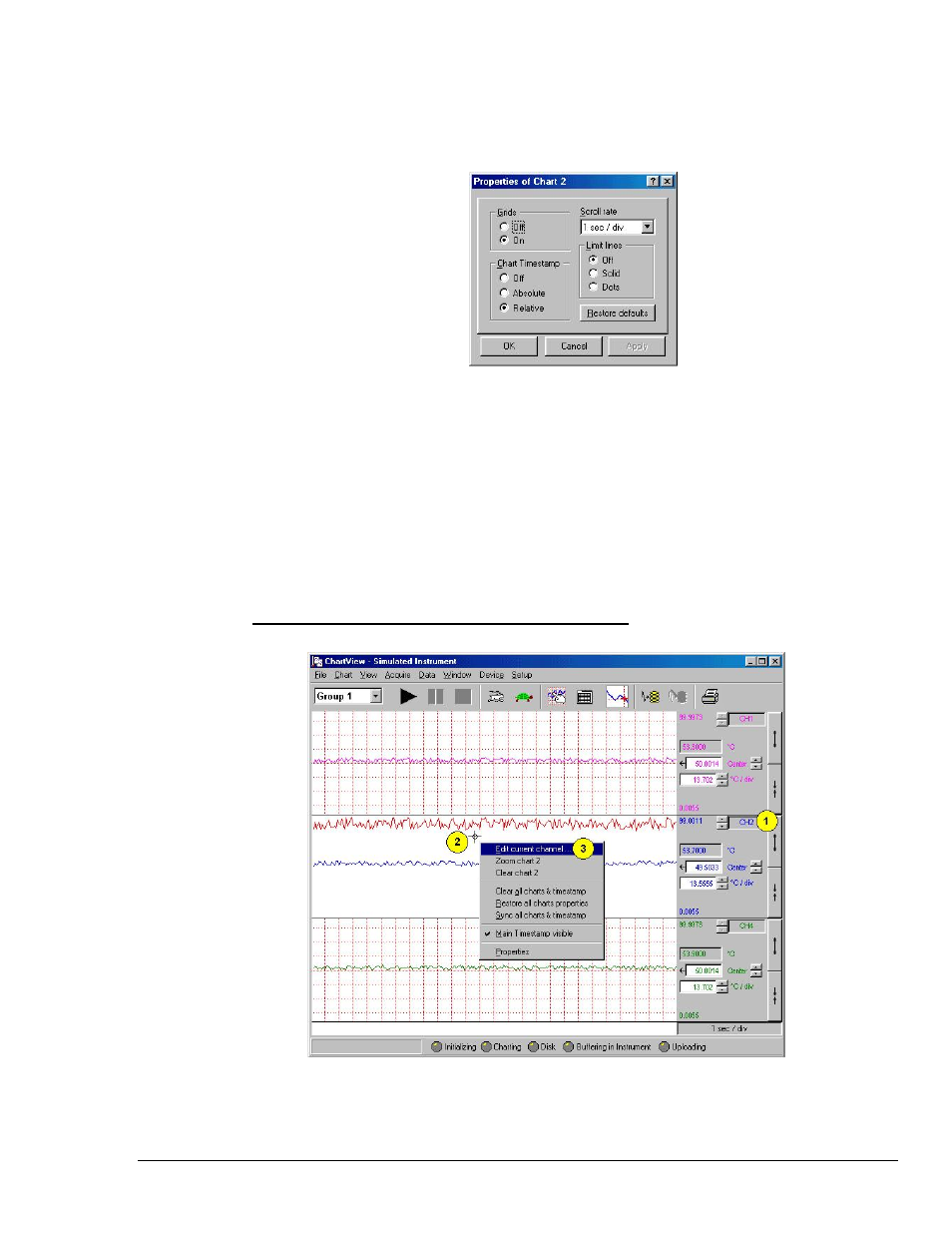

• Properties - Selecting “Properties” from the pop-up menu accesses a Chart Properties dialog
box. The box allows you to change the selected chart in regard to the following.
Properties Dialog Box
- Turn grid lines on or off
- Turn the chart’s timestamp on or off, and choose absolute or relative as the type of
timestamp. Absolute timestamps make use of real clock time. Relative timestamps
start at 00:00:00.
- Select the desired scroll rate for the chart from a pull-down list
- Elect to have solid limit lines, dotted limit lines, or no limit lines (off)
- Restore the selected chart’s default values. The grids are turned on; timestamps are
off, the scroll rate of 1 sec/div is selected, and the limit line option is turned off.
Using the pop-up menus’ “Edit current channel” feature
Selecting “Edit Current Channel” from the Pop-up Menu
Perform the following steps to edit a channel by using the pop-up menu. The step numbers correspond directly
to the numbers in the preceding figure.
