13
INSTALLATION (cont.)
Mounting CM25 to Roof Structure (cont.)

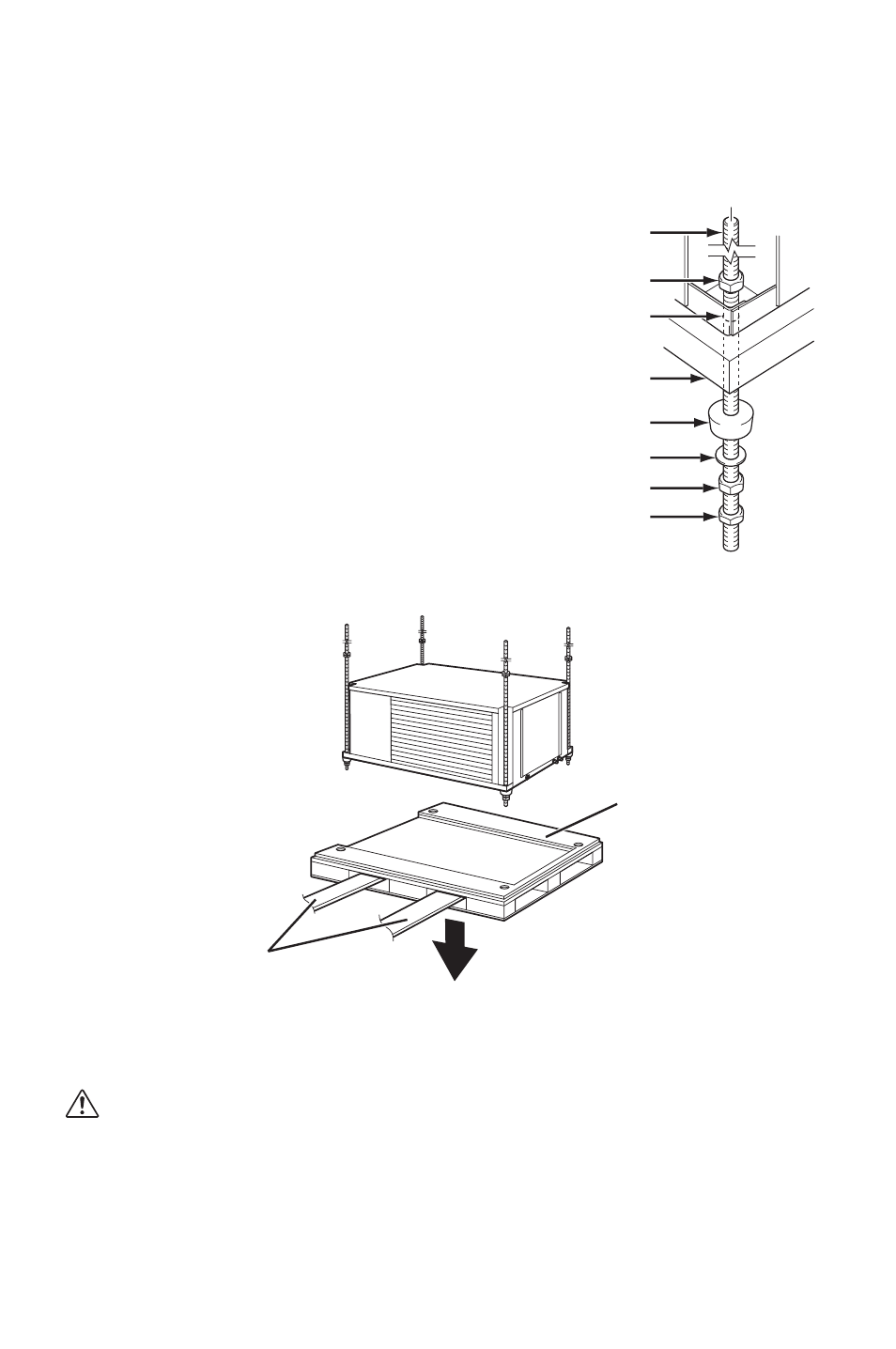

Example of Mounting with Pallet
4. Insert the suspension rods
through the mounting holes of
unit and pallet. Then install
vibration isolators, washers,
nuts (middle) and jam nut
(bottom) to be same level for all
four mounting positions.
5. Slowly lower the pallet with the lifts.
6. Make sure the unit is level.
Level must be less than 2° incline.
If the unit is not level, align the nut (middle) to level.
CAUTION: If level is more than 2° incline, condensation water
leakage may occur.
7. Tighten the jam nut (bottom).
Tightening torque for jam nut: Approx. 3.02 ft•lbf (4.1 N•m)
8. Tighten the nut (top) by hand until it is secured against the base frame.
SUSPENSION ROD
NUT (top)
MOUNTING HOLE
VIBRATION ISOLATOR
PALLET
WASHER
NUT (middle)
JAM NUT (bottom)
LIFTS
PALLET
