INSTALLATION (cont.)

Fire Alarm Connection (Input Signal) (cont.)

1. Use recommended fire alarm signal wire size from 16 AWG to 26 AWG for a

solid wire, or 16 AWG to 22 AWG for a stranded wire.

2. Disconnect power before connecting the fire alarm signal wire to the unit.

3. Insert the fire alarm signal wire

through the signal wire inlet.

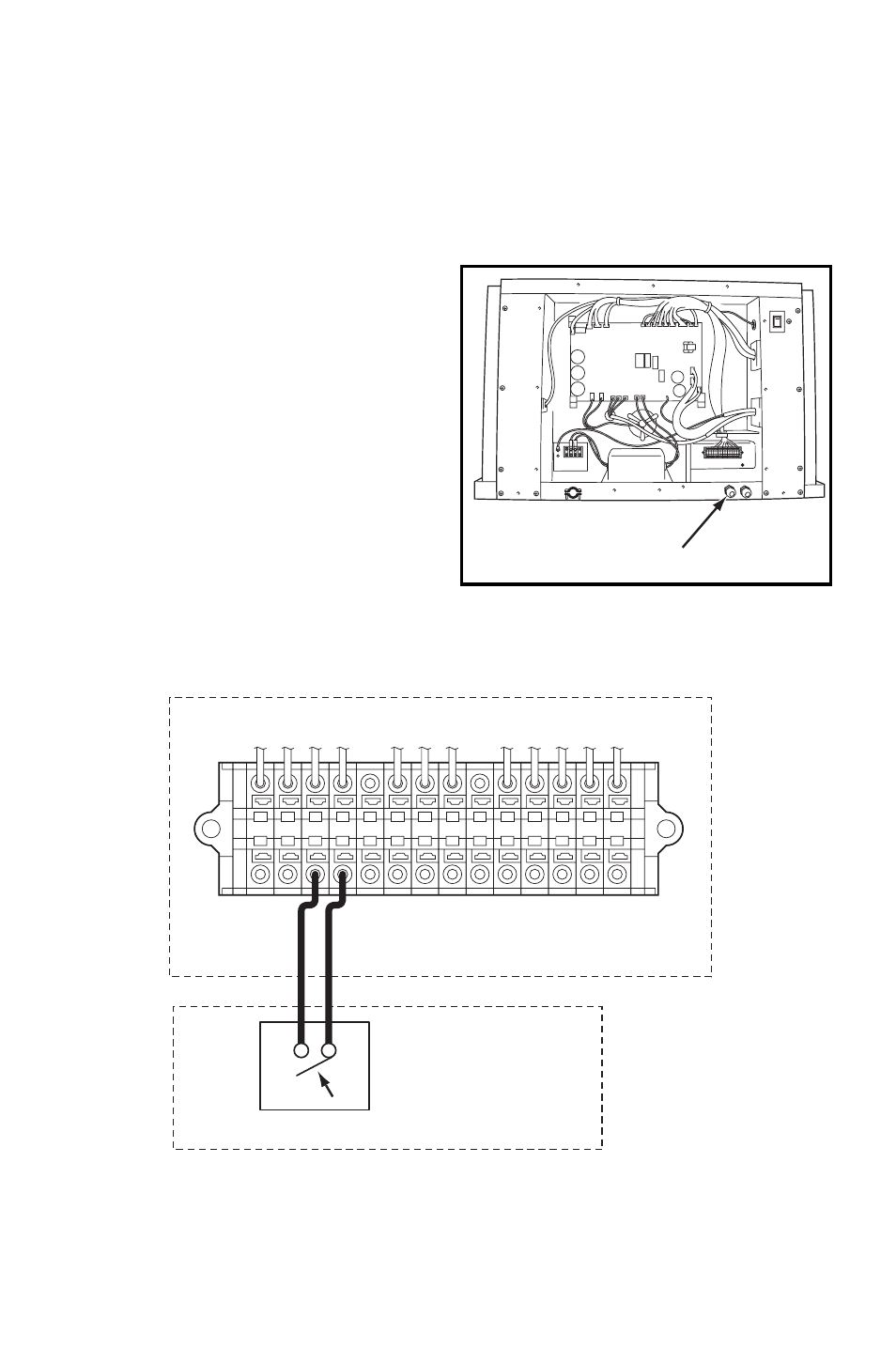

4. Connect the fire alarm signal wires to terminal E+ and E- in the unit control box

according to labels shown below.

SIGNAL WIRE INLET

L–

L+

E–

E+

G4

C4

P

RC

Y1

Y2

G

G1

UNIT TERMINAL

FIRE ALARM DEVICE

OUTPUT SIGNAL

OPEN DRY CONTACT
