33
INSTALLATION (cont.)
Warning Signal Connection (Output Signal) (cont.)
1. Use recommended warning signal wire size from 16 AWG to 26 AWG for a
solid wire, or 16 AWG to 22 AWG for a stranded wire.
2. Disconnect power before connecting
the warning signal wire to the unit.

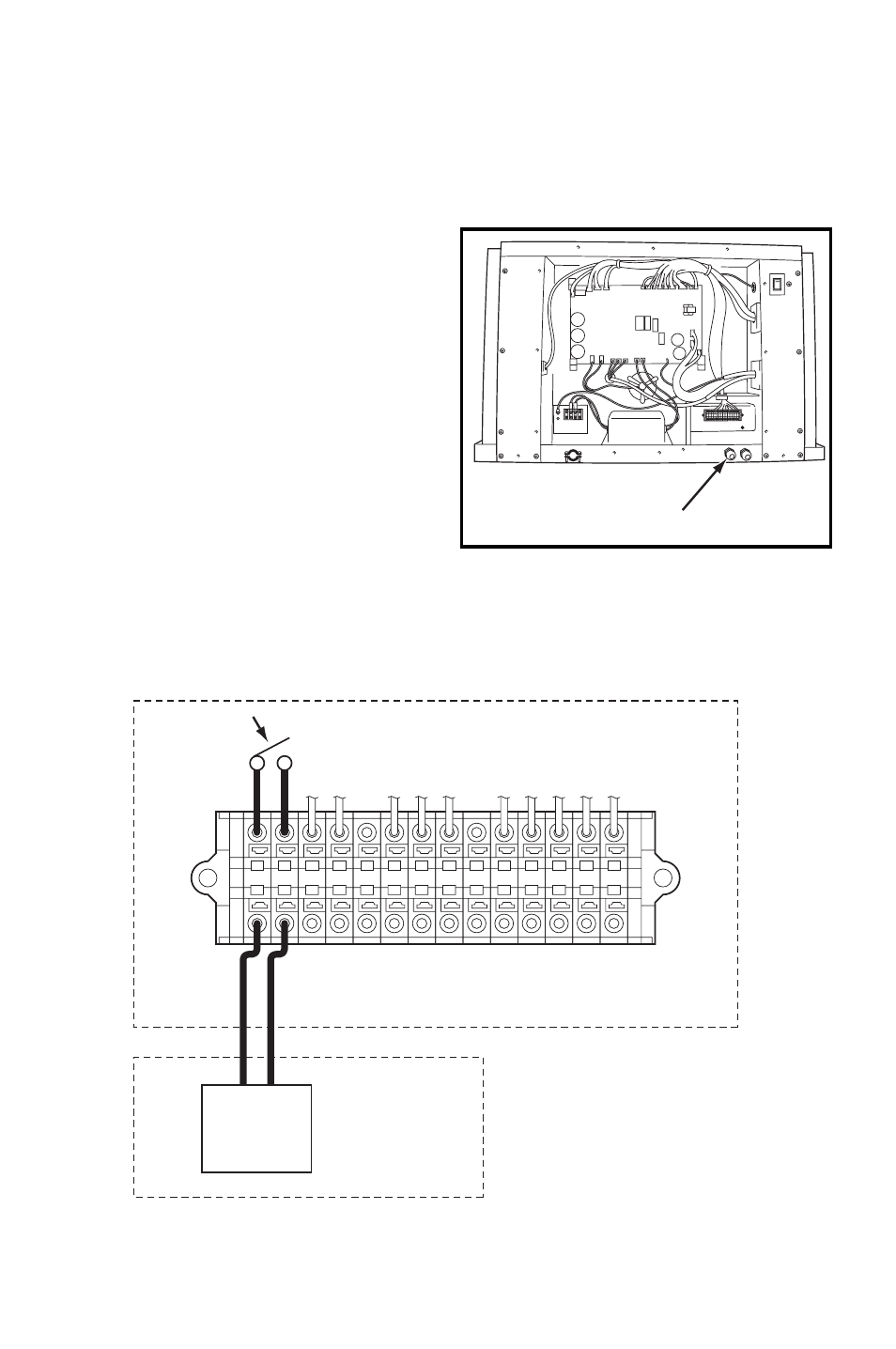

3. Insert the warning signal wire through the signal wire inlet.
4. Connect the warning signal wires to terminal L+ and L- in the unit control box
according to the labels shown below.
SIGNAL WIRE INLET
L– L+ E– E+ G4 C4 P RC Y1 Y2 G G1
UNIT TERMINAL
WARNING DEVICE
INPUT SIGNAL
RELAY OUTPUT CONTACTOR
