6.1 Configuration Examples

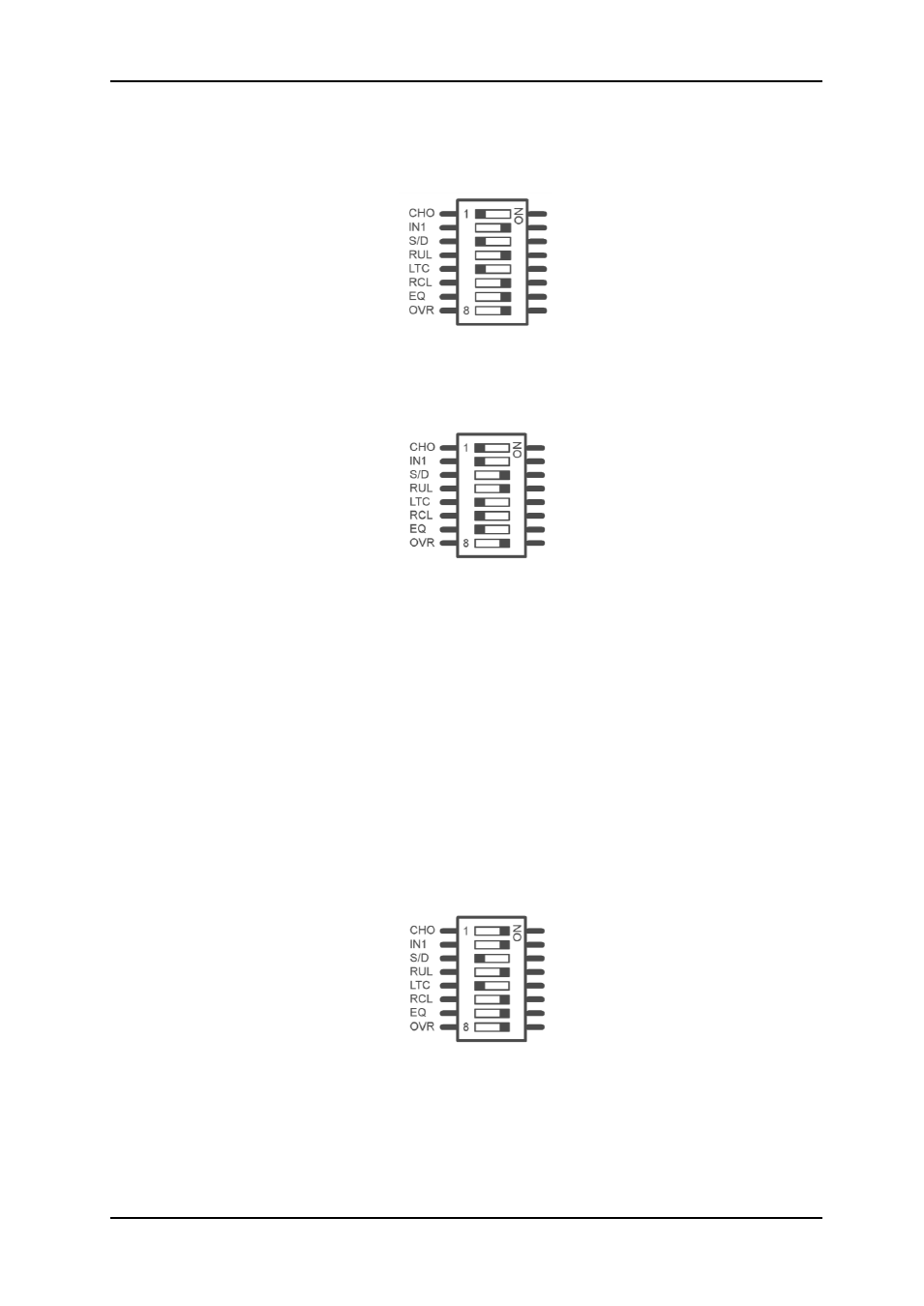

Typical configurations for 3GHD-CHO-2x4:
Figure 5. Distribution mode, Input 2 priority, Input 1 to 4 outputs,
Input 2 to 4 outputs, transparent mode without equalization and reclocking.
Figure 4. Distribution mode, Input 1 priority, Input 1 to all outputs,
reclocker and equalizer on.
Figure 6. Change-over mode, input 1 priority, single distributed output,
loss of lock criteria, non latching switch, reclocker and equalizer on
