Connections
35
AV-3G-XMUX User Manual Rev. B

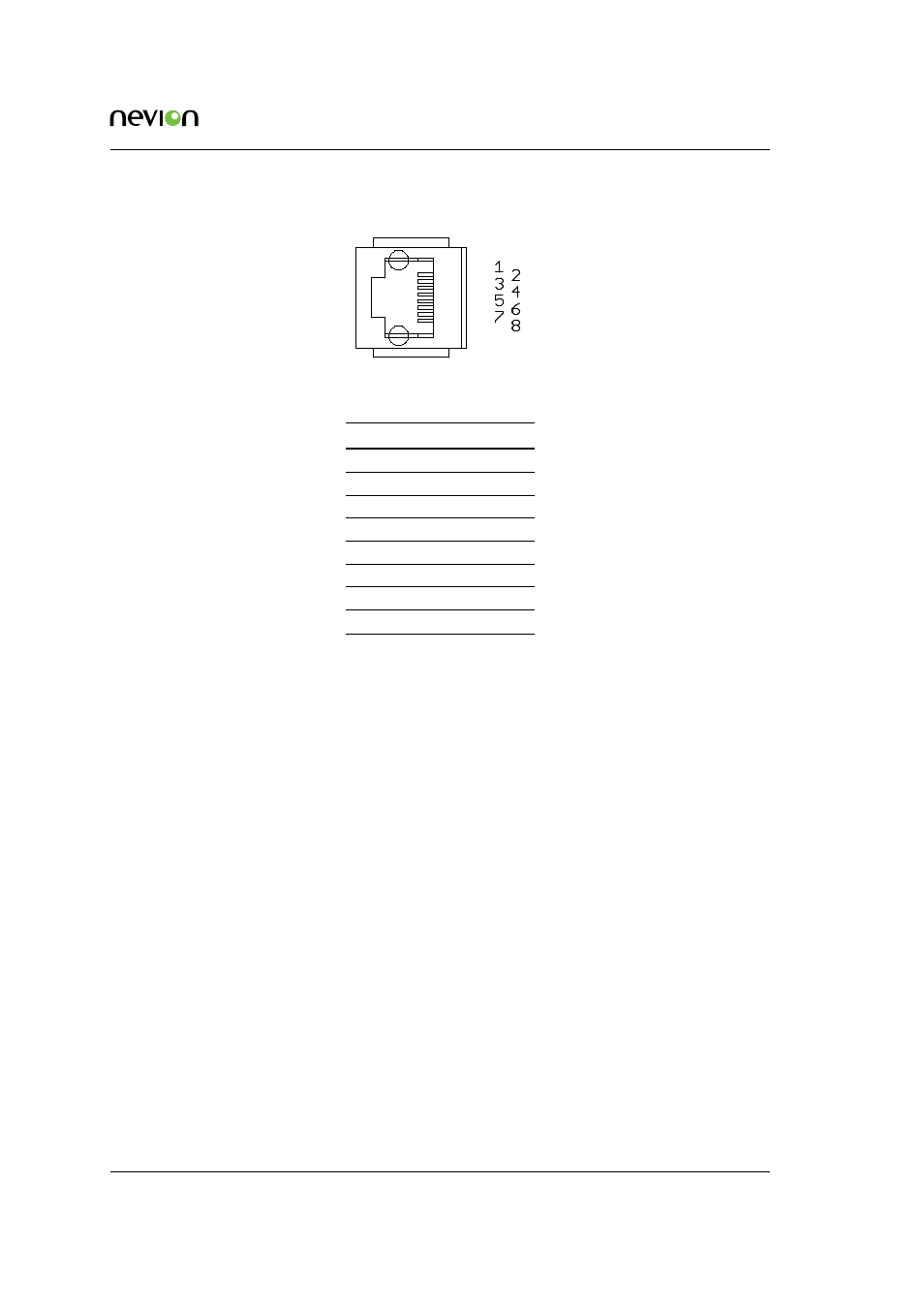

7.5 Modular jack 8P8C
Figure 7.2 GPI / data connector
Pin
Function
1
Status
2
No video signal
3
Laser failure/ Laser kill
4
RS485/422 output +
5
RS485/422 output -
6
RS422 input +
7
RS422 input -
8
Ground
