3GHD-OE-L-2-SFP
Rev. C
nevion.com | 23
5
Operation
5.1 Module status
The status of the module can be monitored in three ways.
1. GYDA System Controller (optional).
2. GPI at the rear of the sub-rack.
3.
LED’s at the front of the sub-rack.
Of these three, the GPI and the LED’s are mounted on the module itself, whereas the GYDA
System Controller is a separate module giving detailed information on the card status.
5.1.1 Multicon Gyda status interface

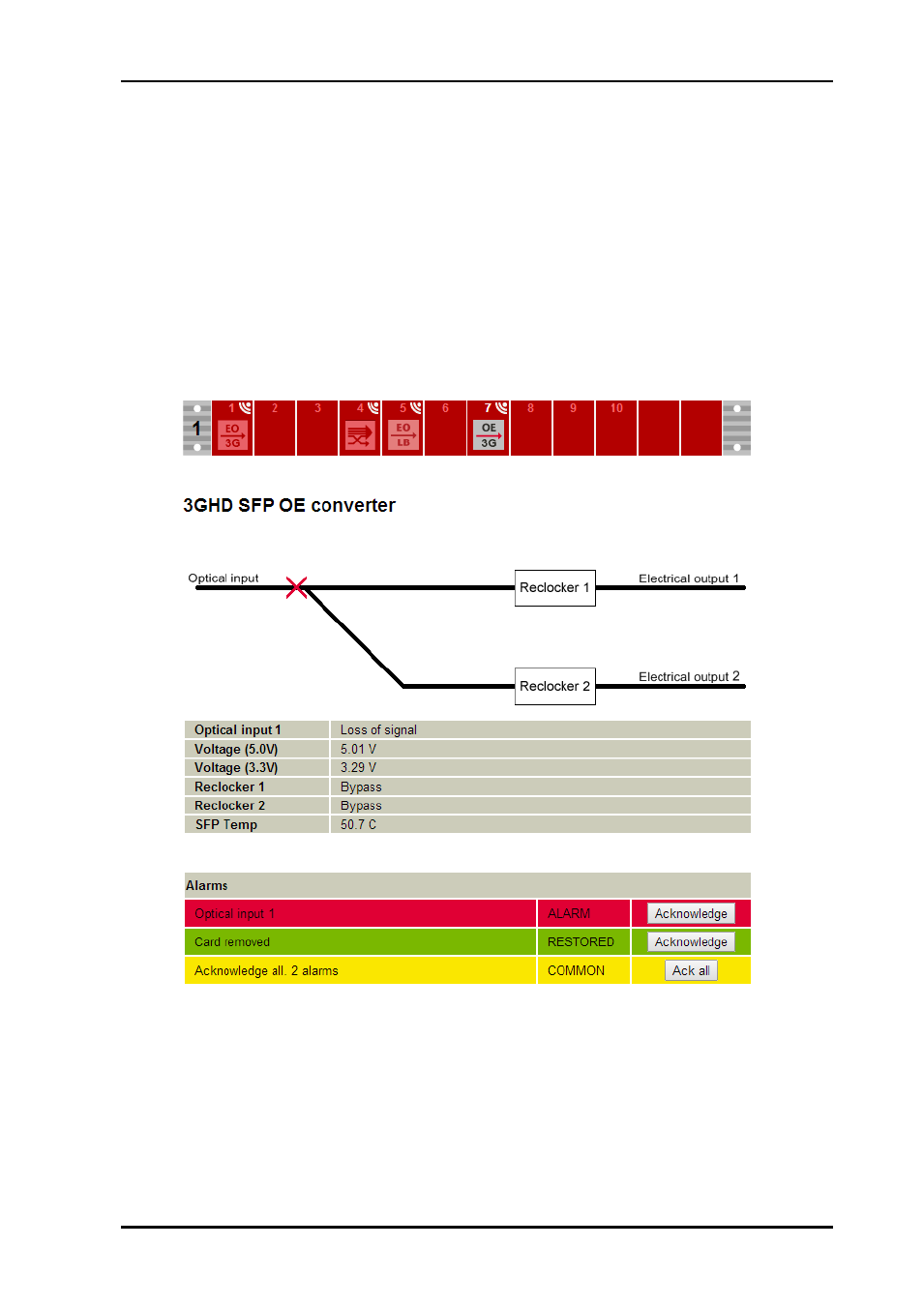

Figure 23 Single converter status tab
