19 | Blower Pack Installation Guide
Accessories
Steam Adapter
If using a humidifier with 7/8” OD steam line and RM-BP, Nortec offers an optional adapter (Part
#2572634) to facilitate the pipe reduction needed to connect the humidifier to RM-BP. The adapter
readily mounts to the bottom of the RM-BP or can be placed where transition is requires. The
Adapter consists of a plastic expansion and a steel mounting braket. The bottom inlet, 7/8” (22mm)
OD, is easily fitted to smaller capacity NH-EL humidifiers (5-30 lbs/hr). The top of the Adapter is the
outlet in 1-3/4” (44.5mm) OD which matches the RM-BP inlet diameter. Finally, the adapter uses a
3/8” (9.5mm) condensate trap to remove condensate buildup during the expansion.

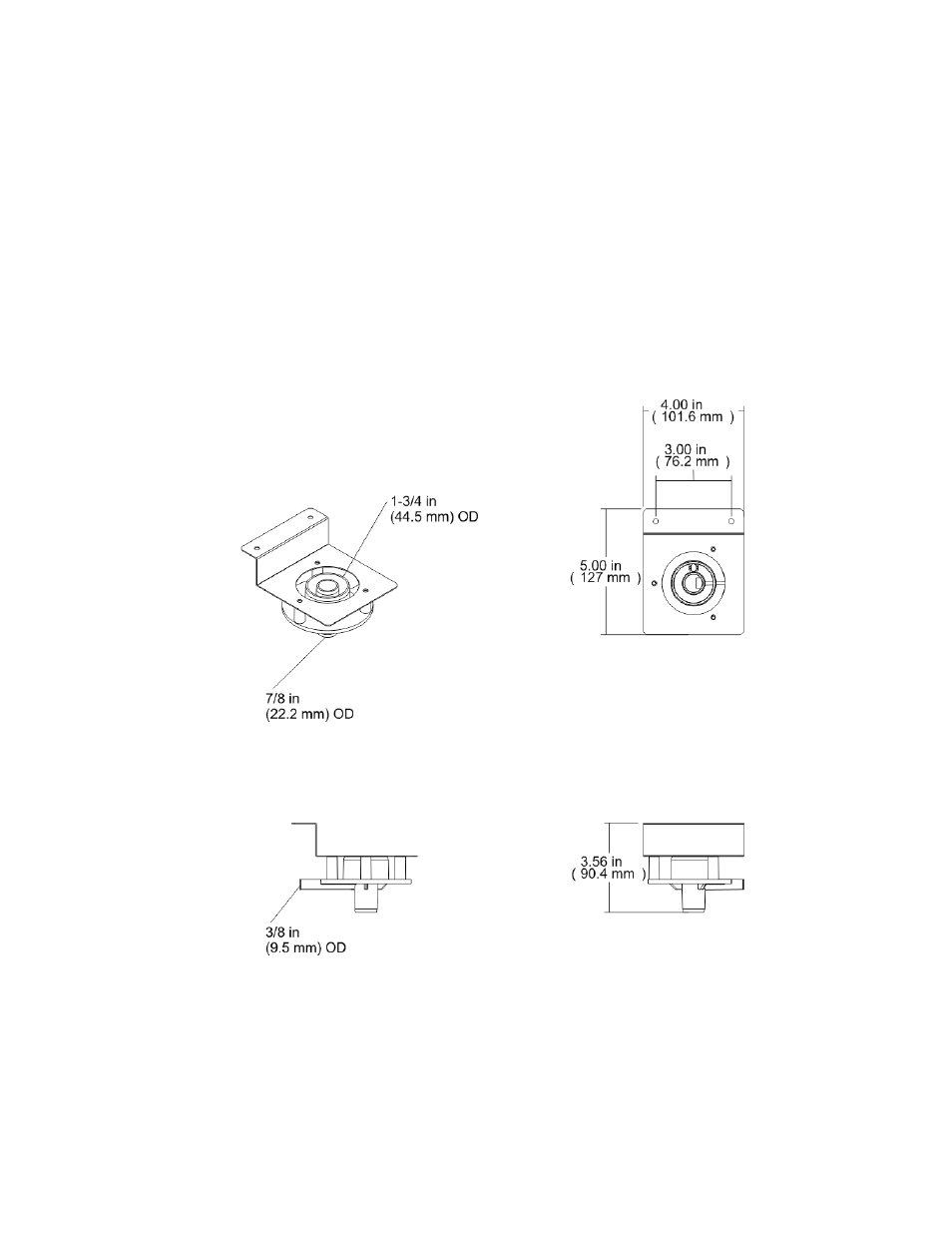

Figure 12. Nortec Optional Adapter
