for Surround
Configuration—Model 77 Device Address, Stereo Input C Sample Rate
Converter, Post-Fader Stereo Digital and Analog Monitor Outputs,
Bass Management, and Mute/Solo Bass Management Settings
Default: Device address A1.
Stereo input C sample rate converter enabled.
Post-fader stereo digital and analog monitor
outputs can be enabled.

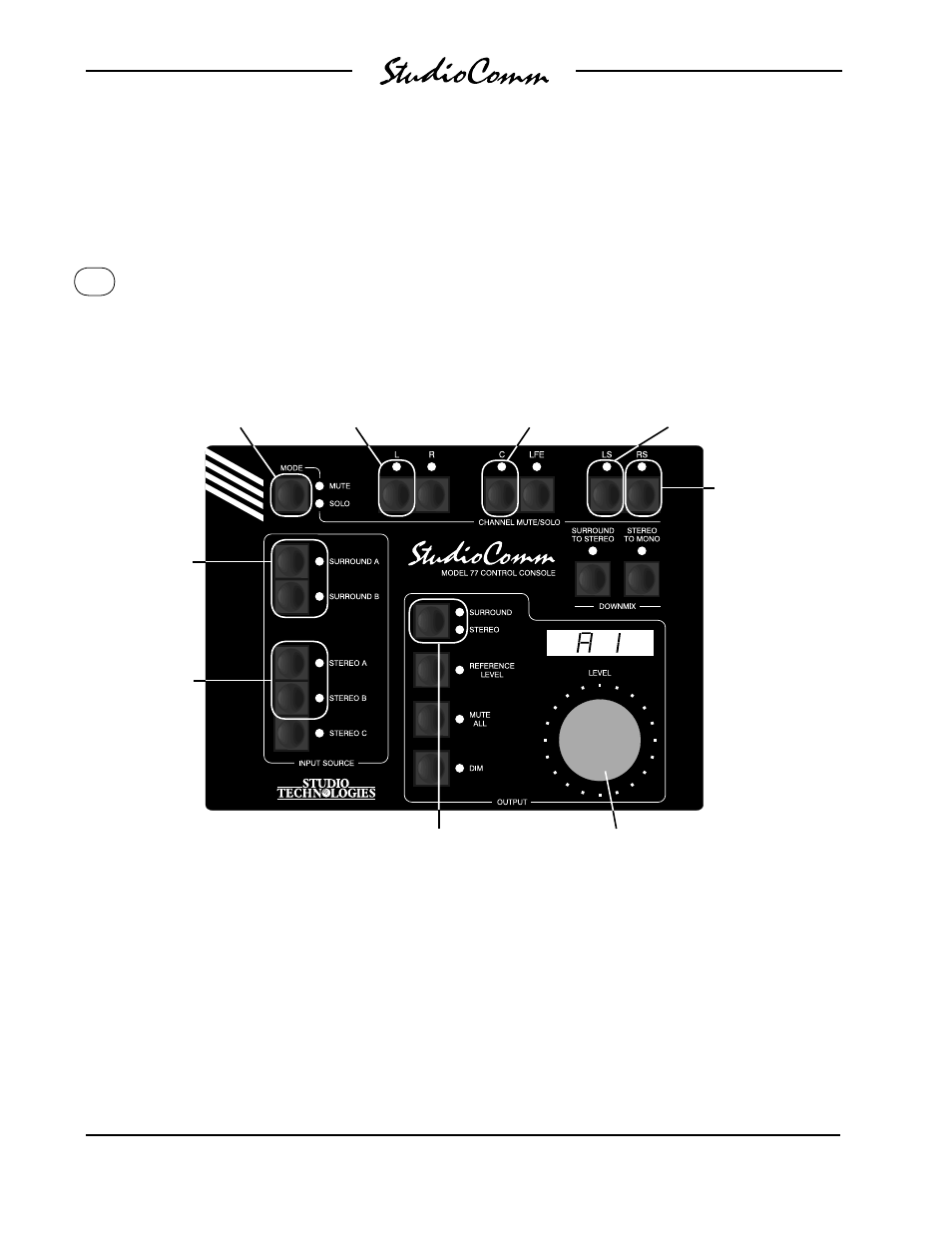

Press and hold the Mute/
Solo button to display
and confirm the Model
77’s device address,
stereo input C sample
rate converter, post-fader
stereo digital and analog
monitor outputs, and bass
management functions.
Use the Level control
to change this specific
Model 77’s device
address. Address can
be either A1, A2, A3,
or A4.

These LEDs display the status of the post-fader
stereo digital and analog monitor outputs. When
LED Surround is lit the outputs cannot be enabled.
When LED Stereo is lit the outputs can be enabled.
Use the button to change the configuration.
This LED displays the
configuration of the
stereo input C sample
rate converter (SRC).
LED not lit means SRC
is bypassed; LED lit
means SRC enabled.
Use the button to change
the configuration. This LED displays the config-
uration of the surround out-
put bass management. LED
lit means surround output
bass management enabled;
LED not lit means surround
output bass management
bypassed. Use the button to
change the configuration. This LED displays the con-
figuration of the
stereo output
bass management. LED lit
means stereo output bass
management enabled; LED
not lit means stereo output
bass management bypassed.
Use the button to change the
configuration.
This LED displays
the configuration
of the mute/solo
mode. LED lit
means mute/solo
functions occur post
bass management;
LED not lit means
mute/solo functions
occur pre bass
management. Use
the button to change
the configuration. Use these
buttons to select
bass manage-
ment low-pass
filter slope.
LED Surround A
lit means
24 dB/octave;
LED Surround B
lit means
12 dB/octave.
Use these
buttons to
select bass
management
high-pass
filter slope.
LED Stereo A
lit means
24 dB/octave;
LED Stereo B
lit means
12 dB/octave.
Note: The Model 77’s device address is the only parameter stored in the Model 77. All other parameters are stored
in the Model 76DA.
Surround output bass management bypassed.
Stereo output bass management bypassed.
Bass management low-pass filter slope 24 dB/octave.
Bass management high-pass filter slope 24 dB/octave.
Mute/solo pre bass management mode.
