6.2 Assembly Drawings

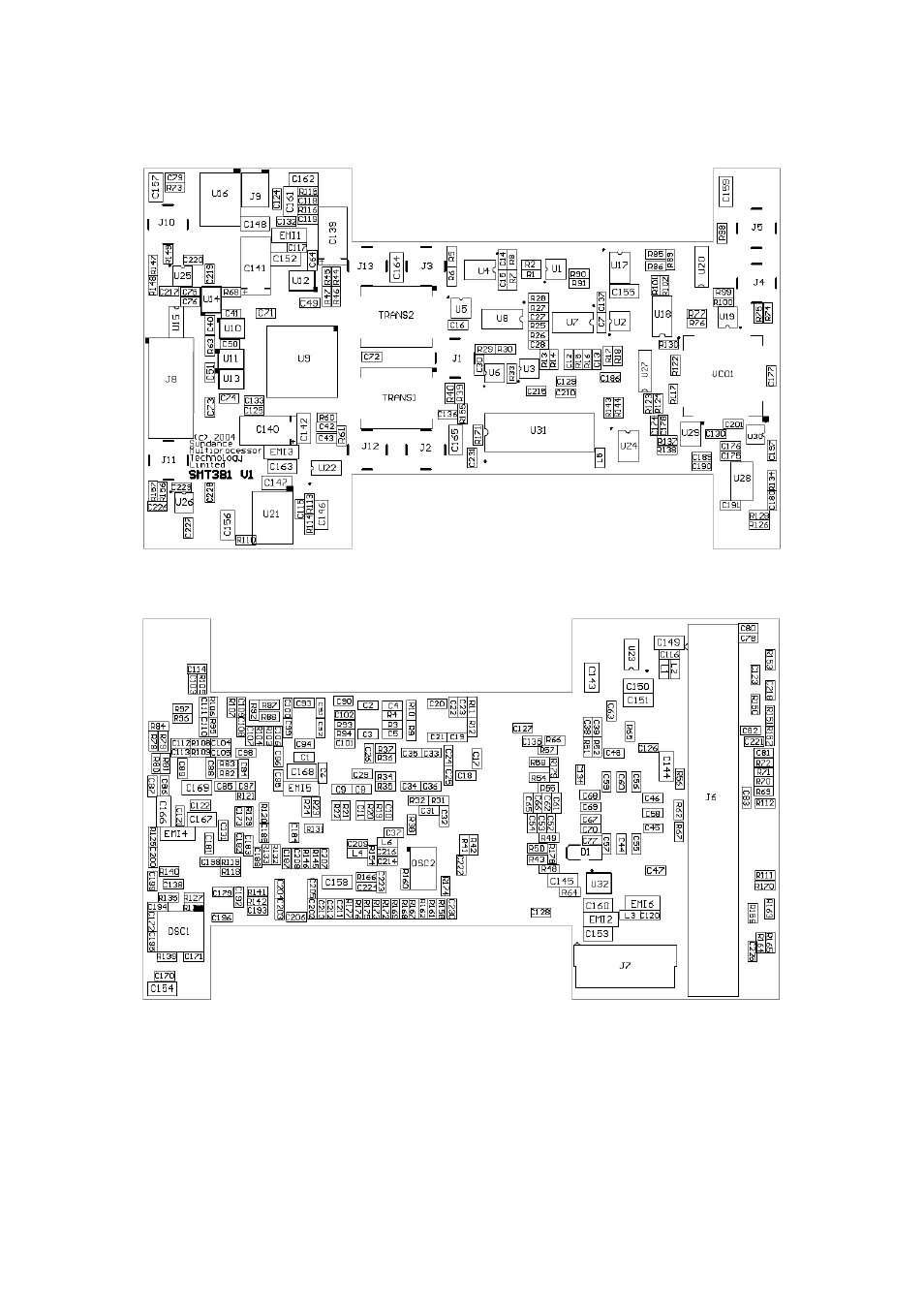

Figure 37. SMT381 Top Assembly Drawings.

Figure 38. SMT381 Bottom Assembly Drawings.

Component descriptions:

U1 - DUAL LVTTL to LVPECL CONVERTER

U2 - DUAL LVTTL to LVPECL CONVERTER

U3 - DUAL LVTTL to LVPECL CONVERTER
