Compact HMI and Compact HMI Editor Operations Manual
Super Systems Inc. Page 31 of 60
Appearance
Background Color
The background color
Display Conditions Conditions for changing the way
data is displayed. More details
are in the “Display Conditions
”
section.
Displays Text If true, label will display the
text in the ‘Text’ field by
default; otherwise, it will
display a data value defined in
the Data group
Font
Name
Name of the font to use
Size Size of the font, based on the
unit specified in Unit
Unit The unit on which the size of
the font is based. See Appendix
2: Font Measurement Units for
more information.
Bold If true, displays text in Bold
GdiCharSet This setting should not be
changed without first
contacting Super Systems Inc.
GdiVerticalFont This setting should not be
changed without first
contacting Super Systems Inc.
Italic If true, displays text in Italics
Strikeout If true, displays text with
Strikeout
Underline If true, underlines text
Text The default text to display.
Text Color The color of the displayed text
Behavior
Press Action
The action taken when the
button is pressed (see above
description)
Release Action The action taken when the
button is released (see above
description)
Data
Display Expression
The display tag for the data
Format The format for the data
Unit The units of the displayed data
(°F, for example)
Design
(Name)
The name of the control.
Locked Determines whether the
control can be moved or
resized.
Layout
Dock
Defines which borders of the
control are bound to the
container
Location Coordinates of the upper left
corner of the control.
X X coordinate of upper left
corner of control

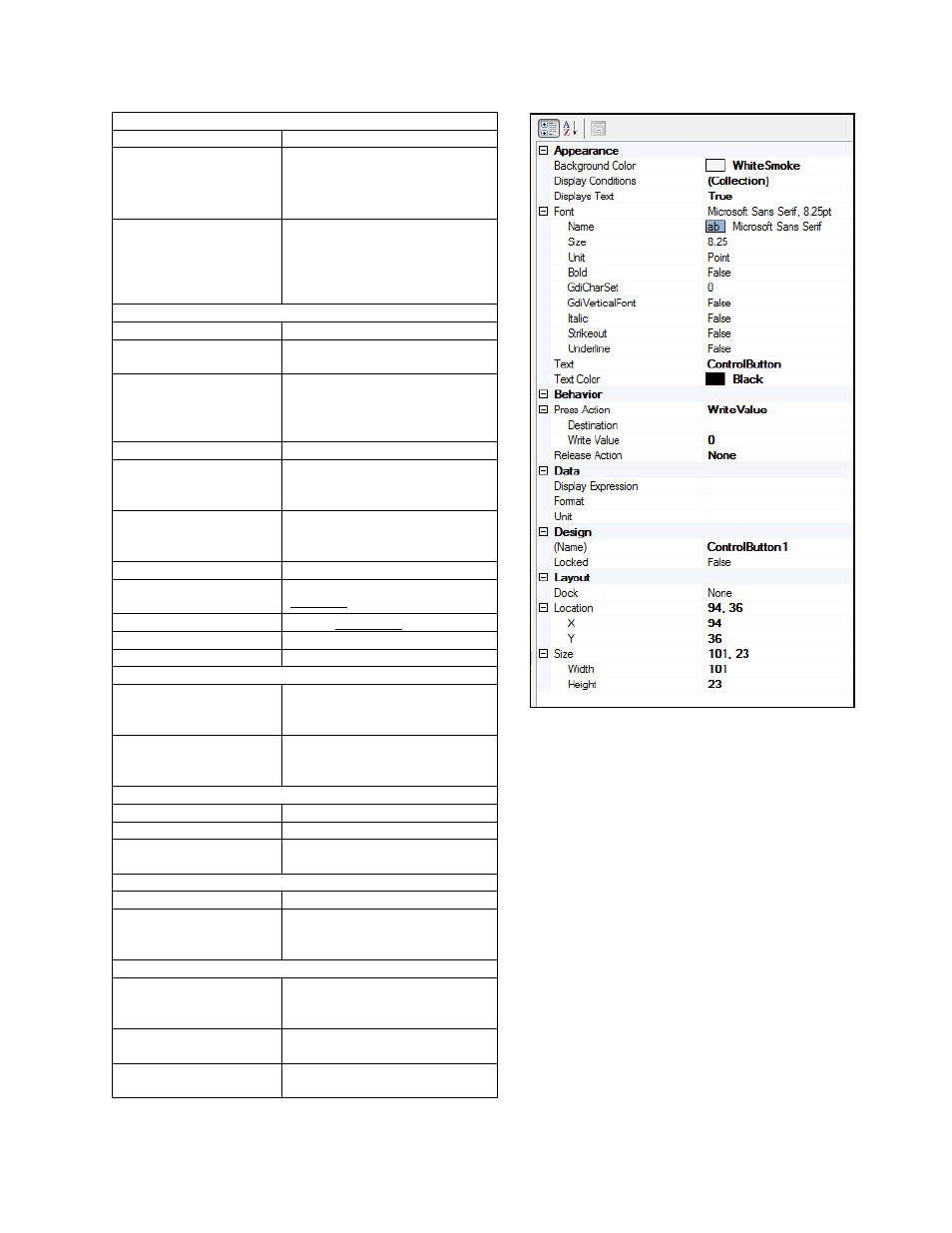

Figure 26 - Control Button properties grid
