Leveling the Projector
•
If the projector can not be leveled using the projector mount adjustments, you can make fine adjustments
to the Lift.
•
Level corrections are made with the projector mounted after confirming that the cable is packed tightly
and is straight on the Cable Drum.
•
It is best to lower the lift to the Service position and then completely up before leveling the projector.
•
Level adjustments should be made with the projector in the Show position.
•
Position a level across the front of the projector. Fine adjustments are done by adjusting the nuts on the
bottom of the cable eye bolts. Raise and lower the Lift until satisfactory level is achieved.
•
After adjustments are made tighten the eye bolt nuts.
11. CABLE MANAGEMENT
The SVS TL1 Lifts all feature cable retainers installed on the scissors extensions in the rear of the Lift. These
retainers are used to keep the projector cables clear of the Lift's moving parts during Lift operation. It is not
recommended attaching the projector cables to the scissors of the Lift as they could get repeatedly pinched
when the Lift raises and lowers. To keep the projector cables clear of the scissors please attach the cables as
show in the Figure 10.
SVS TL1 Lift Installation Instructions
Page 12 of 16

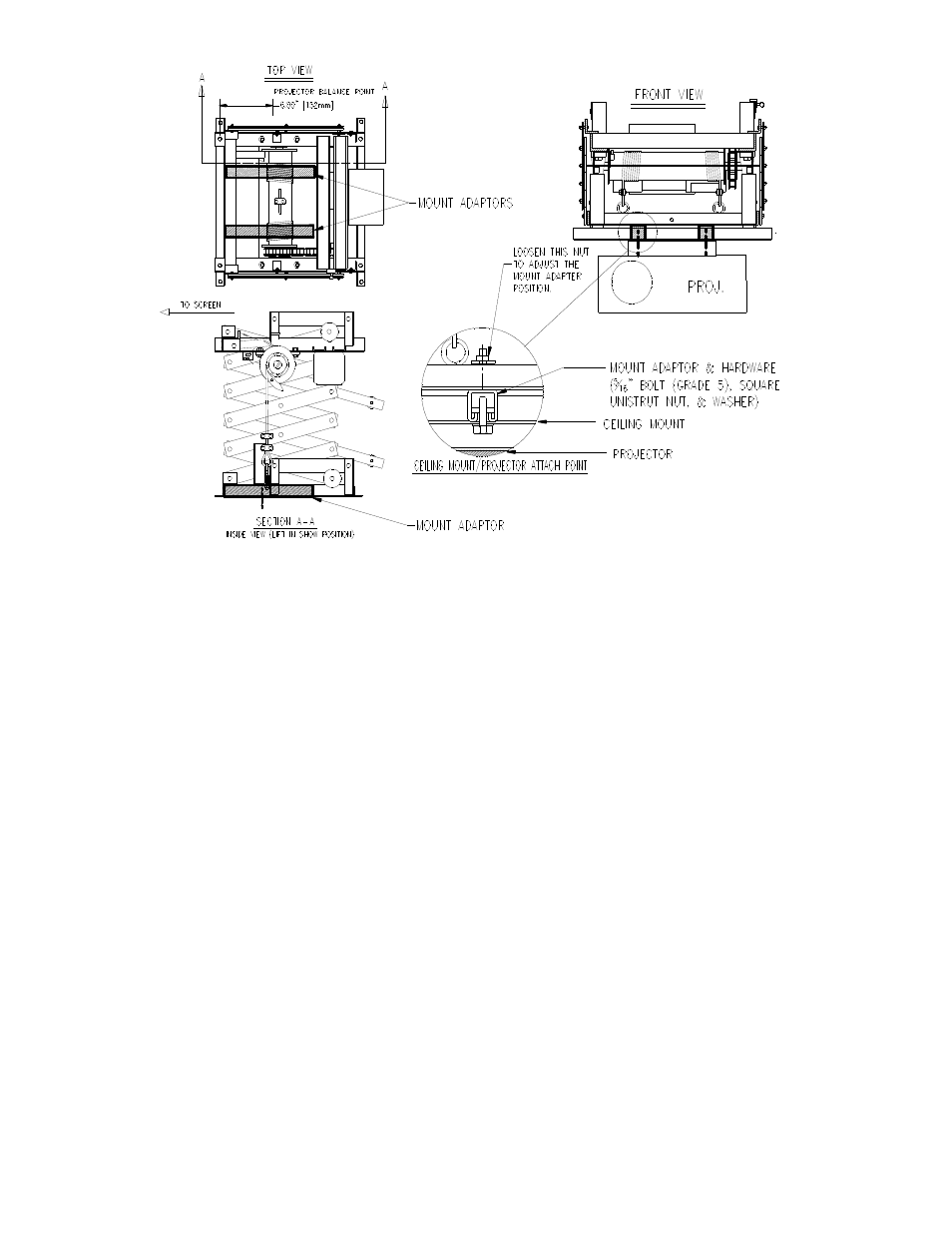

Figure 9. Projector Mounting
