When attaching the lift to a flat concrete ceiling, SVS suggest two (2) pieces of P1000T Unistrut (or equivalent)
approx. 10-feet (3.04 m) long, to be installed on the ceiling first. Proper spacing between the two pieces will be
based on the distance between the four (4) mounting holes of the lift as shown in Figure 3.spaced at 20.5-inches
(52cm) wide by 16.75-inches (42.5cm) deep.
You should use at least four (4) 1/2” bolts and anchors evenly spaced on each piece of Unistrut to distribute the
weight of the supporting structure. Attach the two lower pieces of Unistrut to the upper two pieces of Unistrut
using 1/2” threaded rods to the Unistrut, using Unistrut P3010 1/2” channel nuts in the channel, along with a
locking washer and nut below the channel to lock into place.
IMPORTANT
If an Accessory #2 Plenum Shroud is to be installed with the lift. Please read the Accessory Installation
Instructions before beginning your installation. The lift support structure will need to allow enough space
to install the mounting hardware for the Plenum Shroud.
SVS TL1 Lift Installation Instructions
Page 8 of 16

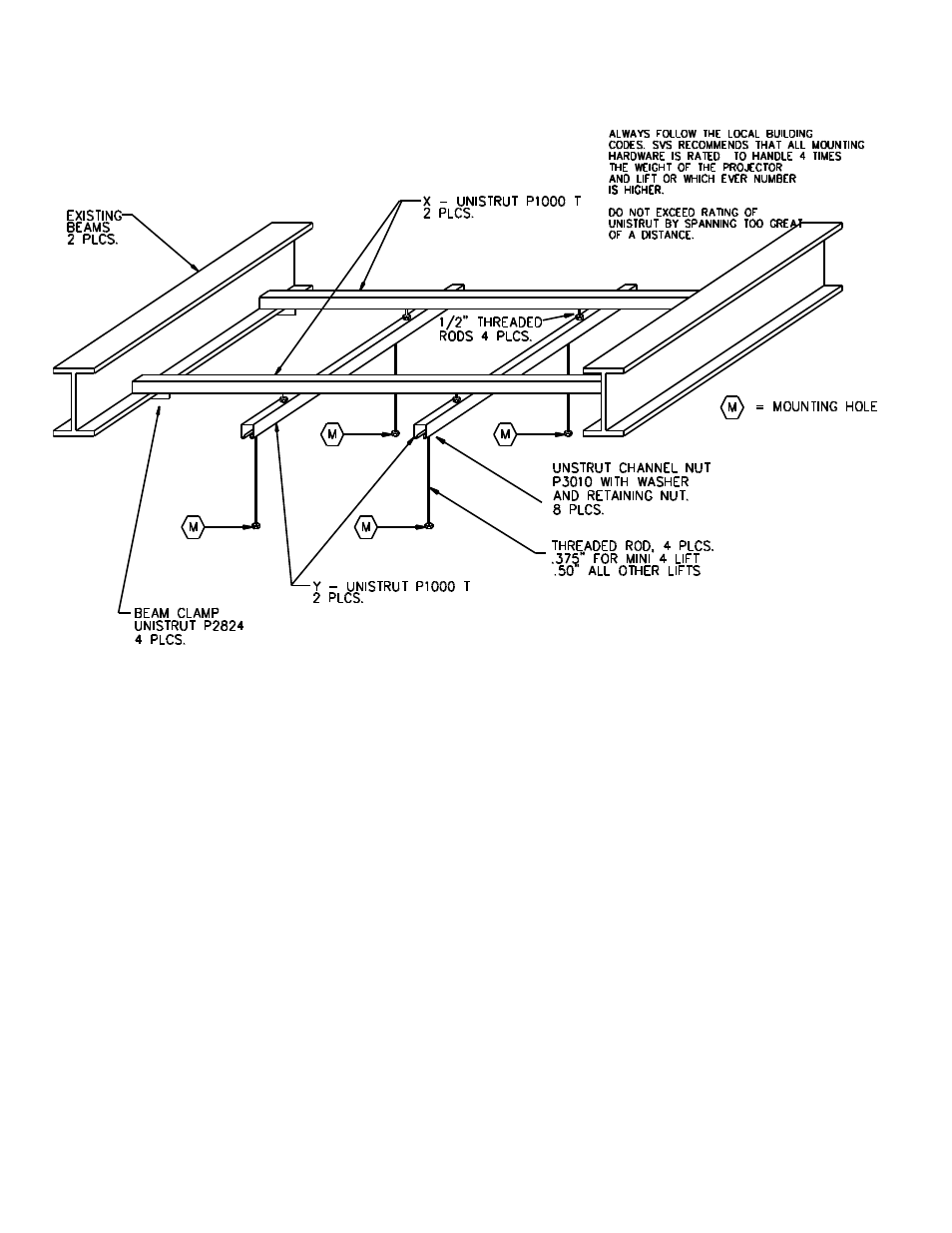

Figure 5b. Beam Ceiling Support Structure
