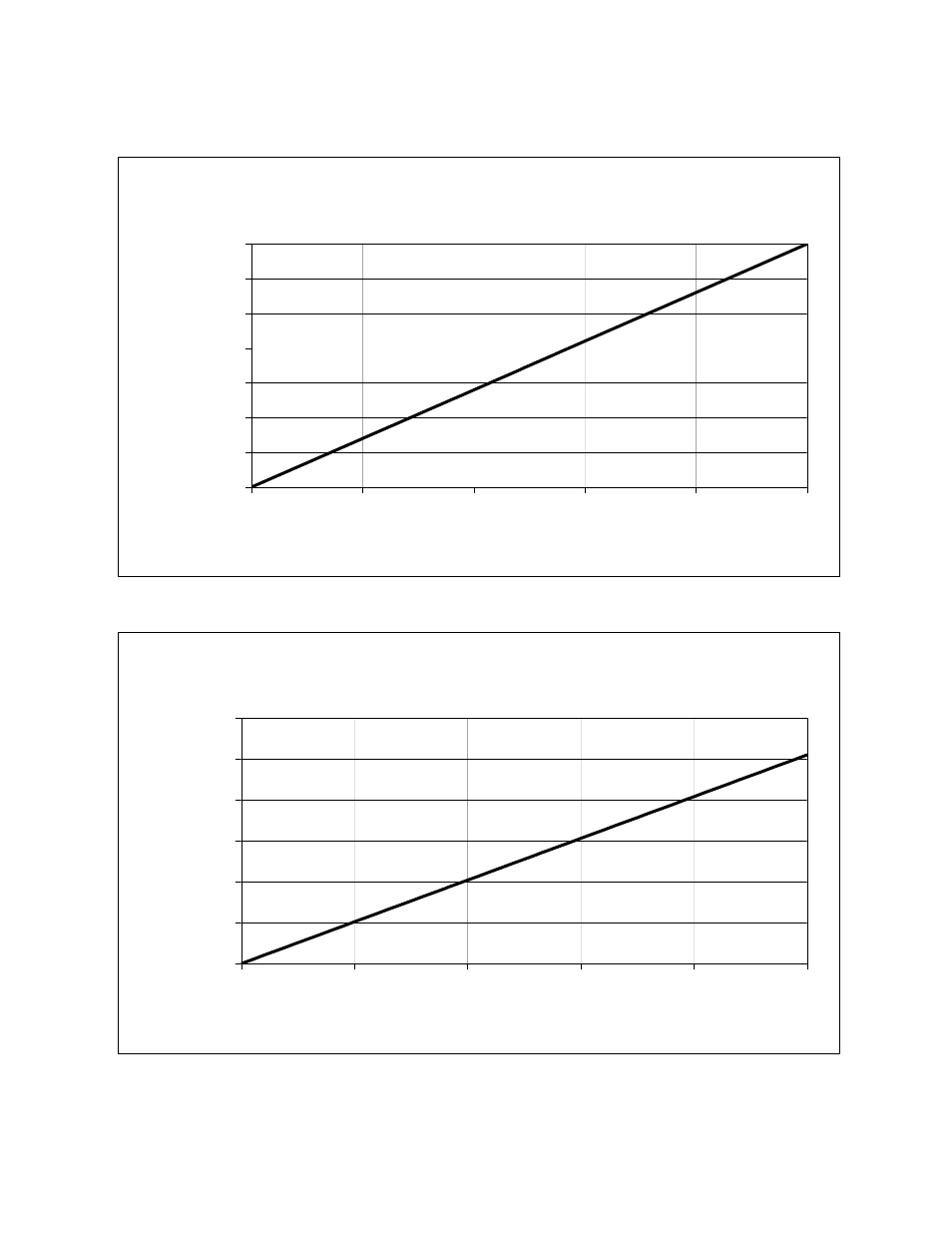

Proportional Bandwidth/Integral Rate Voltage (graphs)
Proportional Bandwidth as a Function of Voltage
1.00
3.00
5.00
7.00
9.00
11.00
13.00
15.00
0.00 1.00 2.00 3.00 4.00 5.00
Voltage at TP4
Proportional Bandwidth
°C
Integral Rate as a Function of Voltage
0.00
0.50
1.00
1.50
2.00
2.50
3.00
0.00 1.00 2.00 3.00 4.00 5.00
Voltage at TP5
Integral Rate
Repeats Per Minute
