TASCAM CD-601MKII
25
EXTERNAL CONTROL
Parallel Control
The CD player can be controlled on the parallel interface
from external equipment using the REMOTE (PARALLEL)
terminal (37-pin D-Sub connector) on the rear panel.

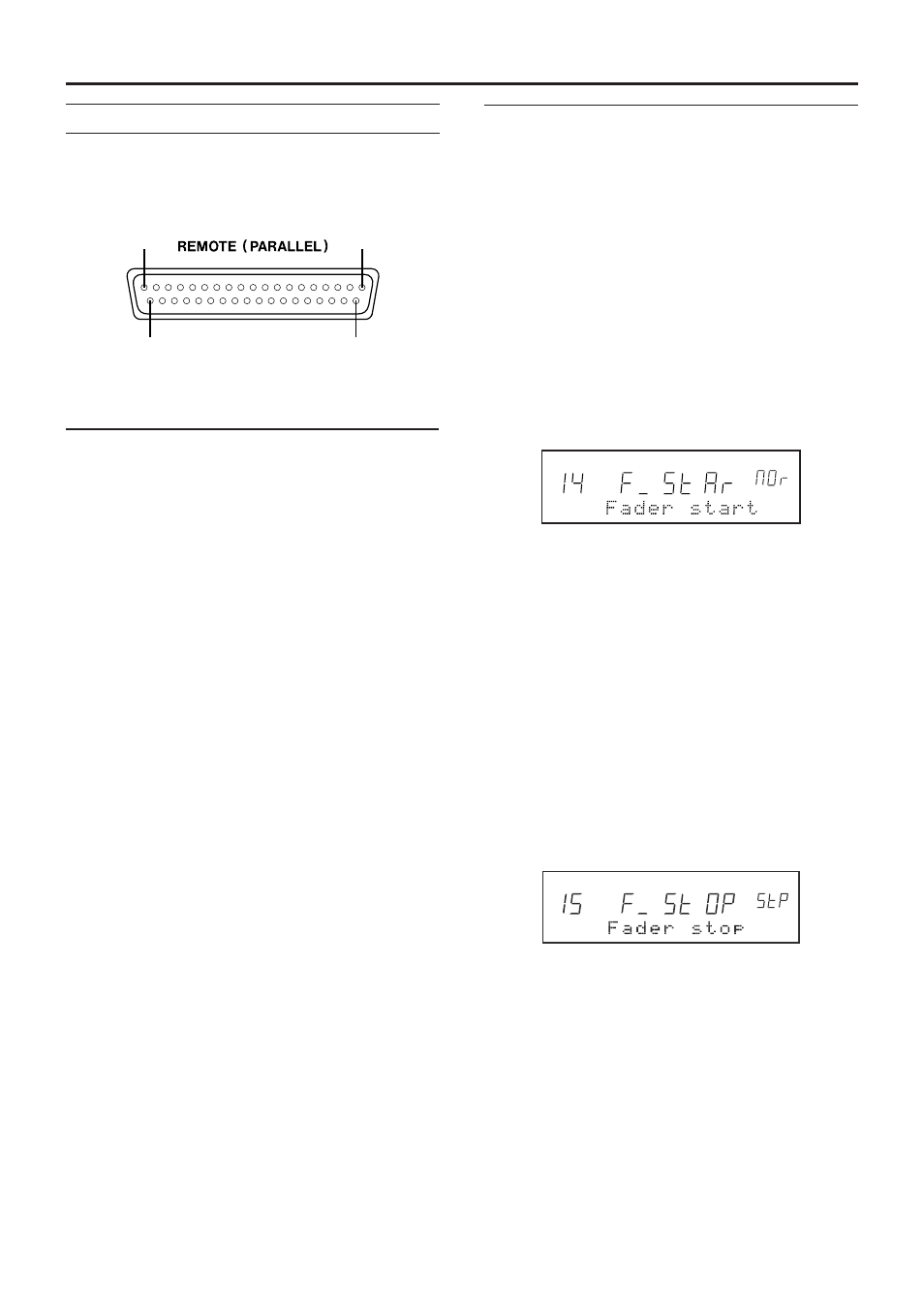

Pin Arrangement
Pin No. Signal Name IN/OUT
1 ON LINE PLAY IN IN
2 MONITOR PLAY IN IN
3 PAUSE IN IN
4 READY IN IN
5 STOP IN IN
6 TRACK SEARCH REV IN [ |<< ] IN
7 N.C –
8 TRACK SEARCH FWD IN [ >>| ] IN
9 SEARCH REV IN [ << ] IN
10 SEARCH FWD IN [ >> ] IN
11 MONITOR PLAY TALLY OUT
12 READY TALLY OUT
13 PAUSE TALLY OUT
14 STOP TALLY OUT
15 INDEX SERACH REV IN [ <- ] IN
16 INDEX SEARCH FWD IN [ -> ] IN
17 ON LINE PLAY TALLY OUT
18 FLASH READY IN IN
19 FLASH MODE IN IN
20 EOM OUT OUT
21 FADER START/STOP IN IN
22 ONLINE PLAY / MONITOR PLAY OUT OUT
23 TEN KEY 0 IN IN
24 TEN KEY 1 IN IN
25 TEN KEY 2 IN IN
26 TEN KEY 3 IN IN
27 TEN KEY 4 IN IN
28 TEN KEY 5 IN IN
29 TEN KEY 6 IN IN
30 TEN KEY 7 IN IN
31 TEN KEY 8 IN IN
32 TEN KEY 9 IN IN
33 STOP/READY OUT OUT
34 FLASH READY TALLY OUT
35 FLASH MODE TALLY OUT
36 GND –
37 +5 V –
Parallel control I/O specifications
Input : +5 V pull-up, Low Active, 50 ms or more
Output : Open collector, 20 mA max.
+5 V (pin No. 37) max. current: 100 mA
Setting fader start/stop
Fader start/stop is possible by connecting the No. 21 pin
(FADER START/STOP IN) and No. 36 pin (GND) of the
REMOTE (PARALLEL) terminal to the external interface.
At a fader start, the CD player enters the online playback
mode.
To start/stop the CD player from an external fader, set the
following menu items.
Setting fader start
Set the polarity using menu No. 14 (“F_STAR”).
NOR (NORMAL): Low Active. The CD player starts when
the input signal is switched from High to Low.
REV (REVERSE): High Active. The CD player starts when
the input signal is switched from Low to High.
Setting fader stop
Set the state of the CD player at stop operation using menu
No. 15 (“F_STOP”).
STP (STOP): The CD player stops.
RDY (READY): The CD player enters the online READY
mode.
PUS (PAUSE): The CD player enters the monitor PAUSE
mode.
CUE: The CD player returns to the cue point (point at fader
start), and enters the online READY mode.
INC (INCREMENT): The CD player enters the online
READY mode at the start of the next track.
PLY (PLAY): Online playback is continued.
1
20
19
37
