12
TM

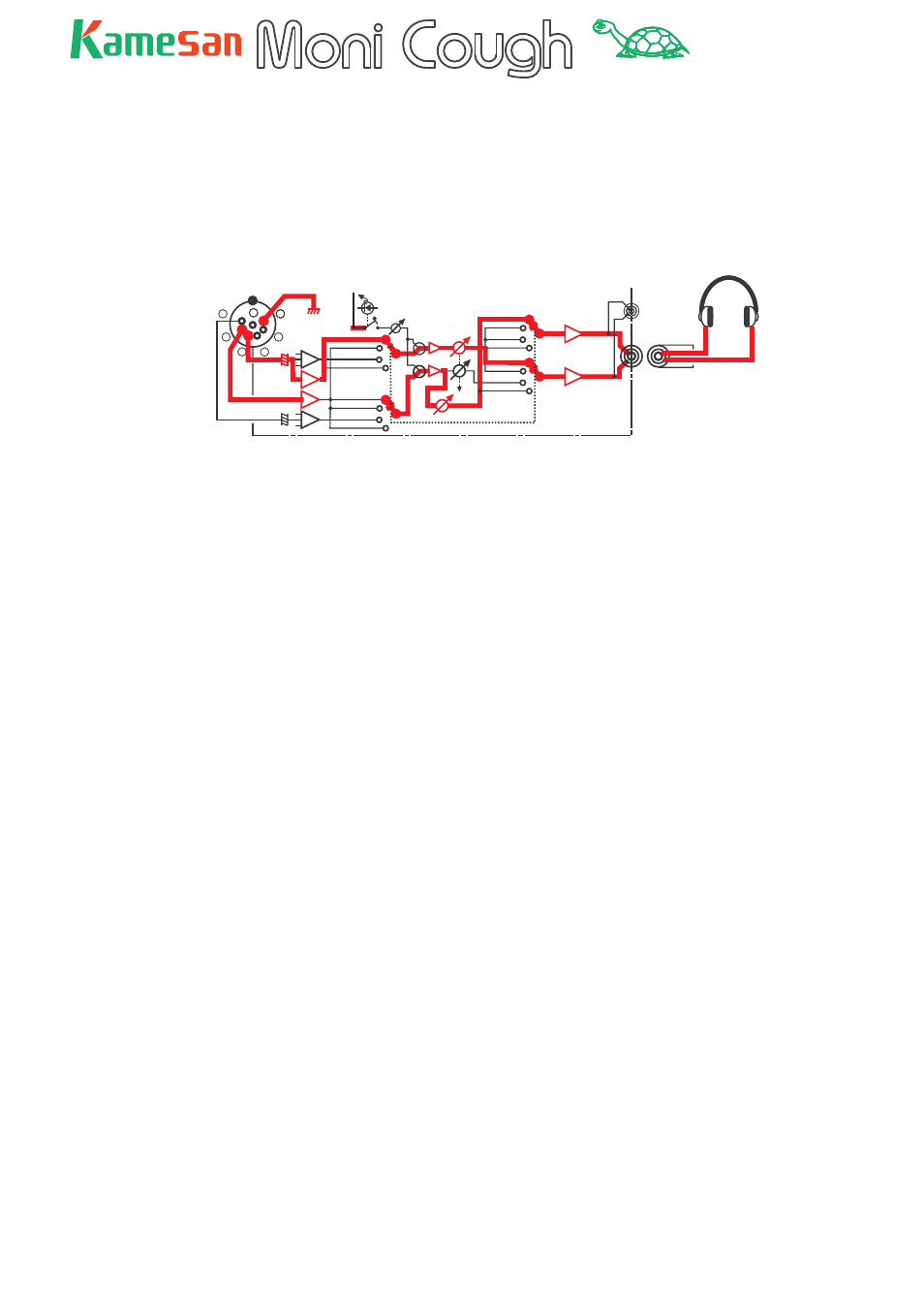

CC 2
: This stands for Clear- Com, type 2, where two signals are
received and fed independently to the left and right headphone
channels.
Use the INT/A control to adjust the level of the Clear- Com 2-A
signal, and the UNINT/B control to adjust the level of the Clear-
Com 2-B signal.
5
6 7
4 3
2
1
MONI (IFB ) / TB
R ch
SIDE TONE
Clear-Com 2-A
Clear-Com 2-B
NON INTERRUPT,B
LINE
INTERRUPT,A
L R
BA
BA
BAL
BAL
BA
BA
L ch (2ch,TR-532 )
for Clear-com
Using 2 pots
Clear-Com 2-A
Clear-Com 2-B
( -15dB/10K )
These signals are at –15 dB and with an impedance of 10 k
Ω
.
