Model 308, Tube Squaring Machine
92-0628 : Rev. 961122
COLLETS ADAPTER KITS

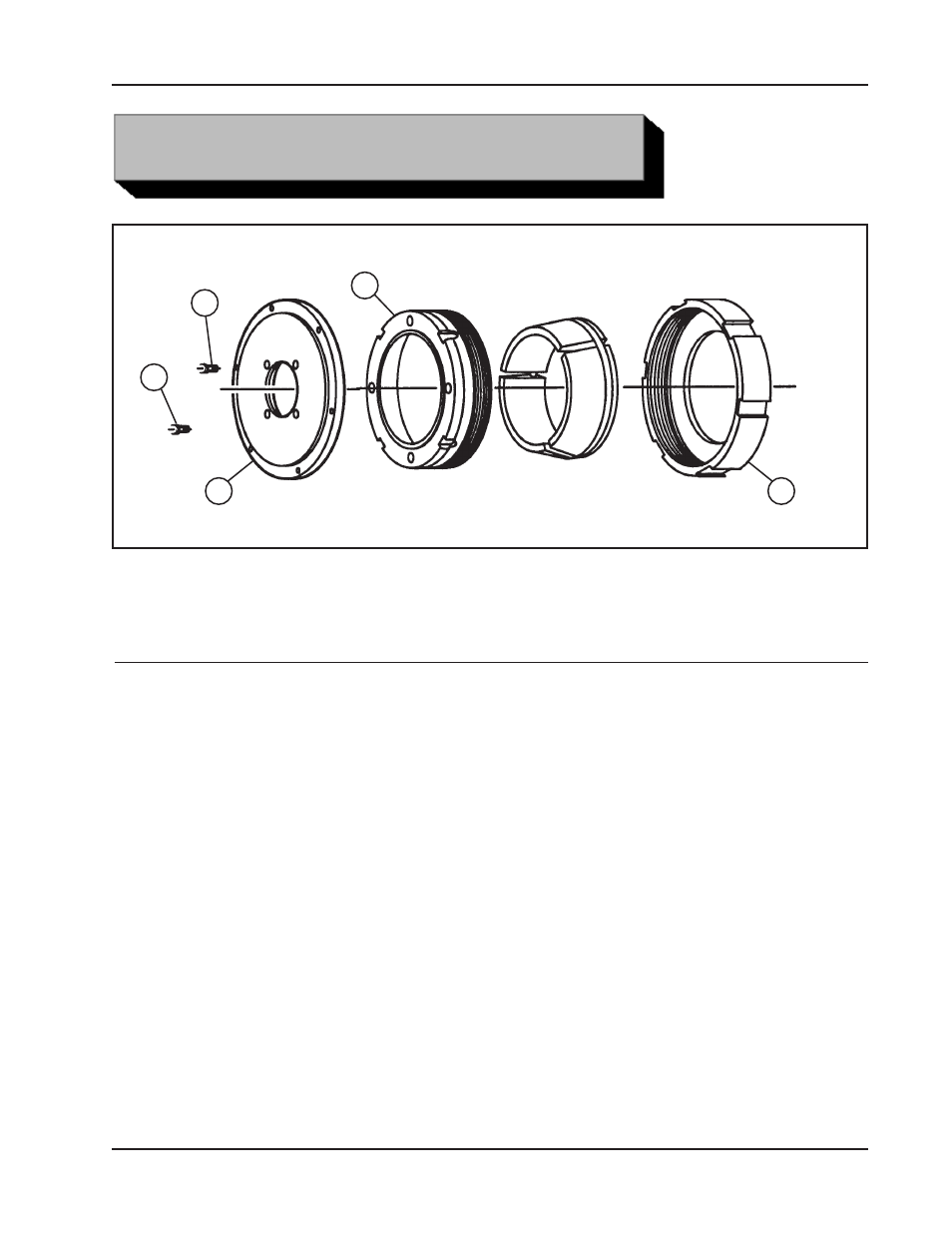

400 Series Collet Adapter (P/N 05-0236)
Item Part
No. No. Description Qty
NOT SHOWN:
400 SERIES COLLET ADAPTER KIT
1
2
3
4
5
1. 27-0104 ADAPTER, COLLET, 400 SERIES 1
2. 27-0224 ADAPTER 1
3. 33-0054 SCREW, CAP, 5/16-18 X 3/4", ZP 4
4. 33-0057 SCREW, CAP, 5/16-18 X 1 1/4", ZP 6
5. 35-0158 NUT, COLLET, 400 SERIES 1
32-0274 PIN 1
36-0077 WRENCH, SPANNER 1
