Tri Tool 308 Tube Squaring - Manual (Page 33)

33
Model 308, Tube Squaring Machine
92-0628 : Rev. 961122
ADAPTER KIT, SADDLE

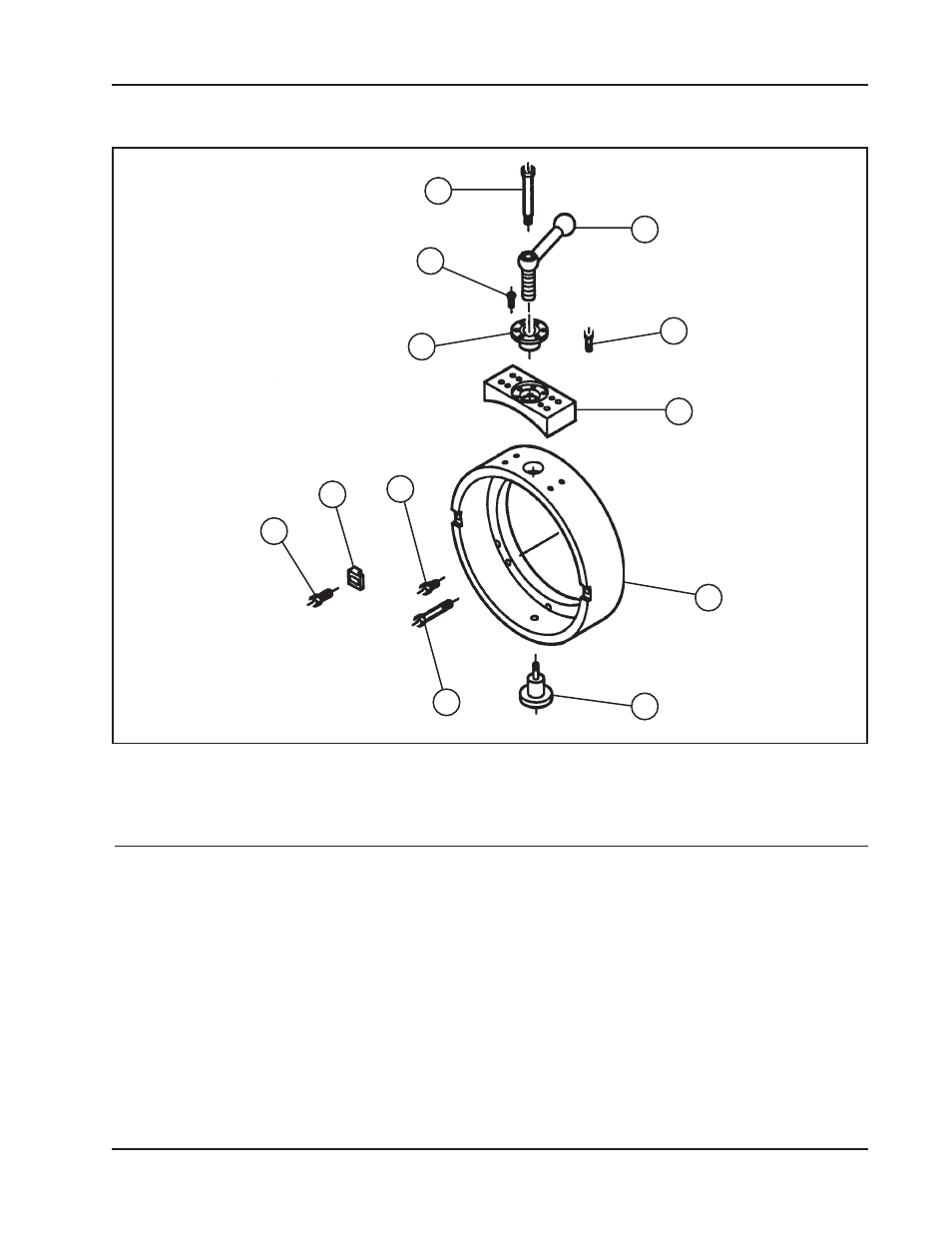

Parts List, Adapter Kit, Saddle (P/N 05-0245)
Item Part
No. No. Description Qty
8
11
1
10
7
9
3
2
6
4
12
5
1. 27-0537 ADAPTER, RING 1
2. 27-0539 ADAPTER, MOUNT 1
3. 33-0056 SCREW, CAP, 5/16-18 X 1", ZP 4
4. 33-0069 SCREW, CAP, 3/8-16 X 3/4", ZP 6
5. 33-0071 SCREW, CAP, 3/8-16 X 1", ZP 2
6. 33-0077 SCREW, CAP, 3/8-16 X 2 1/2", ZP 2
7. 33-0287 SCREW, BUTTON, 1/4-20 X 3/4" 6
8. 33-1970 SCREW, SHLDR, 1/2 DIA X 3" 1
9. 41-0128 HANDLE ASSY, ADJUST 1
10. 42-0163 KNOB, ADJUST 1
11. 45-0249 BUSHING 1
12. 47-1087 BRACKET, RETAINING 2
