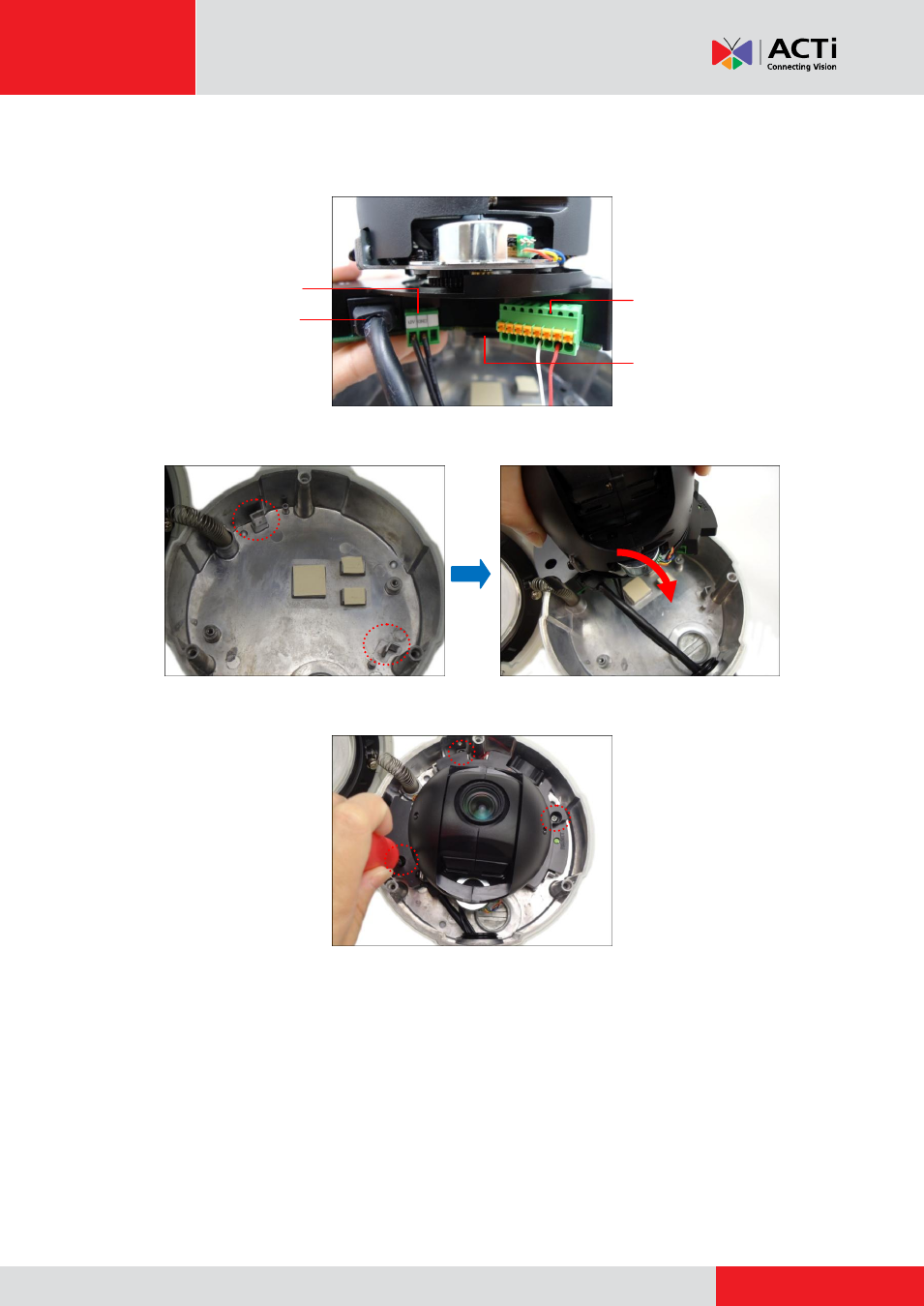

10. Connect the network cable to the Ethernet port and other cables (if any) to the corresponding
connectors on the camera. If necessary, install also the memory card at this point.
11. Align the camera module to the guide on the housing.
12. Tighten the three (3) screws to secure the camera module to the housing.
13. Proceed with Step 4: Install the Camera to the Surface on page 15.
Ethernet Port
Digital Input / Output (DI/DO)
and Audio Input / Output
Connector
12V Power Connector
Memory Card Slot
