5
Pro Series Skimmer Installation
EXCAVATING AND SETTING THE SKIMMER
Prior to setting the skimmer you must first determine the surface level of the water in the
pond. Once you have this number you can excavate for the Skimmer. The excavation should
be a few inches wider and longer than the Skimmer body. Find your model number below to
determine the approximate depth of the hole.
Do not dig too deep. The skimmer should be set on undisturbed earth if possible. In the
case that you over-dig, be sure to compact the soil thoroughly to prevent settling. The bottom
of the hole should be level side-to-side and front-to-back.
16 - 17” PS4600
18 - 19” PS7000
24 - 25” PS15000

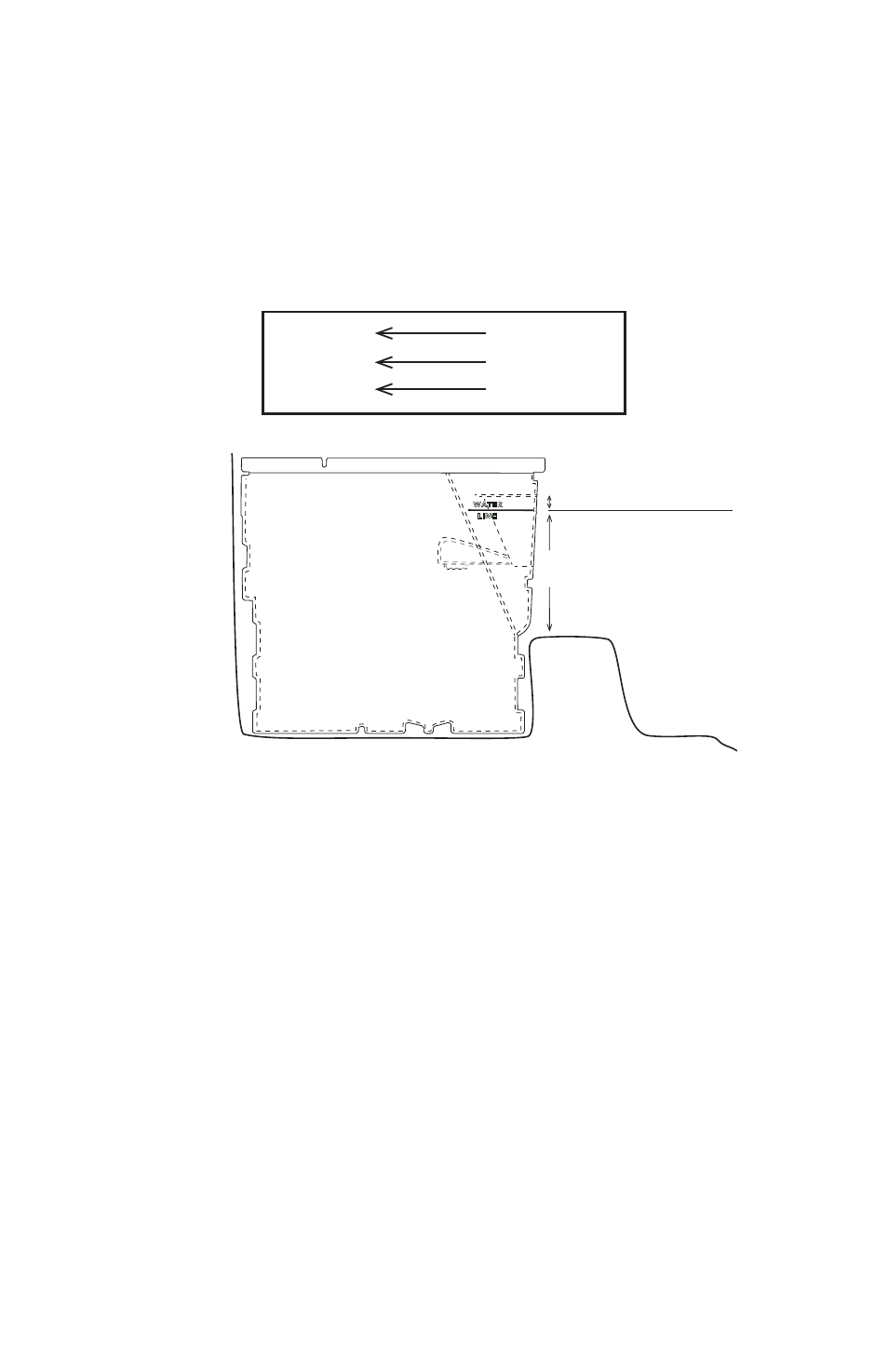

Figure 5.
WATER
LINE
WATER LEVEL
10” MIN
1 ¼” -1 ½”
Place the Skimmer enclosure into the excavated hole. Check the top of the enclosure to
make sure that it is level front-to-back and side-to-side. Check where your pre-determined
water level falls on the face of the Skimmer enclosure. The water level needs to be between
1¼” and 1 ½” below the top of the weir door opening and even with the water level indicator
molded on the side of the Skimmer. (PS15000 only)
Make sure that any unexcavated soil that is left in front of the Skimmer is at least 10” below
water level (See Figure 5). This will ensure that there is enough room for the weir door to be
installed and function properly.
Before you go any further into the Skimmer installation, place a few stones inside the
Skimmer enclosure to weigh it down and keep it from moving. Install the solid support bar(s)
and begin backfilling. The support bar(s) must be in place for the enclosure to retain its shape
during the backfilling process. Loosely backfill the enclosure on all sides, lightly compacting as
you go. Do not over-compact the soil. Aggressive compaction may deform the enclosure and
cause components to fit improperly.
ATTACHING THE LINER
Hold the liner up against the face of the Skimmer, allowing a minimum of 2” to extend above
the top of the enclosure. Leave some slack in the liner below the weir opening. This will help
avoid any future strain on the liner connection.
Make sure that the front surface of the Skimmer and the back side of the liner are clean and
free of debris.
