Model 7160 HD/SD/ASI/310 Protection DA
ASI Status Menu

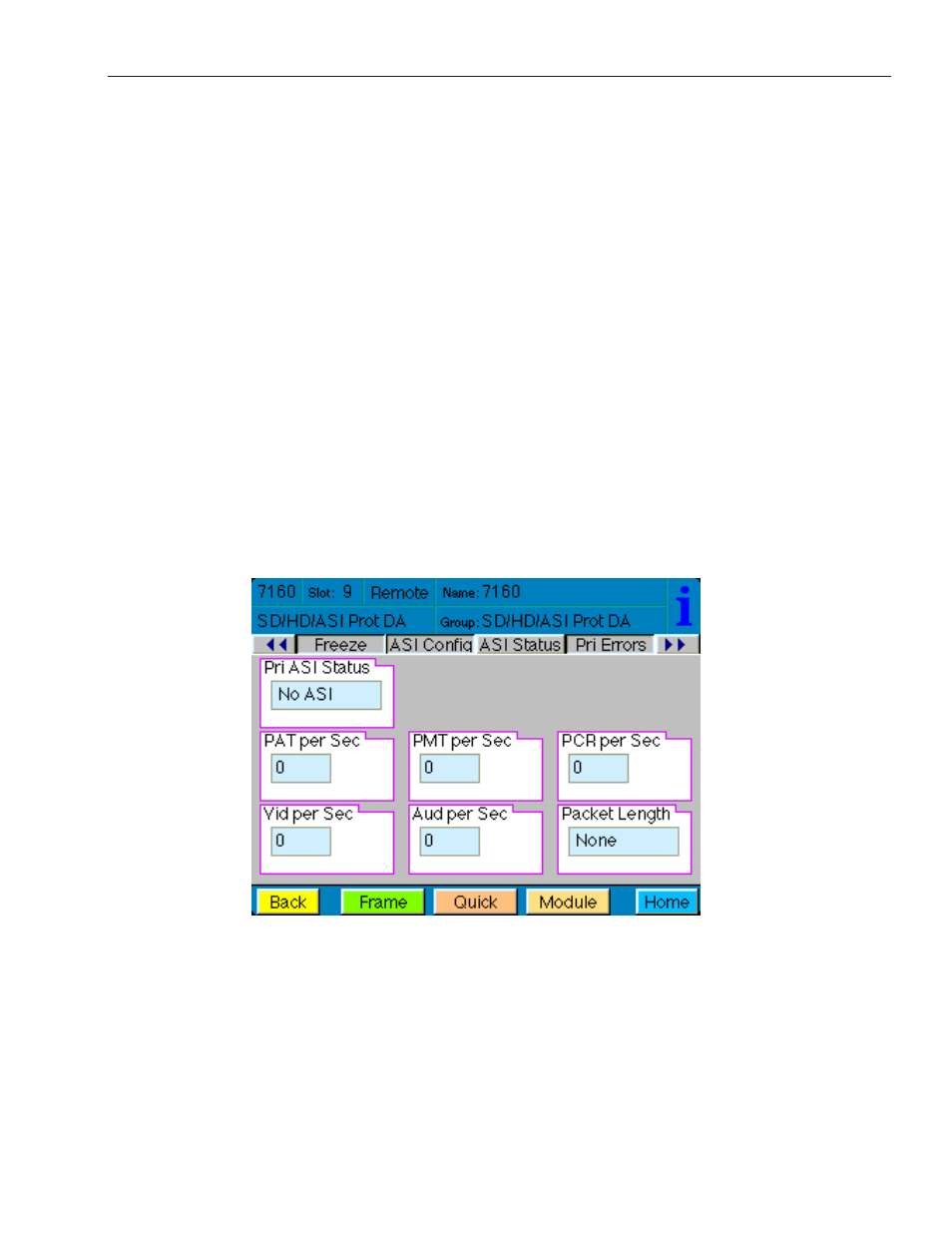

The ASI Status menu is used for both DVB-ASI and SMPTE 310M signals. The ASI Status menu shown
below displays the status of the following parameters:
Pri ASI Status • – displays the status of the Primary input and can be monitored with the
Avenue PC alarm function.
PAT per Sec • – displays the number of Program Allocation Tables detected per second for the
Primary input.
PMT per Sec • – displays the number of Program Management Tables detected per second for
the Primary input.
PCR per Sec • – displays the number of Program Clock References detected per second for the
Primary input.
Vid per Sec • – displays the number of video PIDs detected per second for the Primary input.
Aud per Sec • – displays the number of audio PIDs detected per second for the Primary input.
Packet Length • – displays the detected packet length per second for the Primary input.
