8939FCA/FCB — Instruction Manual 27
Configuration and Monitoring
Configuration and Monitoring
The 8939FCA and 8939FCB modules require no configuration and as they
are passive modules. They are only monitored for their presence in the
frame, slots 3, 4, 7, and 8 in this example shown in
Figure 12 .

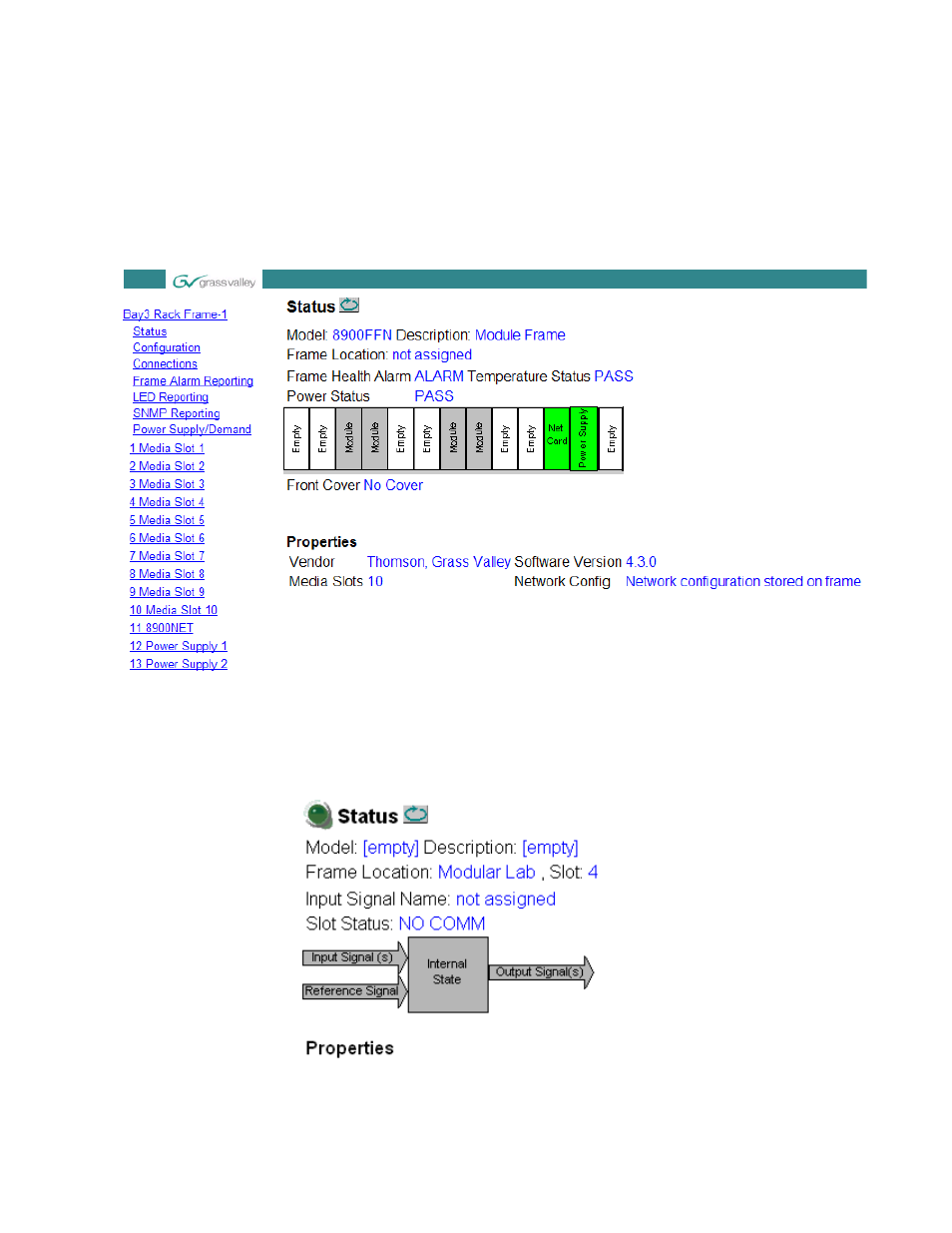

Figure 12. 8939FCA/FCB Presence in Frame
Selecting the link to the 8939 module web page will report an empty slot as
shown for the module in slot 4 shown in
Figure 13 .
Figure 13. 8939FCA Module Web Page
