8949MDA-CXF/-SXF — Instruction Manual
13
Installation
Module Placement in the GeckoFlex Frame
There are ten rear and front slot locations in the 2 RU frame to accommo-
date audio/video modules (
). The 8949MDA-CXF/-SXF module
set may be plugged into any one of the available GeckoFlex frame slots. The
module requires a single rear slot.
Note
Use anti-static precautions when handling the module. As the module can be
changed when the GeckoFlex is powered on, before removing the cover,
please put an anti-static bracelet tied to a metal part of the frame.

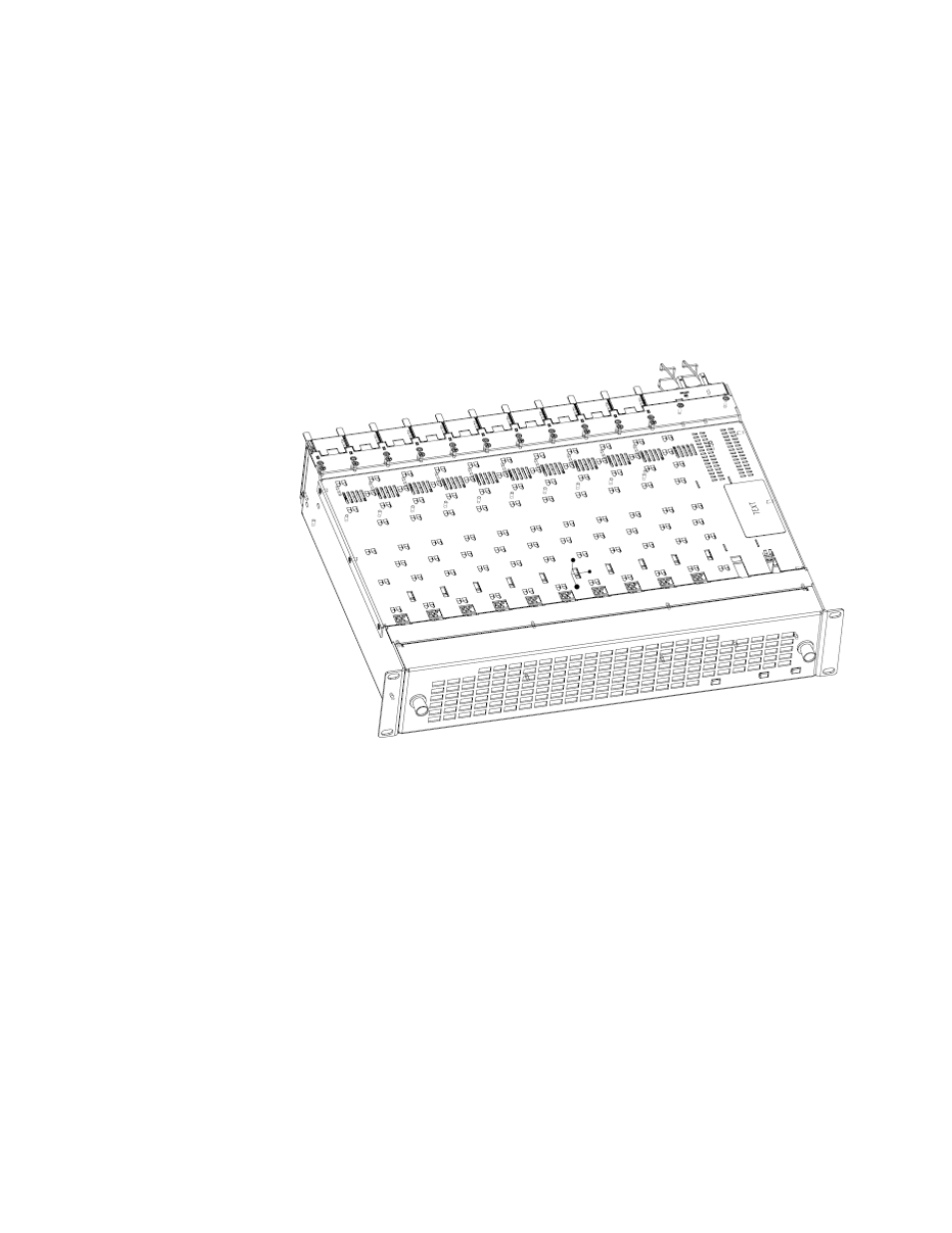

Figure 3. GeckoFlex Frame
