38 8949MDA-CXF/-SXF — Instruction Manual
Configuration

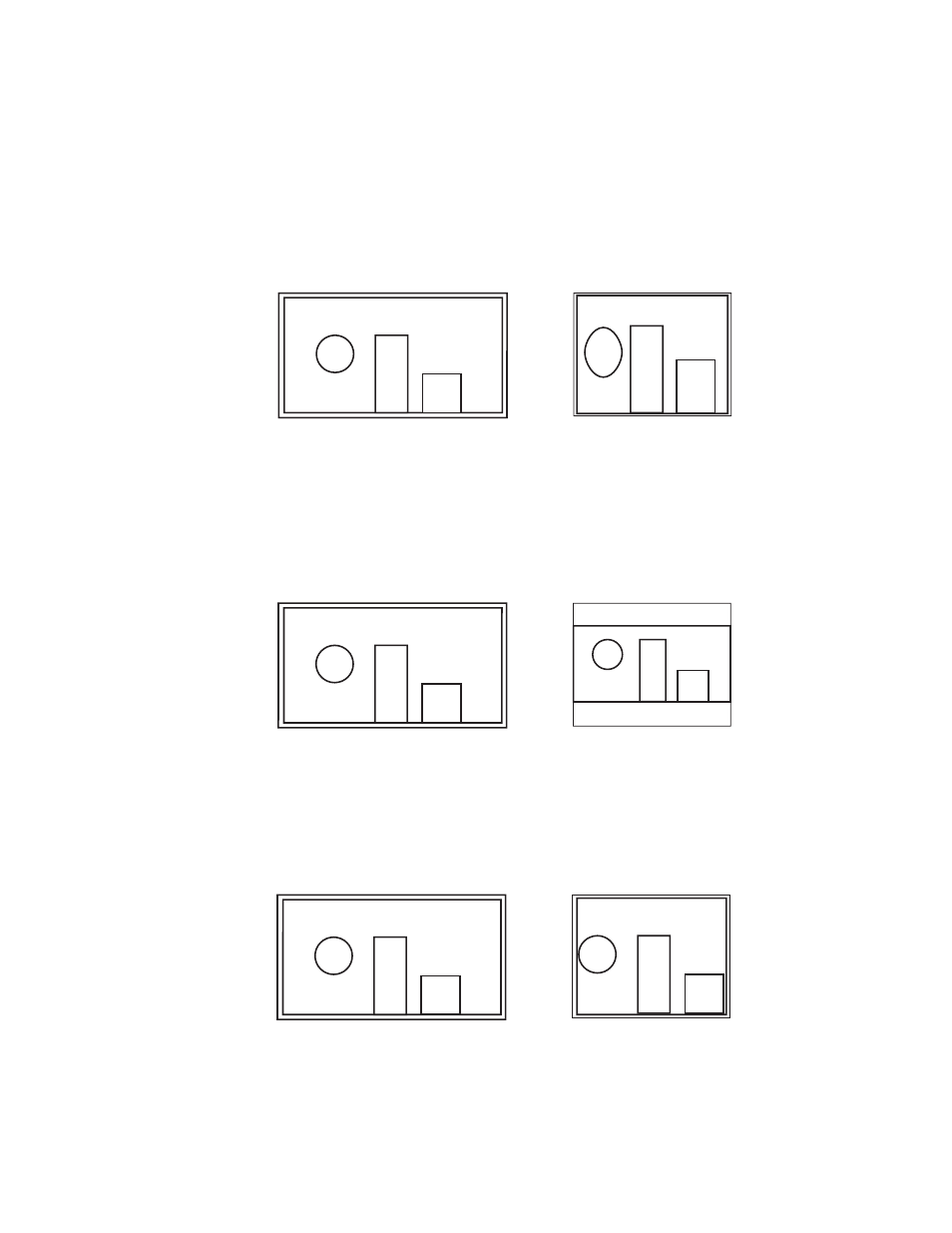

• Aspect Ratio – this pulldown allows selection of one of four aspect ratio
conversions on the downscaled HD electrical outputs. (This control has
no effect on SD downscaled outputs.):
• Anamorphic – this mode converts a 16x9 HD image to a 4x3 SD image.
Shapes are not preserved causing them to stretch vertically as
shown in
Figure 22 .
Figure 22. Anamorphic Aspect Ratio
• Letterbox – this mode maintains a 16x9 SD image centered in the
middle three-quarters of the screen with black horizontal bars
above and below the picture. Shapes are preserved in this mode as
shown in
Figure 23
Figure 23. .Letterbox Aspect Ratio
• 4x3 Center Cut – this mode is a 4x3 image that fills the screen, cutting
off one-quarter of the horizontal image and one-eighth of each side.
Shapes are preserved as shown in
Figure 24 .
Figure 24. 4x3 Center Cut Aspect Ratio
Anamorphic on 4x3 Monitor 1080i on 16x9 Monitor
8563_04
r0
Letterbox on 4x3 Monitor 1080i on 16x9 Monitor
8563_05
r0
4x3 Center Cut on 4x3 Monitor 1080i on 16x9 Monitor
8563_06
r0
