Acappella — Instruction Manual 19
Hardware Description

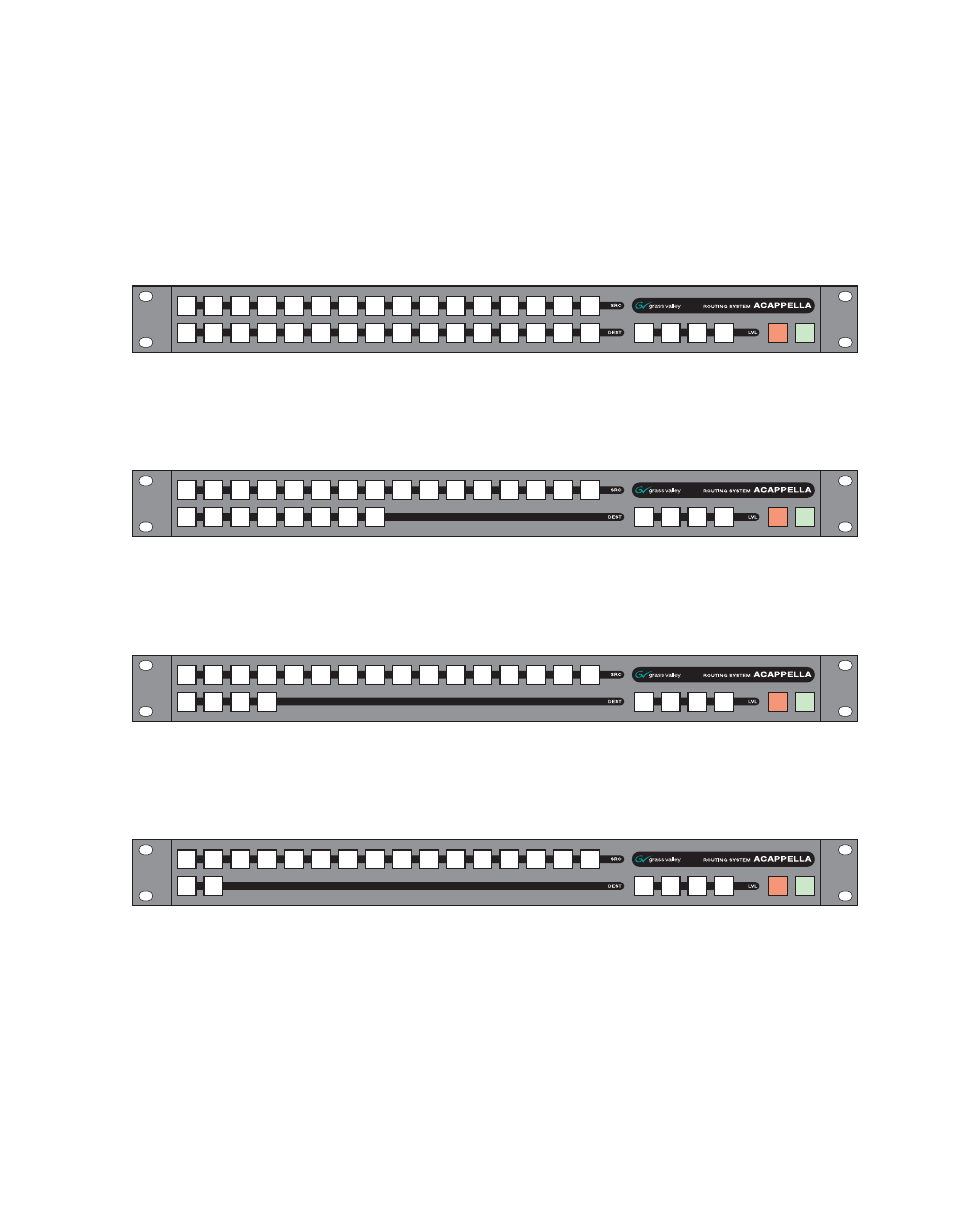

All panel fronts (except frames with no Local Panel) will have four Level
buttons, a green Enable button, and a red Protect button. The number of
Source and Destination buttons will change depending on the frame’s con-
figuration for local panels and the desired configuration for remote panels.
Figure 2 is a panel with 16 Sources and 16 Destinations.
Figure 2. 16x16 Front
8300_00_08r0
Figure 3 is a panel with 16 Sources and 8 Destinations.
Figure 3. 16x8 Front
8300_00_09r0
Figure 4 is a panel with 16 Sources and 4 Destinations.
Figure 4. 16x4 Front
8300_00_10r0
Figure 5 is a panel with 16 Sources and 2 Destinations.
Figure 5. 16x2 Front
8300_00_11r0
