30 Acappella — Instruction Manual
Section 2 — Installation
Remote Panel Rack Installation
Remote panel rack mounting is straightforward and requires no special
tools or adaptors. Simply position the Remote Panel in the rack and secure
the panel in place. Refer to
Figure 30 .

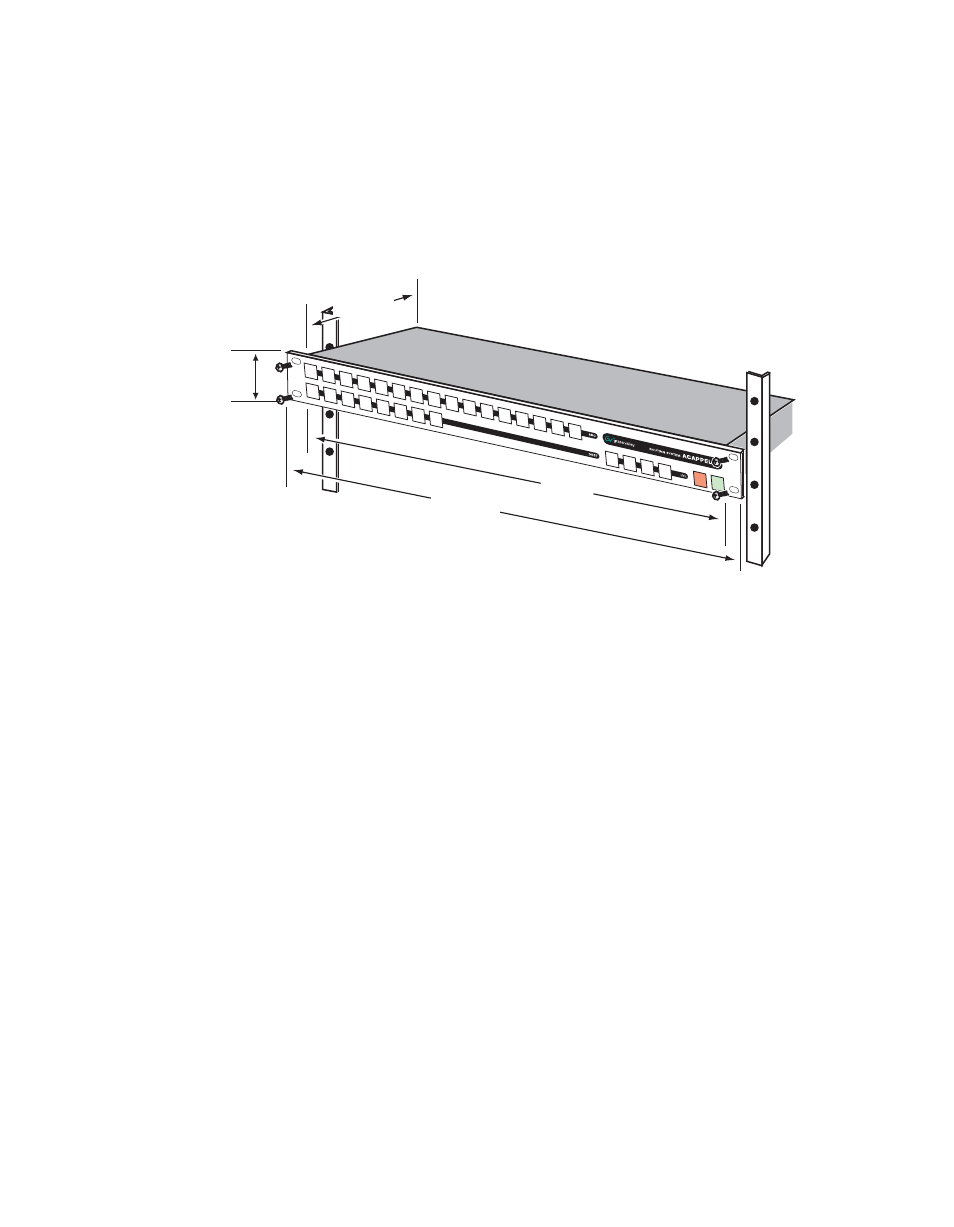

Figure 30. Rack Mount Remote Panel Installation
8300_00_48
r0
Measurements do not include clearance for cables.
44 mm
1.75 in.
432 mm
17 in.
106 mm
4.18 in.
483 mm
19 in.
A rear frame support kit is available as an option (ACAP24RACKKIT).
