Acappella — Instruction Manual 23
Hardware Description
The empty configuration shown in Figure 17 is used on systems that have
audio with no video.

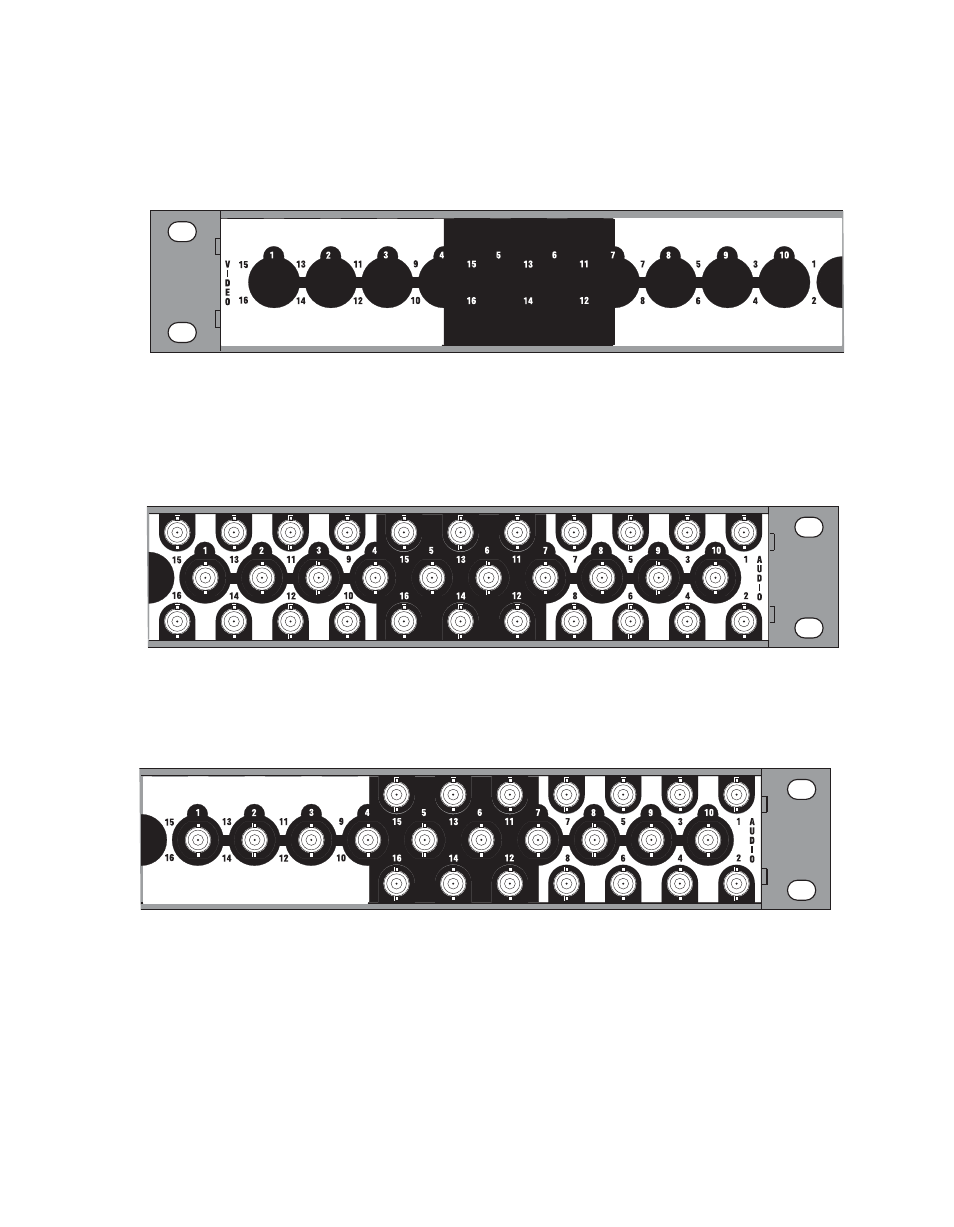

Figure 17. Empty Video Backplane
8300
00
35
Digital Audio Configuration
The configuration shown in Figure 18 is 16 Inputs by 16 Outputs of single
stream digital (AES) audio.
Figure 18. 16x16 Audio Single Stream BNC Backplane
8300_00_26
The configuration shown in Figure 19 is 16 Inputs by 8 Outputs of single
stream digital (AES) audio.
Figure 19. 16x8 Audio Single Stream BNC Backplane
8300_00_27
