Acappella — Instruction Manual 35
Acappella Cabling

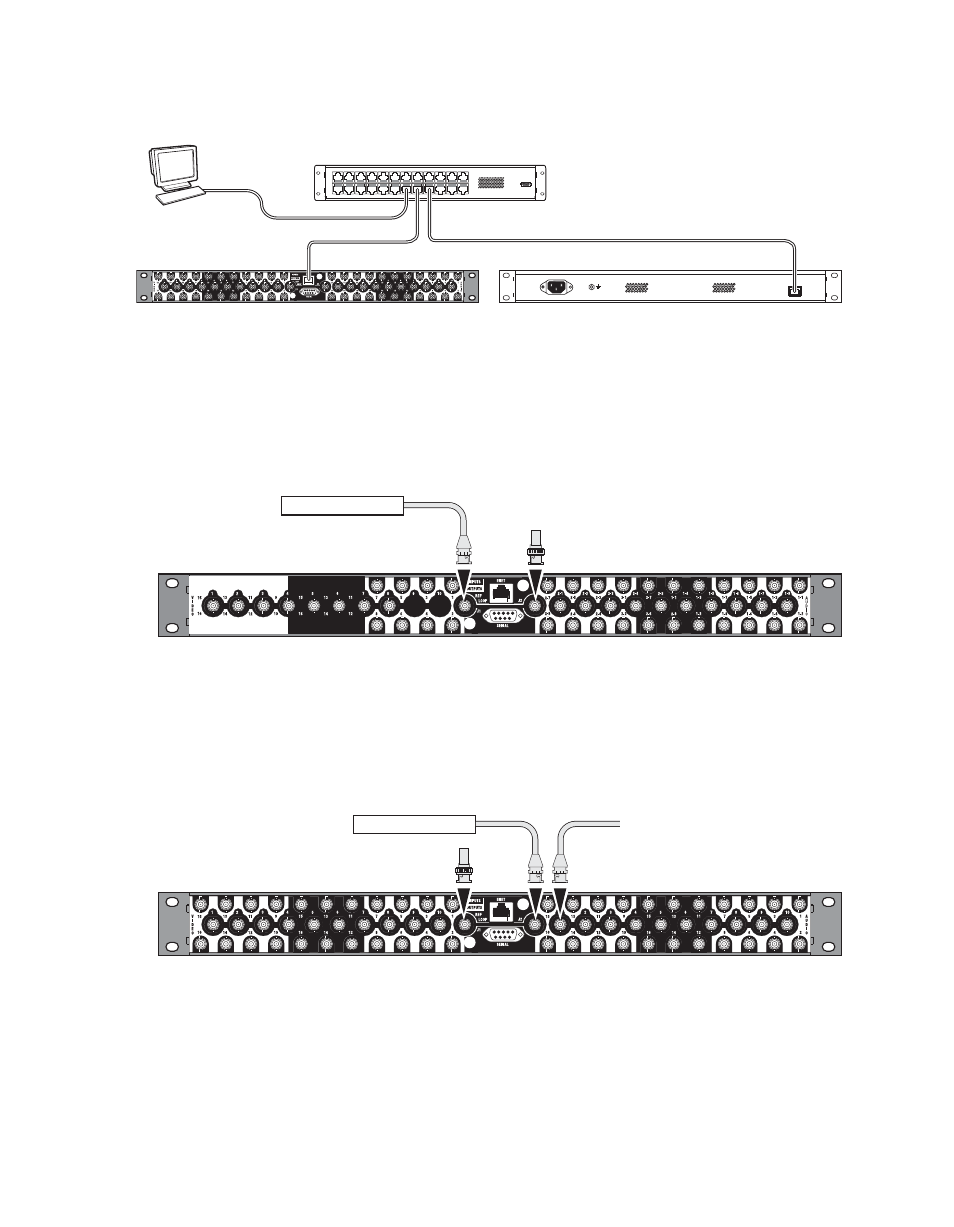

Figure 35. Ethernet Cabling
8300_01_44
Acappella Remote Control Panel
Ethernet Switch
PC-compatible
Reference Cabling
Reference signals are loop-thru with the end of the chain terminated. Color
Black or Tri-Level Sync signals are used. The Reference shown in
Figure 36
is the default cabling for plug and play.
Figure 36. Video Reference Connections
8300_00_50
75 ohm
Terminator
Reference Generator
See Router Reference Configuration Page on page 73 to select AES Src 1
instead of the Color Black or Tri-Level Sync Reference. Web Page configu-
ration is required
In Figure 37 a Continuous AES Signal is connected to Audio Input 1.
Figure 37. Reference Signal Cabling Option for Single Stream Audio
8300_00_39
75 ohm Terminator
Reference Generator AES Signal
