22
Component Detailed Description
Camera Unit Rear Components
Area B - Audio/Intercom Connector Panel

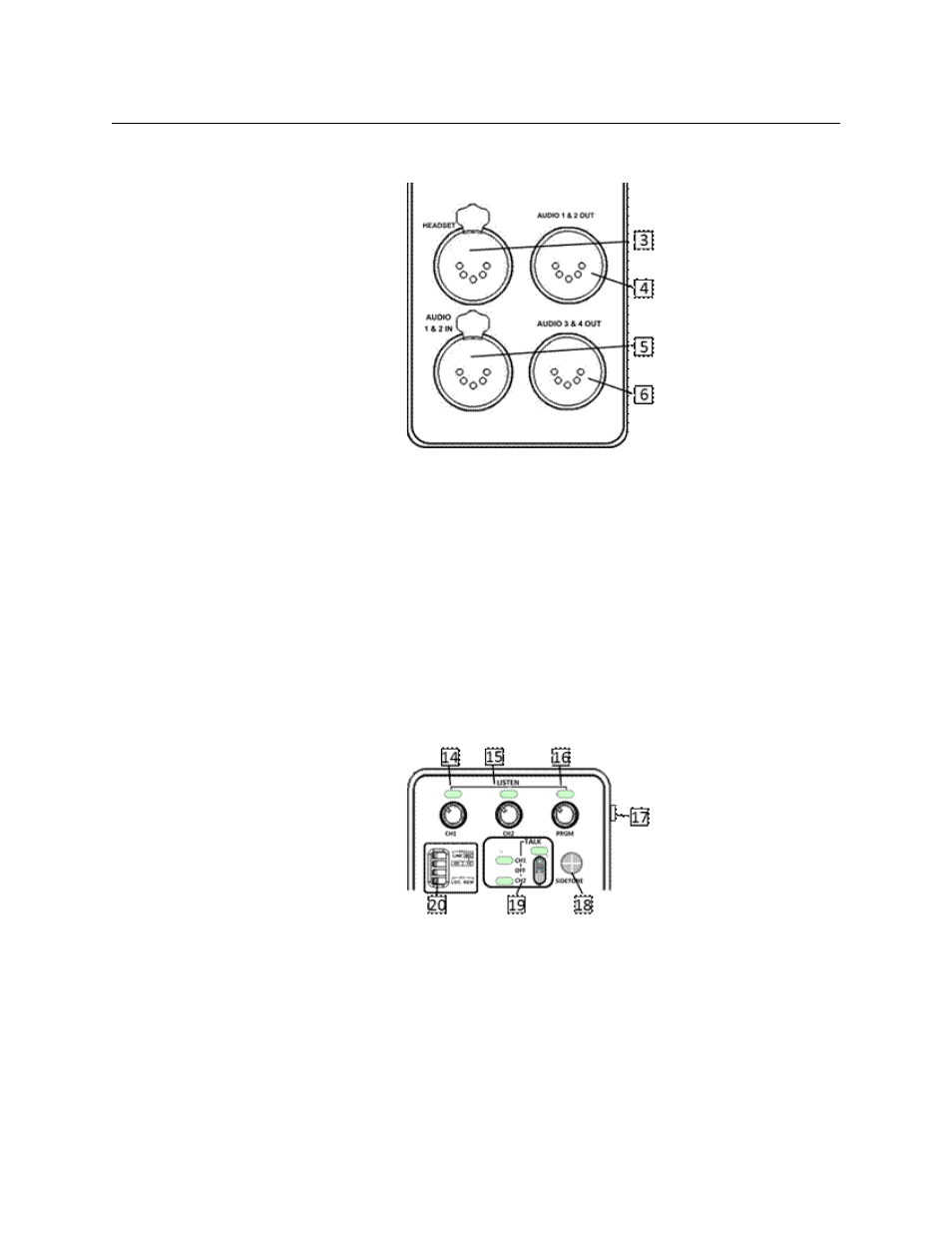

Fig. 3-10: Audio/Intercom Connector Panel
• 3- Intercom Head Set Connector
• 4 - Audio 1 & 2 Output (from Base Station): typically for return audio from the Base
Station
• 5 - Audio 1 Input (Line Level) - (to Base Station): typically for audio program from
camera line outputs
• 6 - Audio 2 Input (Line Level) - (to Base Station): typically for audio program from
camera line outputs
For information on the Audio/Intercom Connector Panel operation, see Understanding
Intercom Usage with the CopperHead 3400 on page 66.
Area C - Intercom Controls
Fig. 3-11: Intercom Controls
• 14 - Intercom 1 Monitor Level Control and Activity Indicator
• 15 - Intercom 2 Monitor Level Control and Activity Indicator
• 16 - Return Program Monitor Level Control and Activity Indicator
• 17 - Intercom & Return Program Output: Mini-phone jack with no microphone
functionality
